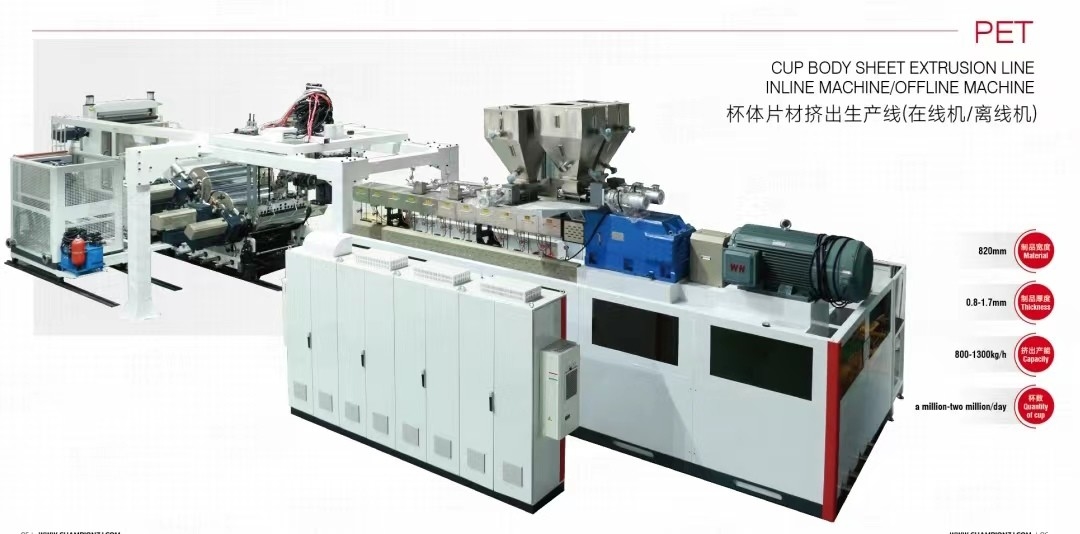

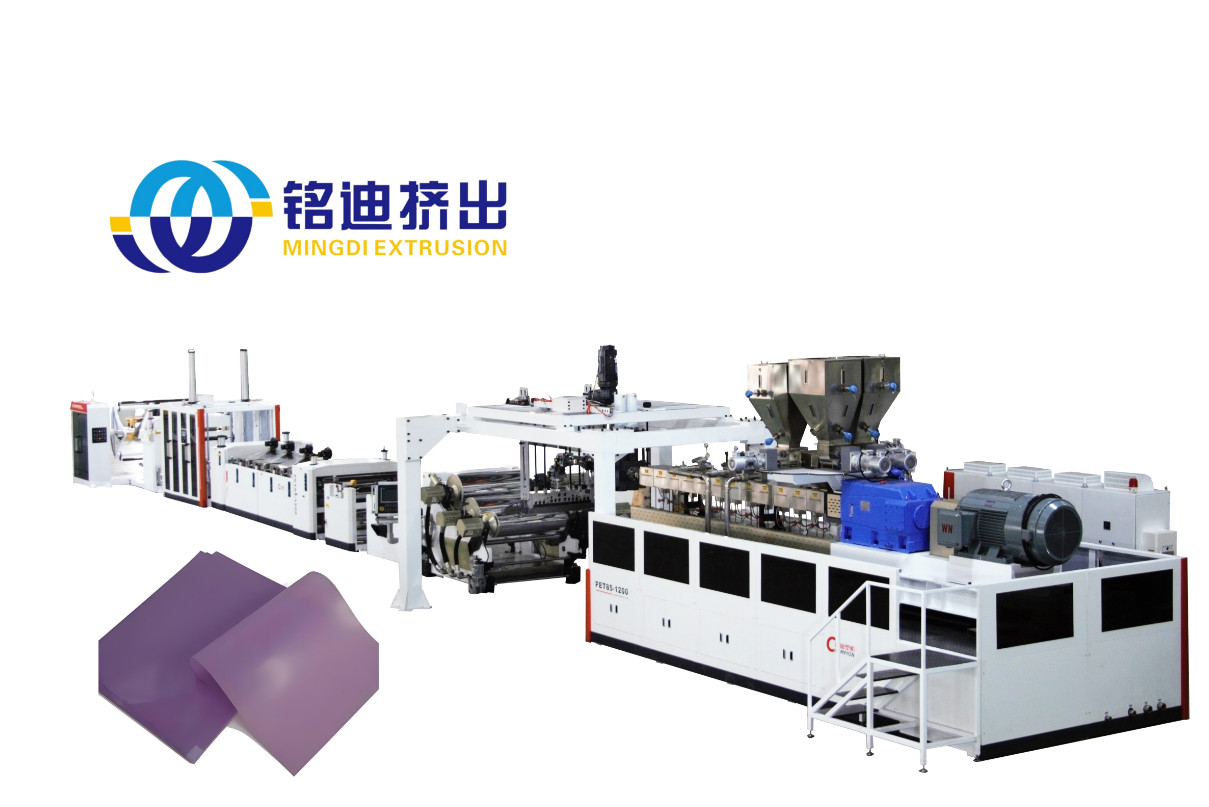

800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine

800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine
Basic Information
Place of Origin: ZheJiang, China
Brand Name: Ming Di Extrusion
Certification: CE,ISO
Model Number: 52/75/85/95
Minimum Order Quantity: one set
Price: 140000-200000$
Packaging Details: PE film & wooden pallet packaging
Delivery Time: 90 Days
Payment Terms: T/T
Supply Ability: 200 Sets per year
Get Best Price Chat Now
  • Detail Information
  • Product Description
Model: 52/75/85/95 Thickness: 0.8-1.7mm
Capacity: 800-1300kg/h Quantity Of Cup: A Million-two Million/day
Type Of Processed Sheet: PET Warranty Period: One Year
Core Selling Point: High Yield, Low Energy Consumption, High Precision Control System Applicable Industry: Food, Electronics, Stationery
Core Component: Extrusion Machine, Screen Changer, Pressure Sensor, Metering Pump, Extrusion Die, Three-roll Calender, Drawing Machine, Automatic Cutting System, Electrical Control System Core Component Shelf Life: One Year
Highlight:

pp pet sheet extrusion line

,

1300kg/h pet sheet extrusion line

,

1300kg/h plastic sheet extrusion line

800-1300kg/H PP Pet Sheet Extrusion Line, Plastic Cup Body Sheet Extruder Machine

This line is specially used for producing PP/PE/PS/ABS/PVC single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.


Main technical data:
1. Usual sheet width: 700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
2. Usual sheet thickness: 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm

Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity

Three-roller calendar: According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.

Cooling frame: According to product specifications, configurations with different specifications of the stainless steel

cooling rollerEdge-cutting devices: Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.

Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.
Product Specifications
Model 52/75/85/95
Thickness 0.8-1.7mm
Capacity 800-1300kg/h
Daily Output 1-2 million cups/day
Material PET
Warranty 1 year
Key Features High yield, low energy consumption, high precision control system
Applications Food, electronics, stationery industries
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 0
Core Components
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 1
Feeding System
Feeding Form Screw-type
Capacity 1000kg/h
Control Mode Variable frequency motor speed control
Converter SIEMENS 3KW, Ethernet control technology
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 2
Feed Rate 1-30kg/h
Material Conveying Screw type
Drive Motor 0.4KW Siemens servo motor
Control Method Siemens servo speed control
Screen Changer System
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 3
Brand Tuya
Structure Full-network double-column with hydraulic station
Heating Zones 2 zones
Heating Power Approx. 10kw
Metering Pump
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 4
Brand JCTIMEC
Rated Speed 8-60 rpm
Model E90 (371CC)
Drive System SIEMENS reducer, 7KW servo motor
Extrusion Die
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 5
Brand JCTMEC
Structure Hanger runner
Product Width 860mm
Product Thickness 0.2-1.0mm
Heating Zones 8 zones
Heating Power 30KW
Three-Roll Calender
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 6
Roller Dimensions Lower: Ø400mm, Middle/Upper: Ø600mm
Roller Width 1200mm
Material Alloy steel
Surface Finish Mirror finish
Hardness ≥HRC60-62
Chrome Layer 0.08mm-0.12mm
Drive Motors 3 x SIEMENS 7KW servo motors
Linear Velocity 6-60m
Edge Trimming System
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 7
Assembly 1 group, 3 knives (left, middle, right)
Cutter Type Rotary cutter
Ferrules Winding 1 set
Drive 0.4KW servo-motor control
Haul-Off System
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 8
Size Ø200mm × 1200mm
Roller Composition Upper rubber rollers, lower steel rods
Rubber Cover 20mm nitrile rubber, Shore hardness 65-70°
Drive Motors SIEMENS 5KW servo motor
Control Ethernet technology
Winding System
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 9
Structure Flip-type double-station winder
Air-expanded Shaft 3"/6" with mechanical clutch
Max Winding Diameter 1200mm
Drive Motor SIEMENS servo-motor
Winding Method Automatic
Control System
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 10
Control System PLC
CPU SIEMENS S7-1500
HMI SIEMENS 12"
Inverters SIEMENS
Circuit Breakers SIEMENS
Relays Schneider (small), Swiss Galle (solid state)
Product Overview
This high-end cup sheet extrusion line combines efficiency, energy savings, stability, and intelligent operation. Incorporating international advanced technology tailored for China's market, it excels in food packaging, electronics packaging, stationery, and related fields. Its exceptional performance and market competitiveness make it the preferred choice for numerous enterprises.
Key Advantages
  • High Efficiency: 20% increased output with efficient single screw extruder, shortening production cycles
  • Energy Saving: 15% reduced energy consumption with unique design, lowering production costs
  • Reliable Operation: SIEMENS control system ensures stability and low failure rate
  • Smart Control: One-touch operation with automated, intelligent production processes
  • Versatile Production: Handles 0.15-2mm thickness sheets (600-1500mm width) for PP, PS, HIPS materials
  • Precision Cutting: Automatic system reduces waste and improves yield
  • Comprehensive Support: Full technical support from installation to production, with lifetime after-sales service
Applications
Widely used in food packaging, electronics packaging, stationery, toys, pharmaceuticals, cosmetics and other industries with broad market demand.
800-1300kg/H PP Pet Sheet Extrusion Line , Plastic Cup Body Sheet Extruder Machine 11
