High Speed Big Capacity Customized TPU Sheet Extrusion Line

Basic Information
Place of Origin: Qingdao China
Brand Name: Leader
Certification: CE SGS ISO GOST
Model Number: SJ-150/33
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood pallet
Delivery Time: 60 Workdays
Payment Terms: T/T, L/C
Name: High Speed Big Capacity Customized TPU Sheet Extrusion Line Material: TPU
Extruder: Single Screw Extruder Product Width: 1500mm
Product Thickness: 0.5-6mm Automatic Grade: Automatic
Application: Sheet Warranty: 12 Months
High Light:

plastic sheet extrusion machine

,

film and sheet extrusion

Thickness of 0.5-6.0mm TPU Sheet Extrusion Line Width of 1500mm

High Speed Big Capacity Customized TPU Sheet Extrusion Line



Equipment Discreption


1)TPU sheet extrusion line: Material dehumidifying, loading, dryer, extruder, mesh-changing unit,

melt metering pump, sheet mould, calender, roller-temperature unit, cooling unit, edge-trimming, haul-off, winder and so on.

2)According to different size of sheet, the mould can be adjustable automatically, automatical thickness Gauge.



Model 150/120/90-180 150/60-1200 130/60-1000 1200-1000 100-800
Product width 1500mm 1000mm 900mm 800mm 600mm
Product thickness 0.3-2mm 0.3-2mm 0.3-2mm 0.2-2mm 0.1-0.8mm
Design capacity 800-1000kg/hr 800kg/hr 550-600kg/hr 350-400kg/hr 200-250kg/hr
Design line speed 40M/min 40M/min 30M/min 25M/min 20M/min
Calender diameter Φ700mm Φ700mm Φ500mm Φ500mm Φ400m


Applicaiton of TPU sheet extrusion line


TPU product is mainly used in field of Aviation, Military, Automoile, Battery, Solar energy, trains and so on.

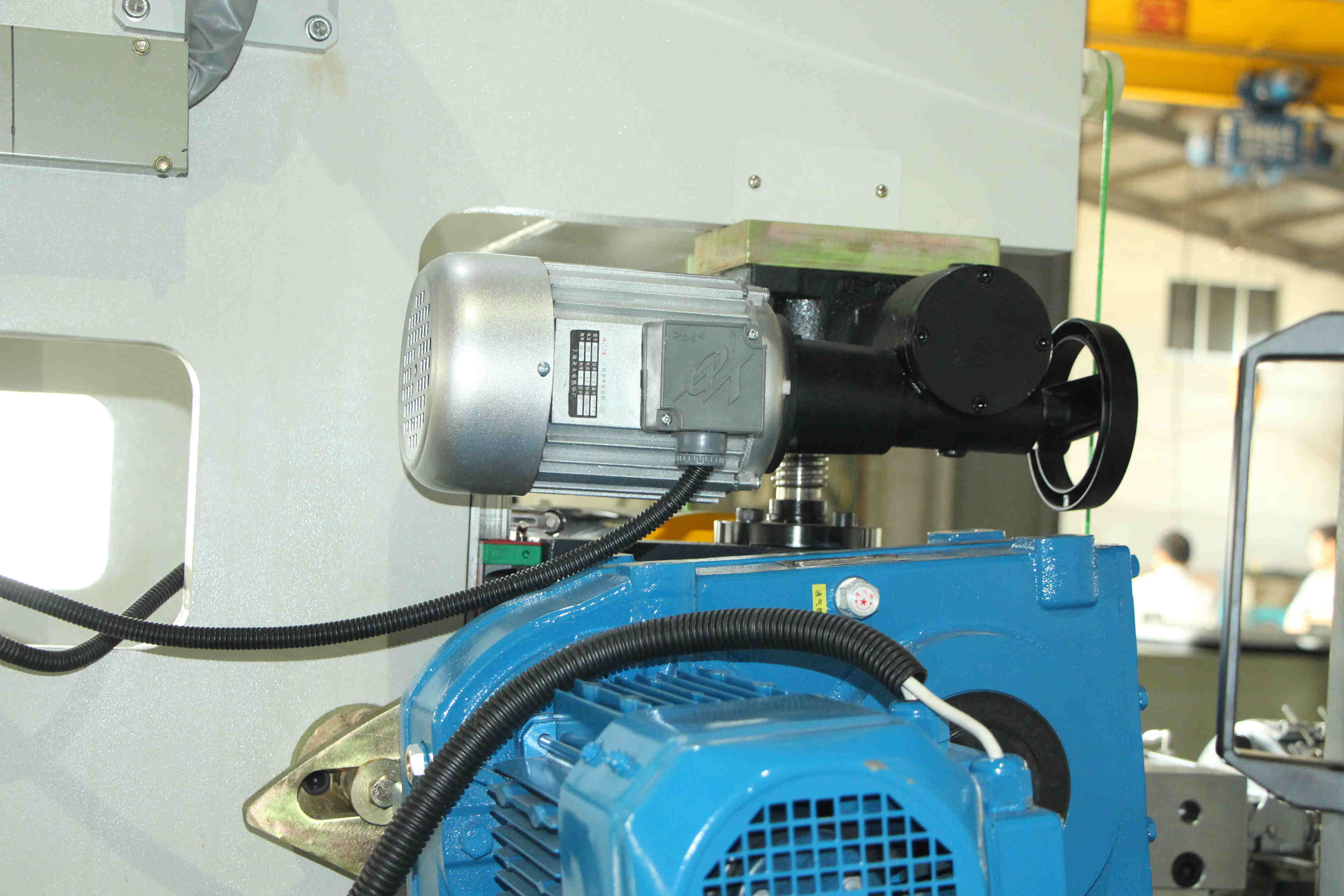

High Speed Big Capacity Customized TPU Sheet Extrusion Line 0

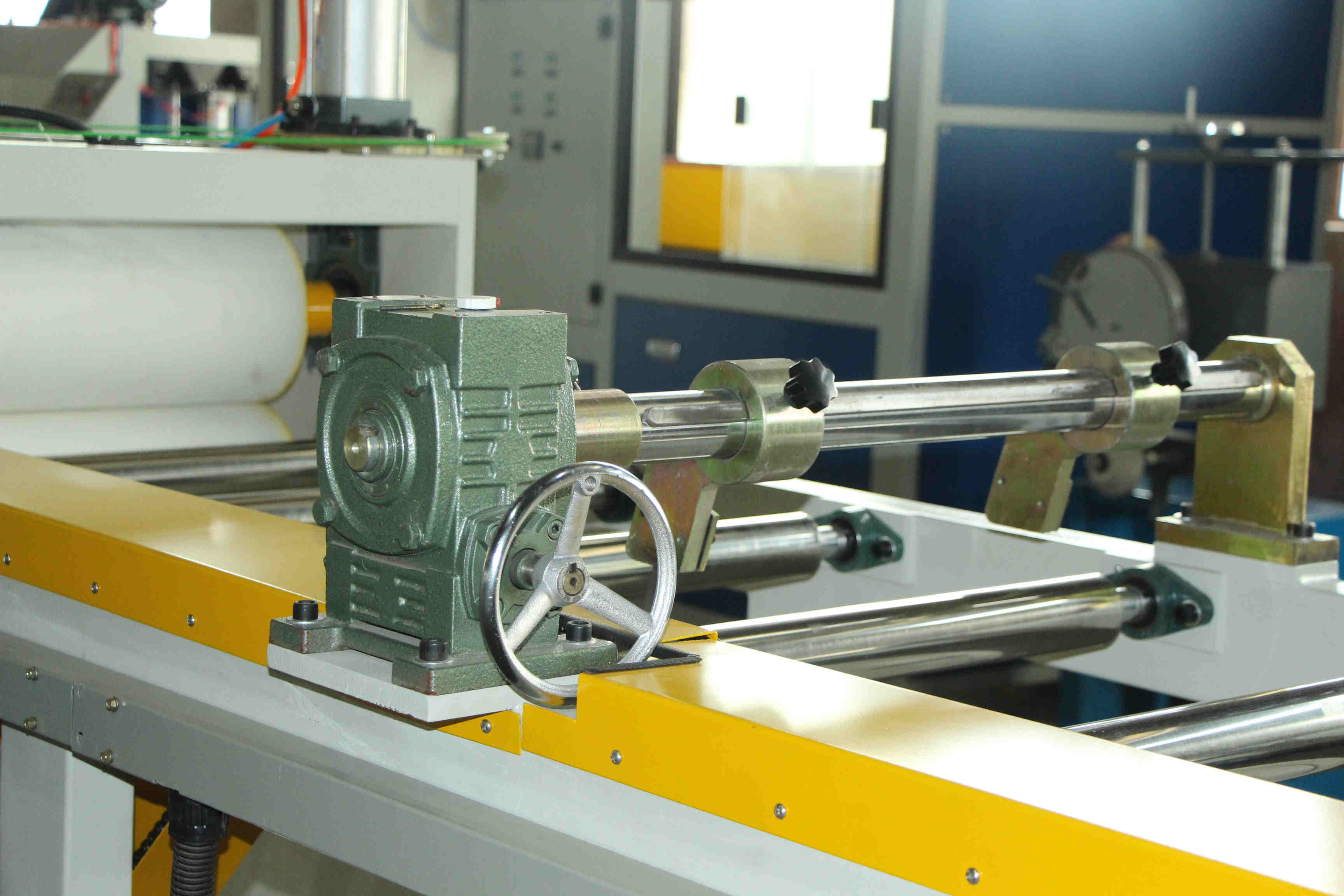

High Speed Big Capacity Customized TPU Sheet Extrusion Line 1
