| Place of Origin: | Qingdao China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJ-120/33 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotabile |
| Packaging Details: | plywood pallet |
| Delivery Time: | 90 Workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 Sets / Year |
| Name: | EVA Foam Sheet Extrusion Line With Single Screw Extruder And T-die Head | Material: | EVA |
|---|---|---|---|
| Extruder Type: | Single Screw Extruder | Product Width: | 1500mm |
| Product Thickness: | 1-8mm | Max. Capacity: | 500kg/h |
| High Light: | eva foam maker,eva moulding machine |
||

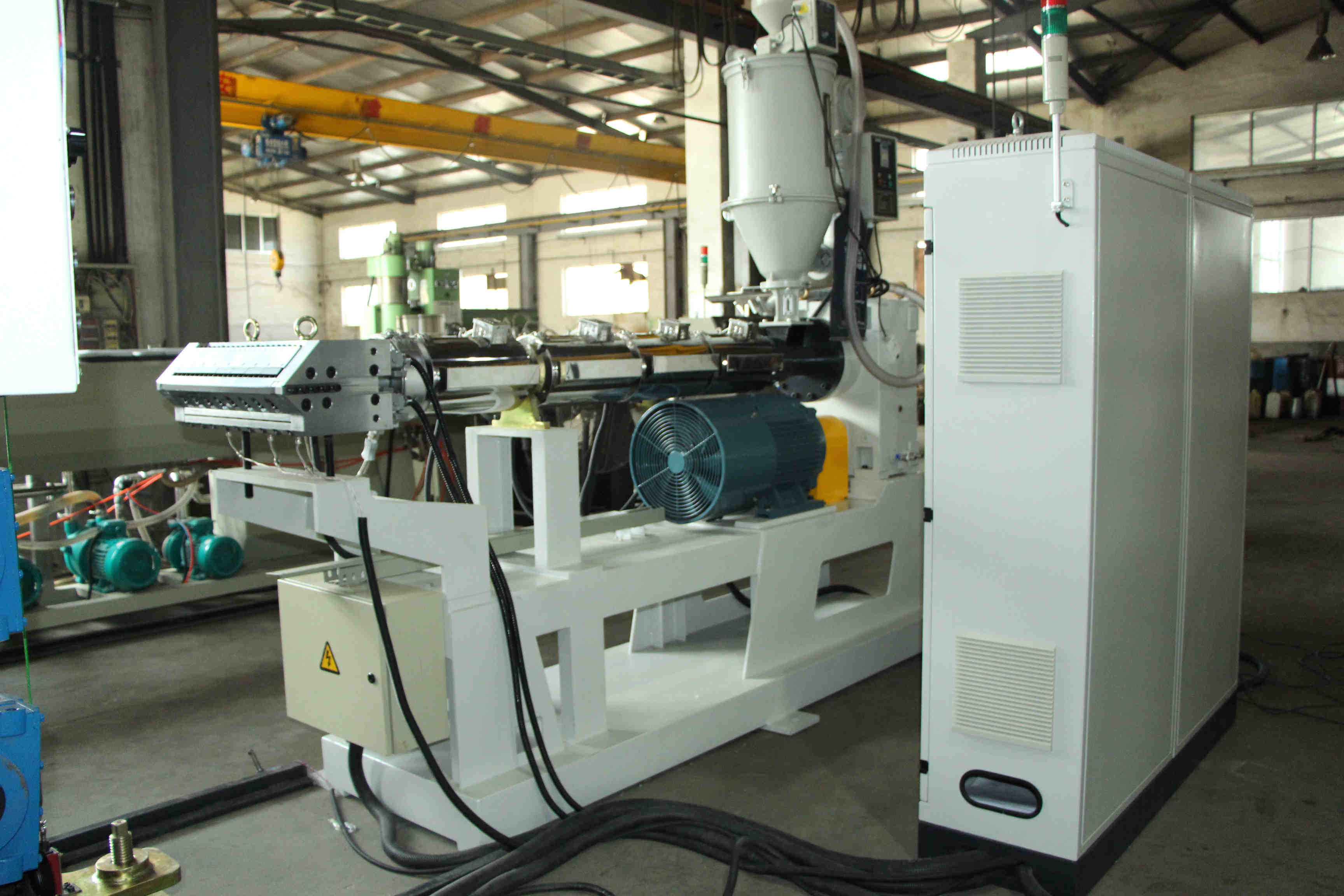

EVA Foam Sheet Extrusion Line With Single Screw Extruder And T-die Head
Width of 1500mm EVA Car Interiors Decoration Sheet Extrusion Line
Production Line Description:
Pressure kneader
This kneader mainly consists of mixing chamber, rotors, rotors sealed device, pneumatic
pressure-increase units etc. The EVA pellets, fillers, agents, lube oil etc materials are put
into this kneader. At the adjustable material and pressure hermetic condition, through the
specially designed rotating rotors, the kneader begin mix those different kinds materials till
theybecome aglomerator type. This kneader can also mix the edge cutting scraps and other
waste material, no need to crush again and then put them into the sheet production
again.
MAIN MACHINE CONFIGURATIONS:
| Item | Description | Data |
| 1 | Material mixer | 1 set |
| 2 | Pressure kneader | 1 set |
| 3 | Automatic transmission hoist | 1 set |
| 4 | Forced double screw feeding machine | 1 set |
| 5 | 180mm (150mm) Gradient single screw extruder | 1 set |
| 6 | 2150mm T type die head | 1 set |
| 7 | Hydraulic exchanging unit | 1 set |

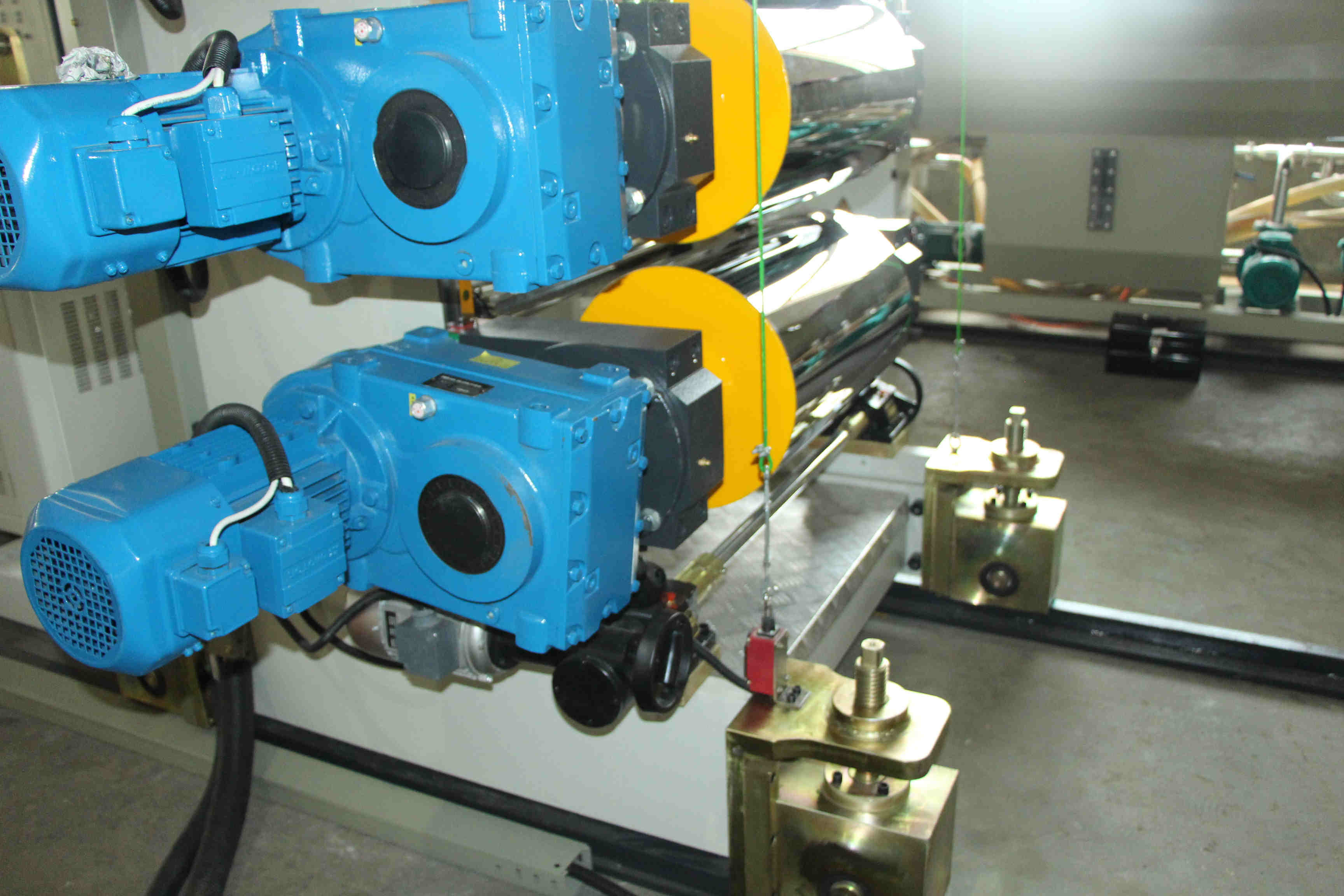

| 8 | Three rollers calendars with rollers thermoforming machine | 1 set |
| 9 | Double position double sides film laminating units | 1 set |
| 10 | Cooling frame | 1 set |
| 11 | Haul off machine and edge cutting units | 1 set |
| 12 | Sheets surface corona device | 1 set |
| 13 | Cutting machine (guillotine) | 1 set |
| 14 | Stacker | 1 set |
| 15 | Industrial water chiller | 1 set |
