PMMA Sheet Acrylic Auto Glass Board Plastic Production Line

Basic Information
Place of Origin: Qingdao of China
Brand Name: Qingdao Leader machinery
Certification: CE;ISO9001-2000;Bureau Veritas
Model Number: LMSB120/35
Minimum Order Quantity: 1
Price: US$150000-180000/SET
Packaging Details: Wooden Cases and Wooden Pallet
Payment Terms: L/C, T/T, Western Union
Model NO.: SJ-120/35 Condition: New
Main Electrical Parts: ABB, Omron, Rkc, Schneider, Siemens Etc Sheet Thickness: 0.2-8mm
Transport Package: Wooden Cases And Wooden Pallet Origin: Qingdao, Shandong, China
Customized: Customized Dimension(L*W*H): 40M(L)*5.5M(W)*3.5M(H)
Sheet Width: 800-2100mm Trademark: Qingdao Leader Machinery
Specification: CE ISO SGS GOST;BV
High Light:

PMMA Sheet Plastic Production Line

,

Glass Board Plastic Production Line

,

8mm PMMA Sheet Production Line

PMMA Sheet Acrylic Auto Glass Board Plastic Production Line

This extrusion line is specially used to produce the PMMA sheet, which is as clear as glass and has high impact resistance. So it is also called plexi-glass and acrylic sheets. By changing the three rollers calendars, this line can also produce frosted sheets, embossed sheets and other sheets for different applications.

Sheet Specifications:
Thickness: 0.8mm-10mm
Width range: 1000mm-1220mm-1560mm-2100mm
Length: Any dimension.
Color: Clear, blue, green, opal, brown, blue green etc.
Sheet structure: single layer or co-extrusion layers ABA type with UV coating on both sides.

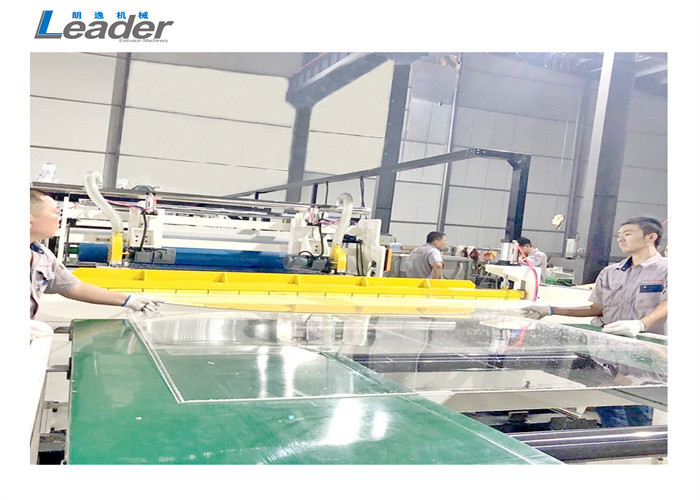

PMMA Sheet Acrylic Auto Glass Board Plastic Production Line 0
Characteristics and Main Applications:

Characteristics of PMMA sheets:
High transparency, aging resistance, high impact resistance, sound and thermal insulation, UV resistance, heat resistance, fire resistance, light weight, color stability, easy transportation etc.

Main Applications of PMMA sheets:
Interior and exterior decoration(Suspended ceiling, sky light, windows, advertising board, bathroom, kitchen cabinet, aquariums, telephone booth), light box, light guide panel (LGP), advertising lamp, instrument, highway insulation etc.

Machine Specifications and Production Flows:
MD-500 Drying and mixing machine→XAL-3HP Automatic vacuum feeding machine→SJ-130/36 Single screw extruder for PC→Hydraulic screen exchanger for PC→Melting gear pump for PC→SJ-45/30 Single screw co-extruder for UV layer on both sides→Melting gear pump for UV→T-type die head(2300mm width)→Three-roller calendars with 45 degree angle installation →Rollers thermo-controlling machine→Protective film coating unit →Cooling frame & edge cutting device→Haul-off machine with double rollers →Saw cutting machine→Belts conveying table →Sheet stacker

Main Technical Parameters:
Main extruder Dia. 120mm 130mm
Main screw L/D ratio 36:1 38:1
Main extruder drive 185kw 250kw
Co-extruder Dia. 45mm 45mm
Co-extruder L/D ratio 30:1 30:1
Co-extruder drive 22kw 22kw
Thickness of sheet 0.8-8mm 1.5-10mm
Width of sheet 1000-1560mm 1220-2100mm
Output ≥420kg/h ≥600kg/h
Power installed 380kw 520kw


PMMA Sheet Acrylic Auto Glass Board Plastic Production Line 1

PMMA Sheet Acrylic Auto Glass Board Plastic Production Line 2

PMMA Sheet Acrylic Auto Glass Board Plastic Production Line 3





COMPANY CERTIFICATIONS OF:

PMMA Sheet Acrylic Auto Glass Board Plastic Production Line 4

PMMA Sheet Acrylic Auto Glass Board Plastic Production Line 5

COMPANY CERTIFICATIONS OF:

PMMA Sheet Acrylic Auto Glass Board Plastic Production Line 6

PMMA Sheet Acrylic Auto Glass Board Plastic Production Line 7

The 34th International Extrusion on Plastics and Rubber Industries

PMMA Sheet Acrylic Auto Glass Board Plastic Production Line 8
