| Place of Origin: | Qingdao,China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJSZ80/156 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | plywood pallet |
| Delivery Time: | 95 Workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 15Sets / Year |
| Material: | PVC | Name: | Aging Resistant Fireproof PVC Sheet Extrusion Line 1220mm 400kg/H Big Capacity |
|---|---|---|---|
| Extruder: | Twin Screw Extruer SJSZ80/156 | Product Width: | 1220mm |
| Product Thickness: | 3-20mm | Max. Capacity: | 400kg/h |
| High Light: | pvc sheet production line,pvc sheet making machine |
||

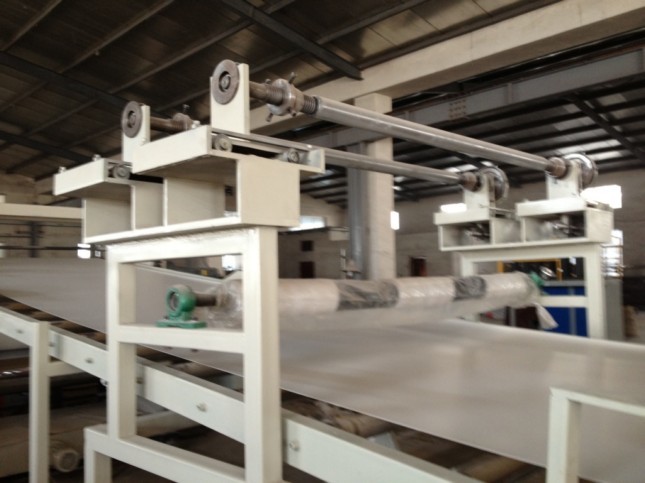

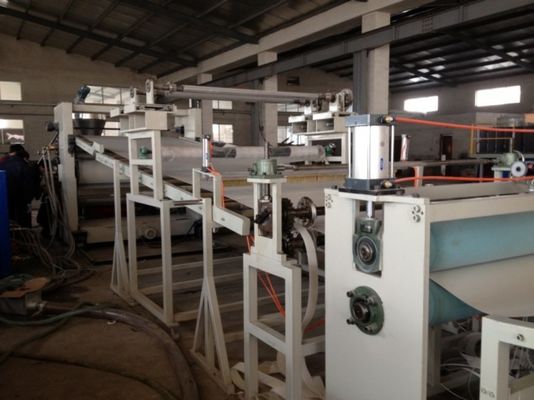

Aging Resistant Fireproof PVC Sheet Extrusion Line 1220mm 400kg/H Big Capacity
Introduction :
PVC/PP Corrugated Roofing Sheet Extrusion Line is designed and produced by Leader Machinery , can continuously
produce various-shape roofing sheets with corresponding shaping moulds . This complete plant includes : high speed mixer ,
conical twin screw extruder ,T-type die head , corrugation forming moulds , haul off machine , cutting device and stacker etc .
Our machine can produce PVC. LDPE. HDPE, TPO etc. Sheet with width 720mm -880mm-1040mm and thickness from 1-2.5-4mm.
It is widely used for housing water proof, tunnel, architecture engineering, high express way, airport, water reservior etc.
This Extrusion Line Consists Of :
| 1 | Automatic spring feeding machine | 1 set | |
| 2 | Conical twin screw extruder | 1 set | |
| 3 | T-type /hanger type die head (JC-Times brand) | 1 set | |
| 4 | Three Roller Calendars (alloy steel material ) | 1 set | |
| 5 | Rollers thermoforming machine | 1 set | |
| 6 | Cooling frame and edge cutting unit | 1 set | |
| 7 | Haul off machine | 1 set | |
| 8 | Plastic cutting machine-Guillotine | 1 set | |
| 9 | Twin position winder | 1 set | |
| 10 | Spare parts | 1 set | |
Delivery term , Payment and other terms :
1. delivery time: 60 days after receiving the deposit
2. payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
3. Packing details: wooden pallets and cases with stretching films
4. Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.
5. Service: we will send 1-2 engineers to customers' factory to help them install, test the machine and also train their workers, but customers should bear the round tickets, accommodation, and salary etc.
