| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | QingDao Leader |
| Certification: | CE, ISO9001-2000; BV |
| Model Number: | LMSB80/156 |
| Minimum Order Quantity: | 1 SET |
| Price: | US $200,000-250000/ Set |
| Packaging Details: | Wooden Cases with Vacuum Film |
| Delivery Time: | 2-3 months |
| Payment Terms: | L/C, T/T |
| Sheet Thickness: | 0.2-3mm | Sheet Width: | 1200mm-2100mm |
|---|---|---|---|
| Sheet Structure: | Ingle Layer Or Co-Extrusion Layers ABA | Application: | Packing Or Roofing Or Construction Etc |
| Main Electrical Parts: | ABB, Omron, Rkc, Schneider, Siemens, Eurotherm Etc | Transport Package: | Wooden Pallet/Cases With Streching Films |
| HS Code: | 8477209000 | Sheet Applications: | Interior And Exterior Decoration, LGP |
| High Light: | 3mm PVC Sheet Extrusion Line,3mm Transparent PVC Sheet Machine,Rigid Soft Sheet Extrusion Line |
||

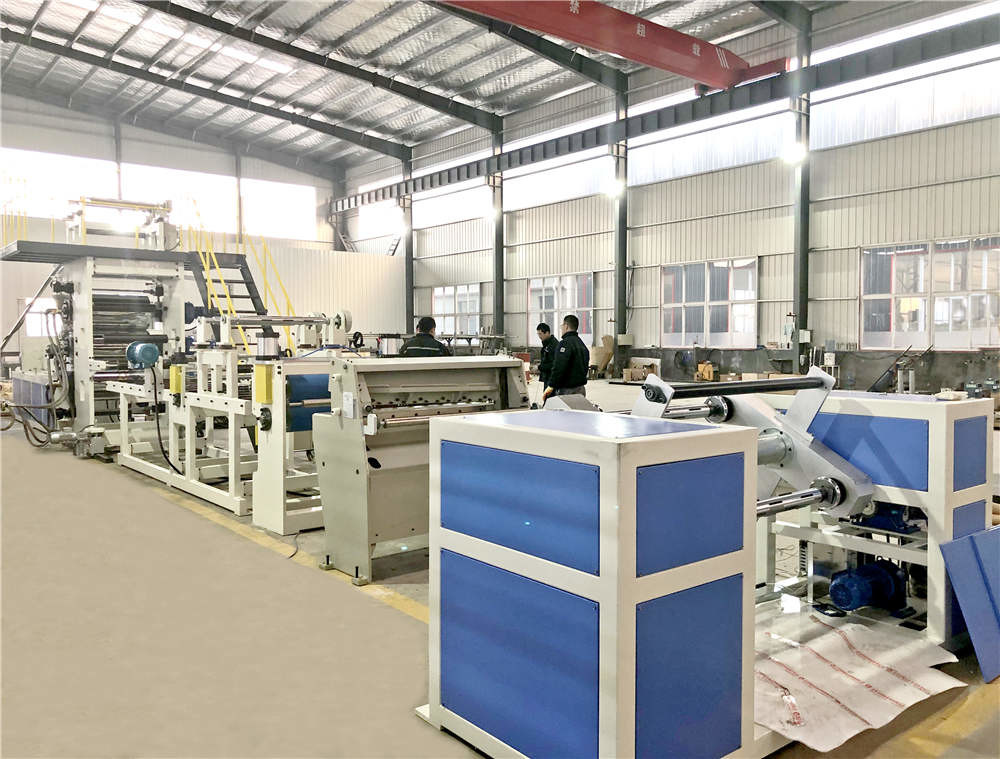

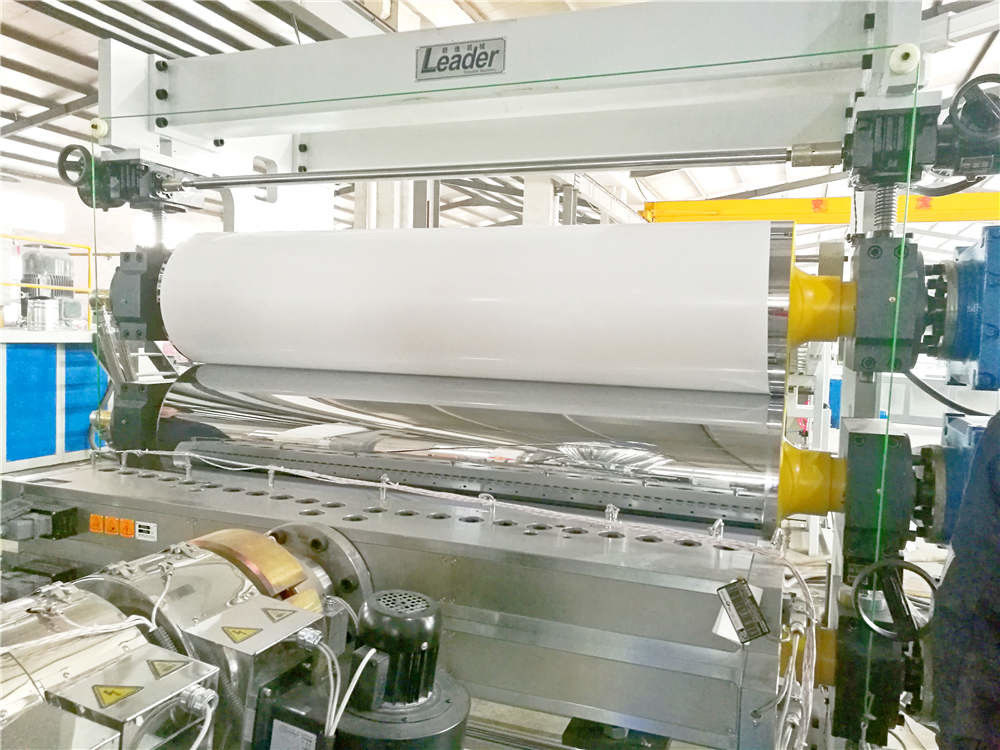

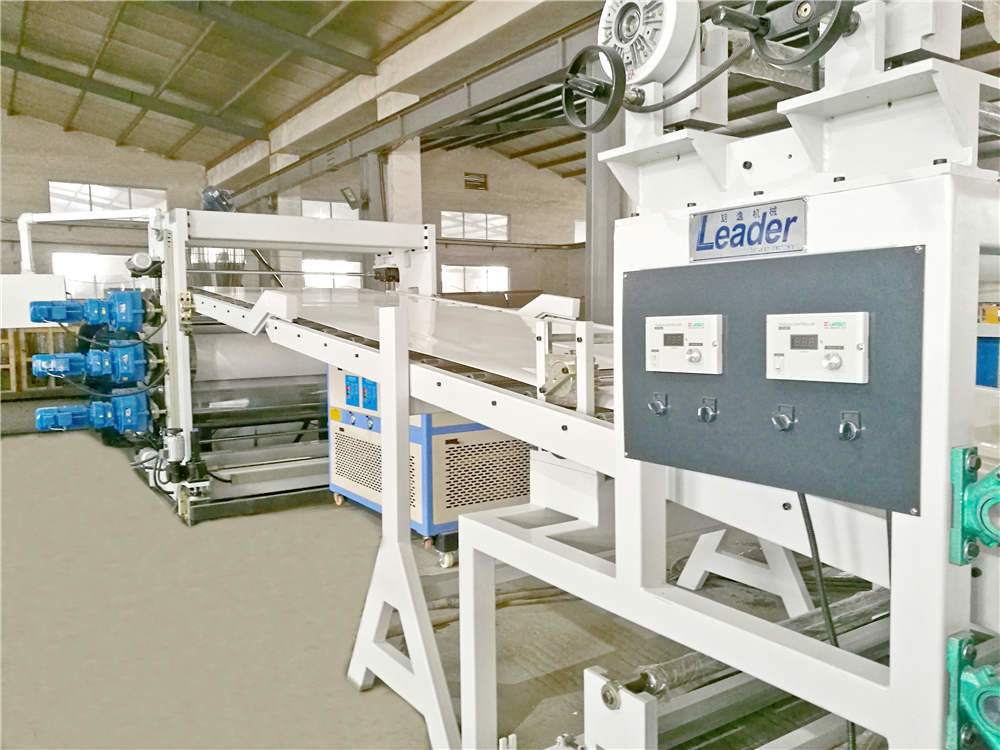

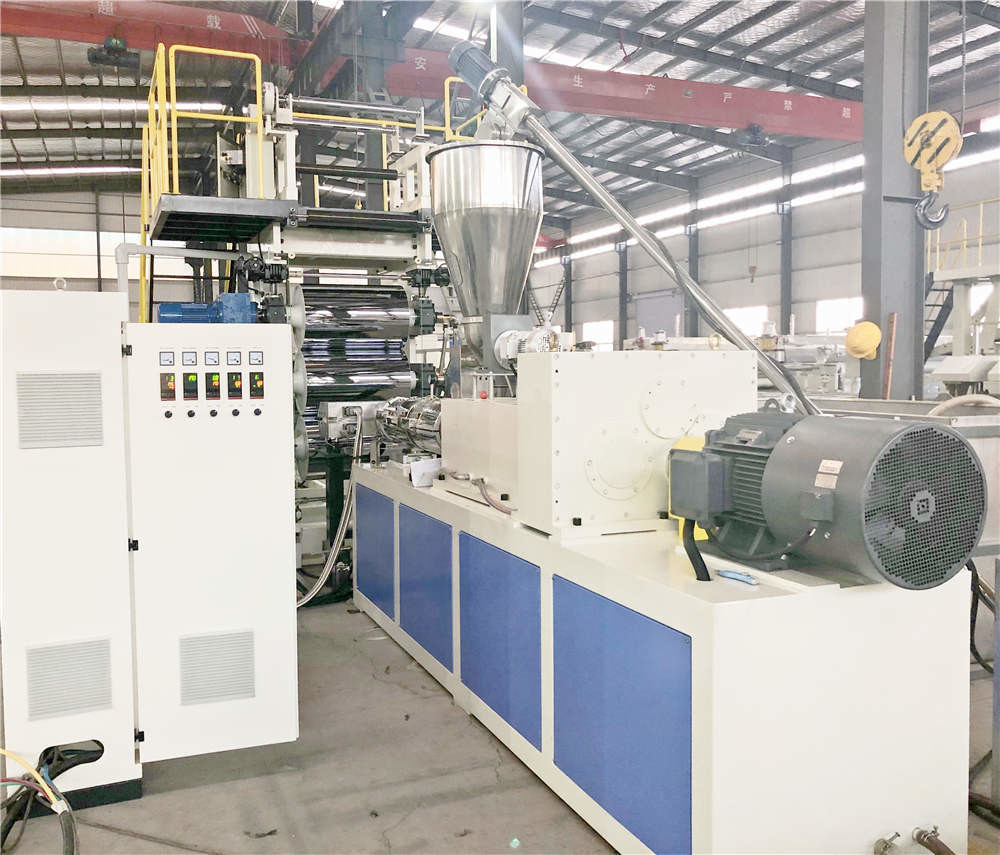

Rigid/Soft PVC Sheets /PVC Transparent Sheets Extrusion Line
1)PVC Sheets are easy to form, high tension, various colors, fireproof, high quality, low cost etc. Rigid PVC sheets application: sandwich panel in construction fields, furniture edge banding and skinning, high standard printing, thermoforming packing etc.
2)Soft PVC sheets application: interior mats for automobiles, curtains, table cloth, liners for equipment, luggage, hardware and also interior decoration etc.
3))PVC Transparent Rigid Sheet Extrusion line
PVC transparent sheet have many advantages of fire-resistance, high quality, low cost, high transparent, good surface, no spot,less water wave, high strike resistance, easy to mould and etc. It is applied to different kinds of packing ,vacuuming and case, such as tools, toys, electronic, food, medicine and clothes.

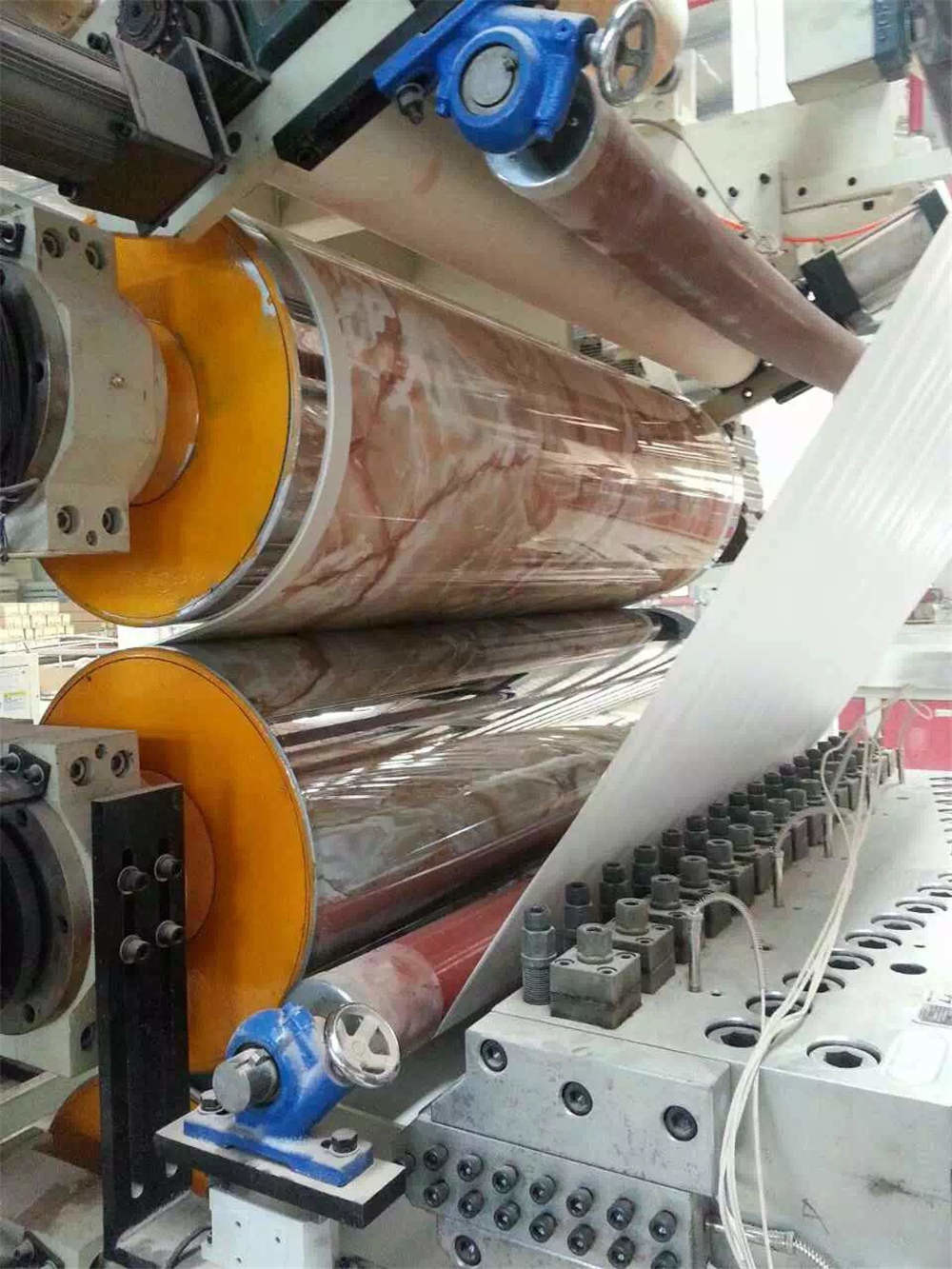

4)UV imitation marble board:
a. Board surface coat imitation marble film, or laminate imitation marble and through curing treatment, good anti scratch, anti
scratch resistance.
b. Board with variety of color, it’s convenient to construct;
c. Instead of marble etc. natural stone in the interior decoration, with good aging resistance, anti-yellow, anti-ultraviolet ray ,green and environment , no radiation.
Main technical parameter
| Model | Extruder model | Products width(mm) | Products thickness(mm) | Main motor power(kw) | Designed extrusion output(kg/h) |
| LMSB80/156-1500 | LMSB80/156 | 1200 | 0.2-3.0 | 75 | 350 |
| LMSB92/188-2200 | LMSB92/188 | 2000 | 1.0-3.0 | 110 | 550 |
COMPANY CERTIFCATIONS
OUR RELIABLE SUPPLIERS:
OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.
5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.
7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008
10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
