Rigid / Soft PVC Sheet Extrusion Line Life Long Guarantee

Basic Information
Place of Origin: Qingdao,China
Brand Name: Leader
Certification: CE ISO SGS GOST
Model Number: SJSZ80/156
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood pallet
Delivery Time: 90-105 workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15Sets / Year
Material: PVC Name: Rigid / Soft PVC Sheet Extrusion Line Life Long Guarantee
Extruder: Twin Screw Extruer SJZ80/156 Product Width: 600-1500-2000mm
Product Thickness: 0.5-2mm Max. Capacity: 400kg/h
Guarantee Time: Long Life HS Code: 8477209000
High Light:

pvc sheet production line


pvc sheet making machine

Rigid / Soft PVC Sheet Extrusion Line Life Long Guarantee​

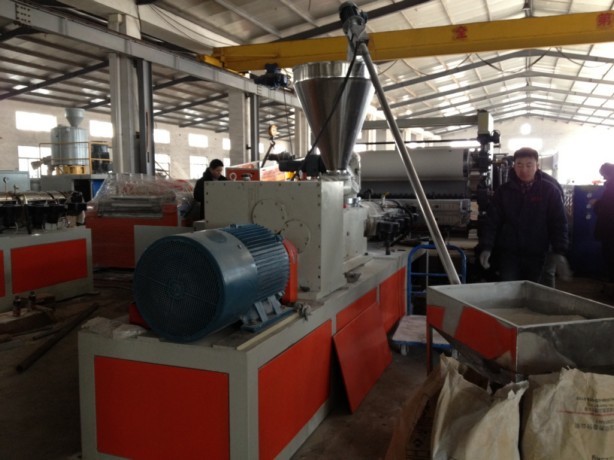

 Machine Introduction :


This line is specially designed to produce thin pvc sheets. This line consists of conical twin screw extruder, T-die head and other downstream machine parts. The PVC sheet produced by our machines has such characteristics of good plasticization, easy to form, high tension, accurate products color controlling , high capacity, fireproof, economical and can be replaced PVC cast sheet. PVC edge band is widely used in furniture edge banding and skinning.


This machine has the features of high output , stable extrusion ,high foaming , smooth and wearabe surface etc .


Machine list :

1 Automatic spring feeding machine 1 set
2 Conical twin screw extruder 1 set
3 T-type /hanger type die head (JC-Times brand) 1 set
4 Three Roller Calendars (alloy steel material ) 1 set
5 Rollers thermoforming machine 1 set
6 Cooling frame and edge cutting unit 1 set
7 Haul off machine 1 set
8 Longitudinal cutting machine 1 set
9 Cross cutting machine 1 set
10 Stacker 1 set
11 Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)
12 Spare parts 1 set


Technical data:

Model LMSB65/132 LMSB80/156 LMSB92/188
Max product width 1000mm 1500mm 2000mm
Products thickness 0.5-3mm 0.5-3mm 0.5-3mm
Extruder model SJ-65/132 SJ80/156 SJ-92/188
Rollers diameter 350mm 400mm 450mm
Rollers temperature control Oil/water Oil/water Oil/water
Main motor power 37kw 55kw,75kw 75kw, 110kw
Capacity 250kg/h 360kg/h 550kg/h
Total line Length 22m 28m 35m


Rigid / Soft PVC Sheet Extrusion Line Life Long Guarantee 0
