| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader Machinery |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJ-120/35 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | plywood pallet |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Sets / Year |
| Name: | 800mm Multi Layer PET Sheet Extrusion Line For Package Industry 800kg/H Max Capacity | Material: | PET |
|---|---|---|---|
| Extruder Type: | Single Screw Extruder | Thickness: | 0.2-1.2mm |
| Width: | 800mm | Max Capacity: | 800kg/h |
| Warranty: | 18 Months | HS Code: | 8477209000 |
| High Light: | pet extruder machine,pet sheet making machine,pet extrusion machine |
||

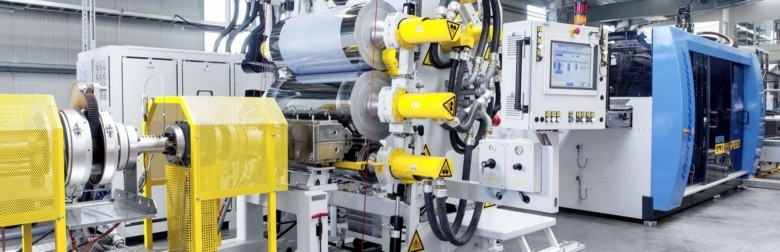

800mm Multi Layer PET Sheet Extrusion Line For Package Industry 800kg/H Max Capacity
1. Summary Introduction
This PET high efficiency sheet extrusion line is special designed by Qingdao Leader Machinery CO., LTD .company .
The PET Sheet line is made for PET PP PS single layer and multi-layer co-extrusion sheets , speed can be up to 50m/min .
The High efficiency twin screw extrusion machine line adopts the parallel twin screw , it has good feeding performance , mixing and plasticizing performance , exhaust performance and extrusion stability .
The PET sheet extrusion line is equipped with degassing system, so no need drying or crystalizing unit
Multi components dosing feeder can control the percentage of virgin material, recycling material
and master bacth precisely.
This sheet is widely used for thermoforming packing industry.
2. PET sheet making machine list :
| 1 | 1 set of vacuum feeding machine and dryer-cooper |
| 2 | single screw extruder for virgin material/ twin screw extruder for recycled mateiral |
| 3 | 1 set of hydraulic filter exchanging unit |
| 4 | 1 set of melt pump for PET |
| 5 | 1 set of T-die head |
| 6 | 1 set of 3-roller calendar 45 degree with temperature controller for rollers |
| 7 | 1 set of cooling frame, edge cutting unit and hauling off machine |
| 8 | 1 set of Double position winding machine |
3. Technical Parameters :
| Model | Multi Layer | Single Layer | High-efficient |
| Extruder Specification | sj75&36/40-1000 | SJ75/40-1000 | SJ95&52/44-1500 |
| Product Thickness | 0.15-1.5mm | 0.15-1.5mm | 0.15-1.5mm |
| Main Motor Power | 110kw/45kw | 110kw | 250kw/55kw |
| Max Extrusion Capacity | 500kg/h | 450kg/h | 800-1000kg/h |
