| Place of Origin: | Qingdao,China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJZ80/156 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | plywood pallet |
| Delivery Time: | 90 workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 18 Sets / Year |
| Material: | PVC | Name: | Soft/Rigid PVC Sheet Extrusion Line PVC Corrugated Roofing Sheet Extrusion Equipment |
|---|---|---|---|
| Extruder: | Twin Screw Extruer | Product Width: | 720mm-1050mm |
| Product Thickness: | 0.5-3mm | Max. Capacity: | 350-400kg/h |
| Main Electrical Parts: | ABB, Omron , SKF , Schneider , Fuji , Delix | Guarantee Time: | 12 Months |
| High Light: | pvc sheet production line,pvc sheet making machine |
||
Soft/Rigid PVC Sheet Extrusion Line PVC Corrugated Roofing Sheet Extrusion Equipment

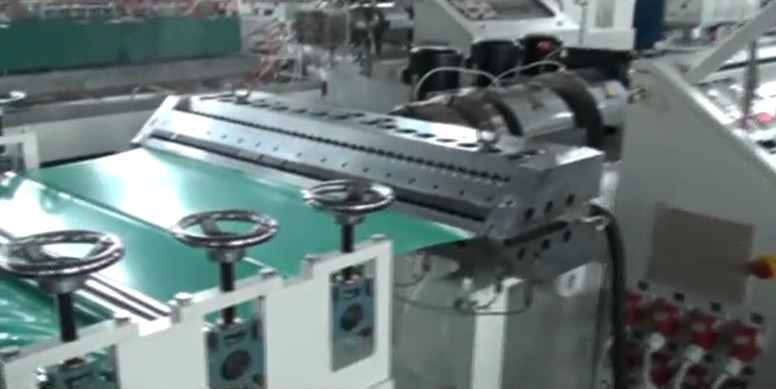

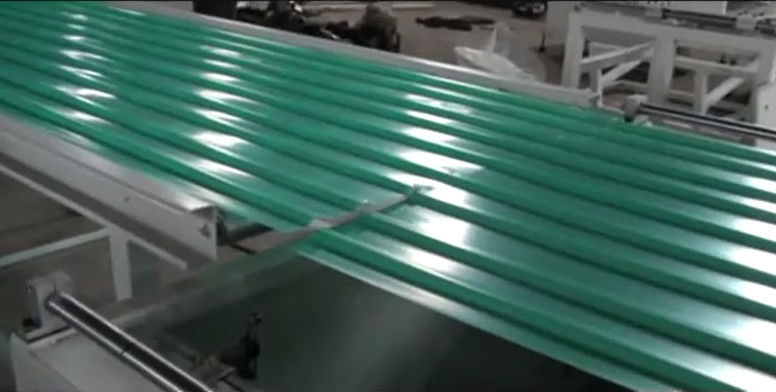

PVC Corrugated Roofing Sheet Production Line
This pvc plastic corrugated sheet machine is used to produce the pvc corrugated roofing sheets, which have an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristics and is widely used for roof material of workshops, warehouses.
Equipment List:
| PAR T1 THIS LINE CONSISTS OF (COMPULSORY) | ||||
| 1 | Automatic spring feeding machine | 1 set | ||
| 2 | Conical twin screw extruder SJSZ-80/156 | 1 set | ||
| 3 | Single screw extruder SJ-45/30 or 65/30 for UV extrusion | 1 set | ||
| 4 | T-type /hanger type die head (JC-Times brand) | 1 set | ||
| 5 | Corrugation forming boards | 1 set | ||
| 6 | Cooling frame and edge cutting unit | 1 set | ||
| 7 | Haul off machine | 1 set | ||
| 8 | Plastic cutting machine-guillotine with meter counting | 1 set | ||
| 9 | Stacker | 1 set | ||
| 10 | Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc) | |||
| 11 | Spare parts | 1 set | ||
| PART 2 ACCESSORY MACHINE PARTS (OPTIONAL) | ||||
| 1 | High speed hot and cold mixer SRL-Z 300/600 | 1 set | ||
| 2 | Plastic crusher SWP-450 | 1 set | ||
| 3 | Plastic pulverizer SMP-400 | 1 set | ||
| 4 | Air compressor | 1 set | ||
| 5 | Industrial water chiller | 1 set | ||
| PART 3 SHEET APPLICATIONS | ||||
| 1 | Roof panels, roof tiles, roof sheets, ceilings | |||
| 2 | Factories, warehouses, farm building, greenhouses, canopies, walkways, patio covers, Pergolas, cladding |
|||
| PART 4 PAYMENT, DELIVERY AND AFTER SALE SERVICES | ||||
| 1 | Payment terms | 40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable | ||
| 2 | Delivery time | 70 days after receipt of prepayment | ||
| 3 | Packing method | Wooden cases/pallets with stretching films | ||
| 4 | Guaranteed time | 18 months for mechanical parts, 12 months for electrical parts | ||
| 5 | After sale service | Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable | ||
