Multiwall Hollow Panel Honeycomb Sheet Extrusion Line

Basic Information
Place of Origin: QingDao, ShanDong, China
Brand Name: QingDao Leader
Certification: CE, ISO9001-2000; BV
Minimum Order Quantity: 1 sets
Packaging Details: Wooden Pallet/Cases with Streching Films
Payment Terms: L/C, T/T, Western Union
Model NO.: LSJ-120/35+45/30 Condition: New
Transport Package: Wooden Pallet/Cases With Streching Films Origin: QingDao, ShanDong, China
Customized: Customized Guaraneed Time: 12 Months
Main Electrical Parts: ABB, Omron, Rkc, Schneider, Siemens Board Width:: 400-1200mm
Board Thickness:: 0.8-3mm Application:: Stationery,containers,handbags
Die Head:: T-Type, Jc-Times Brand Transportation:: 2X40f Containers
Extruder Model: High Efficiency Single Screw Extruder 150/33 Three Roller Calendars: Vertical Type, Alloy Steel Material
High Light:

Honeycomb Sheet Extrusion Line

,

Multiwall Hollow Panel Sheet Extrusion Line

,

UV Polycarbonate Sheet Extrusion Line

with UV Polycarbonate Clear Sun Panel Multiwal Hollow Panel Honeycomb Panel Extrusion Line



This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow
sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.

Characteristics of vacuum calibrator:
1. High quality mould steel or high strength Al-Mg Alloy
2. Special harden treatment and non-sticky coating on the surface.
3. Independently controlled vacuumize device and temperature controlling system.
4. Consist of vacuum sealing edge device.

The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.

Hollow Sheets Specifications:

Sheet width: 600mm-700mm-1050mm- 1220mm-2100mm-2300mm,
Sheet thickness is 4mm-6mm-8mm-10mm-12mm-16mm
Sheet walls: double walls , three walls, 4 walls and more etc.

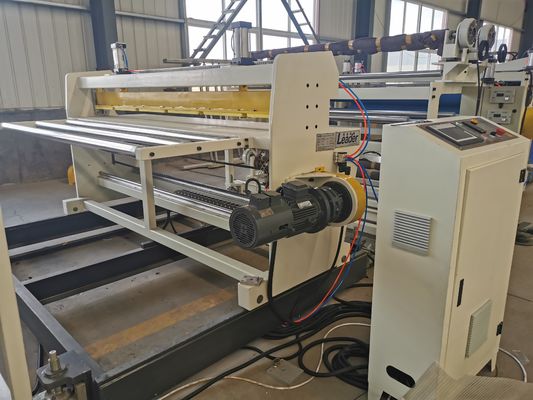

Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 0

Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 1





MORE MACHINE PICTURES:



Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 2

Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 3

Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 4

Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 5











PACKAGING & SHIPPING:





Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 6



COMPANY CERTIFICATIONS:


Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 7
COMPANY TRADE SHOWS AROUND THE WORLD:
Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 8
Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 9
Multiwall Hollow Panel Honeycomb Sheet Extrusion Line 10

OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION

1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.

4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.

5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.

8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.


9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
