| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | Single Screw Extruder LSJ120/35 |
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | plywood pallet and transparent film package |
| Delivery Time: | 95 Workdays |
| Payment Terms: | T/T, , Western Union |
| Supply Ability: | 20 Sets / Year |
| Name: | High Intensity PC Multiwall Hollow Sheet Extrusion Line 350kg/H Max Capacity | Material: | PC PP PE |
|---|---|---|---|
| Extruder: | LSJ120/35 | Product Width: | 1210mm, 2100mm, |
| Product Thickness: | 4mm 6mm 8mm 10mm | Max. Capacity: | 350kg/h |
| Total Installed Power: | 510KW | HS Code: | 8477209000 |
| High Light: | pp film extrusion machine,pp sheet extrusion machine,pp hollow sheet extrusion line |
||

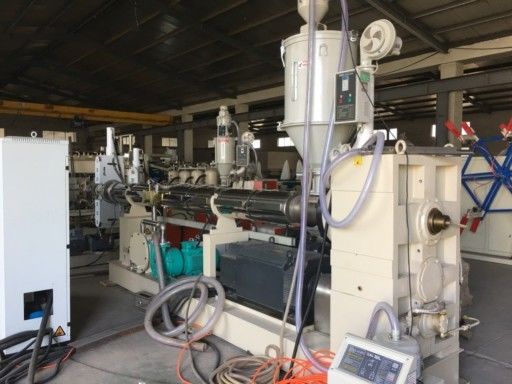

High Intensity PC Multiwall Hollow Sheet Extrusion Line 350kg/H Max Capacity
Summary Introduction :

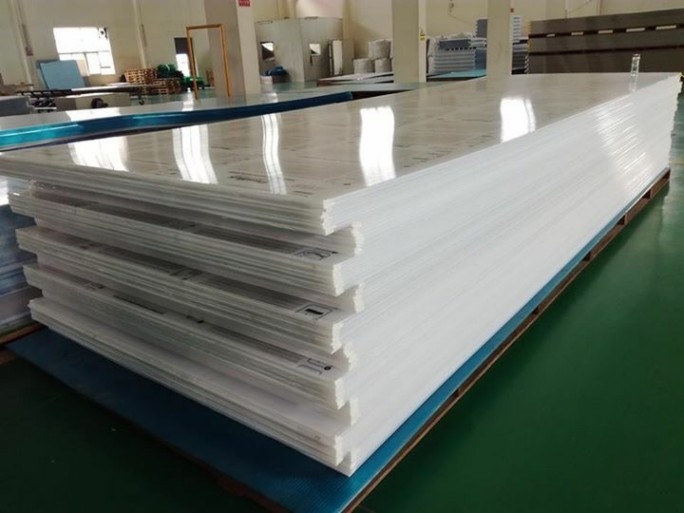

This PC hollow sheet extrusion line realizes continuous of PC hollow grid sheet , which is applicable to
construction decoration , advertisement collocation , and noise insulation of highway as well as packaging .
It is characterized by light weight , high intensity , high intensity , high transparency damproof , and
anticorrosion .
The technology of hollow sheet die with co-extrusion feed block of get UV+PC+UV , UV+PC hollow sheet
can save 30% UV on the surface .
Specification :
Thickness range: 4mm 6mm 8mm 10mm 12mm
Net sheet width: 1220-2100mm
Layer structure: Single layer or multi-layer
Capacity: 300-350kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
Characteristics of vacuum calibrator :
1. Special harden treatment and non-sticky coating on the surface.
2. High quality mould steel or high strength Al-Mg Alloy
3. Consist of vacuum sealing edge device.
4. Independently controlled vacuumize device and temperature controlling system .
Main Machine Data:
| Main extruder screw diameter | 120mm |
| L/D | 35:1 |
| Main motor power | 185kw |
| Co-extruder screw diameter | 45mm |
| L/D | 30:1 |
| Motor power | 15kw |
| Sheet thickness range | 4-30mm |
| Sheet width | 2100mm |
| Capacity | >200kg/h |
| Actual running power consumption | 200kw |
