2000-3000mm HDPE Composite Dimple Drainage Sheet Extrusion Line

Basic Information
Place of Origin: Qingdao, China
Brand Name: Leader
Certification: CE ISO SGS GOST
Model Number: SJ-120/36, SJ-150/35
Minimum Order Quantity: 1 set
Packaging Details: plywood pallet
Delivery Time: 90 Workdays
Payment Terms: T/T, L/C
Supply Ability: 24 Sets / Year
Name: 2000-3000mm HDPE Composite Dimple Drainage Sheet Extrusion Line Material: HDPE
Width: 2000-3000mm Thickness: 0.5-3mm
Max. Capacity: 400-600kg/h Main Motor Power: 185KW, 220KW
High Light:

pvc sheet extruder


pe extrusion line


pe extrusion machine

2000-3000mm HDPE Composite Dimple Drainage Sheet Extrusion Line​

Brief Introduction :


PE Waterproofing geocell is of using a kind of high-grade polyethylene resin as the main raw material , adding a certain amount of filer and stabilizer , UV absorbers and other auxiliary material , waterproof material after mixing , extrusion , cooling process , volume , meter , packing etc .

PE waterproofing geocell making machinery has the advantages of compact structure , convenient operation . The extrusion machinery can configure different components according to customer requirements , used for the production of single-layer composite products . It can increase the winding devices , used in the production of enhanced product or surface-composite non-woven fabracs and PE decorative film products .


Application :

1. Liners for water conveyance canals/water reservoirs/brine solutions/solar ponds/waste conveyance/radioactive waste liquid/secondary containment of underground storage tank etc.
2. Seepage control within zoned earth dam and water proofing in coffer dam
3. Covers for solid waste land fields/waste liquid/pollution prevention
4. Structural supports as temporary dam
5. To line canal/swimming pool/tannery waste treatment ponds/acid tanks/floors etc.

Sheet Specification :


Material PE PE
Sheet thickness 0.5-3mm 0.5-3mm
Sheet width 1000-4000mm 5000-8000mm
No. Item Value
    0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm
1 Density
2 Tensile properties
  Yield strength
11 15 18 22 29 37 44
  Break strength
20 27 33 40 53 67 80
  Yield elongation/% 12
  Break elongation/% ≥450
3 Tear resistance/N 93 125 156 187 249 311 374
4 Puncture resistance/N 240 320 400 480 640 800 960
5 Stress crack resistance/h ≥1500

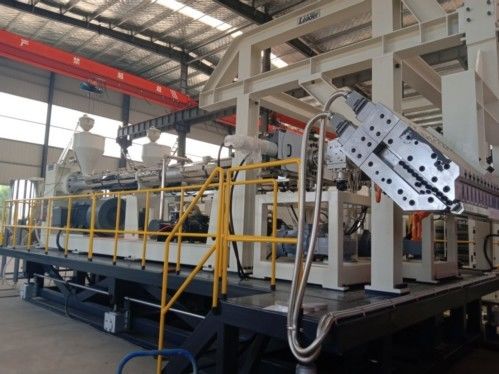

2000-3000mm HDPE Composite Dimple Drainage Sheet Extrusion Line 0
