| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJSZ-80/156 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | plywood pallet |
| Delivery Time: | 105 Workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 Sets / Year |
| Name: | 6000mm HDPE Geomembrane Sheet Extrusion Line ABA 3 Layer 0.5-3mm | Material: | PE PVC |
|---|---|---|---|
| Width: | 2000mm 3000mm 5000mm 6000mm 8000mm | Thickness: | 0.5-2mm |
| Sheet Density: | 0.939g/cm3 | Max. Capacity: | 500-800kg/h |
| High Light: | pvc sheet extruder,pe extrusion line,pe extrusion machine |
||

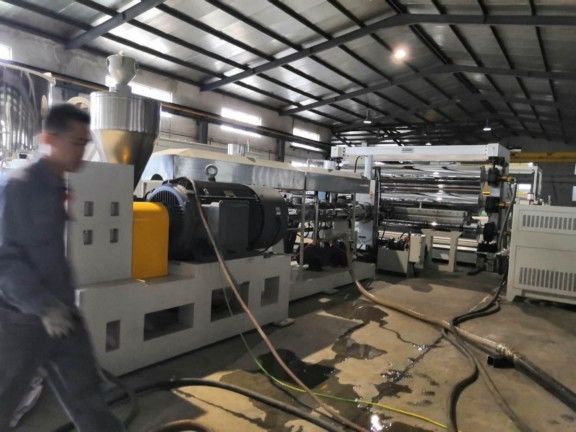

6000mm HDPE geomembrane sheet extrusion line ABA 3 layer 0.5-3mm
INTRODUCTION :
This PE PVC lower permeability Geomembrane Extrusion Line is specially designed for PE water drainage sheet .
Compared with the old two-step forming process , one step forming is more effective , less consumption , higher
intention . It is specially designed for water drainage sheet from calendar , haul off and winder and so on . The
thickness is from 0.8-1.5mm , width can reach to 8m .
SHEET SPECIFICATIONS:
| Material | PE | PE |
| Sheet thickness | 0.5-3mm | 0.5-3mm |
| Sheet width | 1000-4000mm | 5000-8000mm |
| No. | Item | Value | ||||||
| 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | ||
| 1 | Density (g/cm3) |
0.939 | ||||||
| 2 | Tensile properties | |||||||
| Yield strength (N/mm) |
11 | 15 | 18 | 22 | 29 | 37 | 44 | |
| Break strength (N/mm) |
20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| Yield elongation/% | 12 | |||||||
| Break elongation/% | ≥450 | |||||||
| 3 | Tear resistance/N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| 4 | Puncture resistance/N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| 5 | Stress crack resistance/h | ≥1500 |
||||||
APPLICATIONS:
1. Liners for water conveyance canals/water reservoirs/brine solutions/solar ponds/waste
conveyance/radioactive waste liquid/secondary containment of underground storage tank etc.
2. Seepage control within zoned earth dam and water proofing in coffer dam
3. Covers for solid waste land fields/waste liquid/pollution prevention
4. Structural supports as temporary dam
5. To line canal/swimming pool/tannery waste treatment ponds/acid tanks/floors etc.
GUARANTEDD TIME AND AFTER SALE SERVICE :
1. Warranty for machinery: 18 months for mechanical parts, 12 months for electrical parts.
2. The seller will dispatch one or two (1 or 2) engineers from the seller to the buyer's factory for installation and
commissioning and training. The buyer should bear the cost of air-tickets, hotel and food, and 80 USD/day for
each engineer.
