Place of Origin: | Qingdao, China |
---|---|
Brand Name: | Leader |
Certification: | CE ISO SGS GOST |
Model Number: | SPJ-95/44 |
Minimum Order Quantity: | 1 set |
Packaging Details: | Separate Wood Case and plywood pallet |
Delivery Time: | 90-105 Workdays |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 18 Sets / Year |
Name: | Parallel Twin Screw APET PETG Sheet Making Machine Pre Drying Crystallization | Material: | PET |
---|---|---|---|
Extruder Type: | Parallel Twin Screw Extruder | Thickness: | 0.15-1.2mm |
Width: | 300mm-1500mm | Max Capacity: | 180kg/h-650kg/h |
High Light: | pet extruder machine,pet sheet making machine,pet extrusion machine |

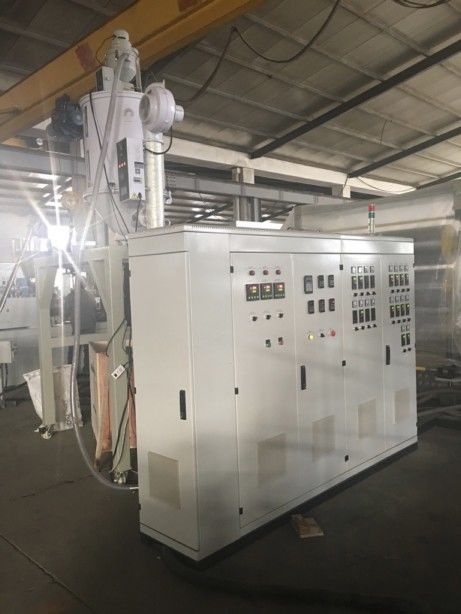

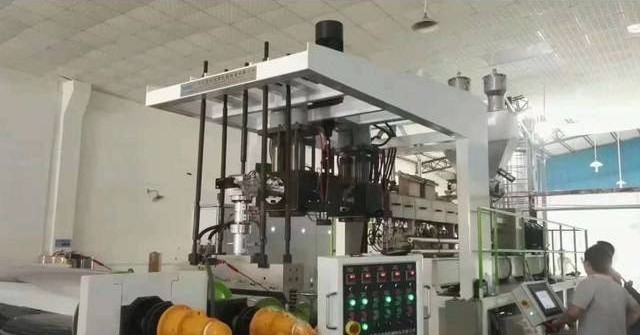

Parallel Twin Screw APET PETG Sheet Making Machine Pre Drying Crystallization
1. Summary Introduction
This line is specially used for producing PETG APET single layer or multy layer sheet or plate , suitable
in the fields of packaging , stationery , chemicals , construction , household applicances and so on .
2. Main Technical data :
Usual sheet width : 700mm, 900mm, 1020mm, 1200mm, 1300mm, 1400mm, 1500mm, 2100mm, or customised
Usual sheet thickness : 0.5-2mm 1.5-10mm ,6-20mm
Extruder : special screw structure , imported world-know thermocontroller , electronics , hard gear face
reducer to ensure high effective material extrusion capacity .
T type die head , suitable compression ratio to ensure uniform flow stability
Three roller calender ,according to the material properties , adopting vertical three-roller, oblique three-roller
horizontal three roller calender . Internal roller temperature control using a unique flow channel , so that the
stability of uniform distribution roller ..
3. Technical Parameters :
Extruder Model | LMSB-90/33 | LMSB-100/33 | LMSB-120/33 | LMS-100/65 | LMSB-120/65 |
Sheet Width | 300-610mm | 500-950mm | 1000-1500mm | 500-950mm | 1000-1500mm |
Sheet Thickness | 0.15-1.4mm | 0.15-1.4mm | 0.15-2mm | 0.25-1.4mm | 0.25-1.4mm |
Driving Motor | 75KW | 90KW | 132KW | 90KW,75KW | 132KW, 65KW |
Line Speed | 25m/min | 25m/min | 28m/min | 28m/min | 28m/min |
Capacity | 180kg/h | 300kg/h | 550kg/h | 450kg/h | 650kg/h |
