Polycarbonate Roofing Hollow Profile Sheet Extrusion Line With High Efficiency Sginle Screw Extruder

Basic Information
Place of Origin: Qingdao, China
Brand Name: Leader Machinery
Certification: CE ISO SGS
Model Number: SJ120/35+SJ45/33
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: plywood pallet
Delivery Time: 100 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 16 Sets / Year
Name: Polycarbonate Roofing Hollow Profile Sheet Extrusion Line With High Efficiency Sginle Screw Extruder Material: PC PP PE
Extruder: Sginle Screw Extruder SJ120/35+SJ45/30 Product Width: 1000mm-1220mm-2100mm
Product Thickness: 2-4-6-8-10mm Max. Capacity: 450kg/h
High Light:

pp film extrusion machine

,

pp sheet extrusion machine

,

pp hollow sheet extrusion line

Polycarbonate Roofing Hollow Profile Sheet Extrusion Line With High Efficiency Sginle Screw Extruder​



Introduction :

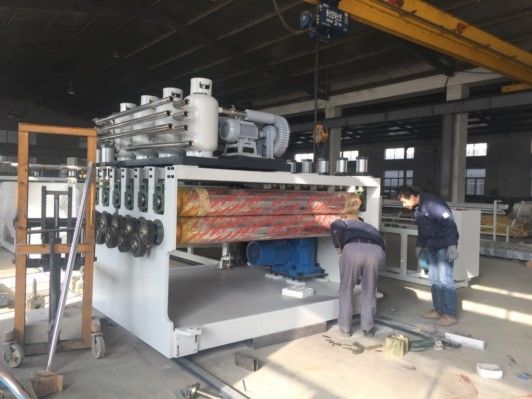

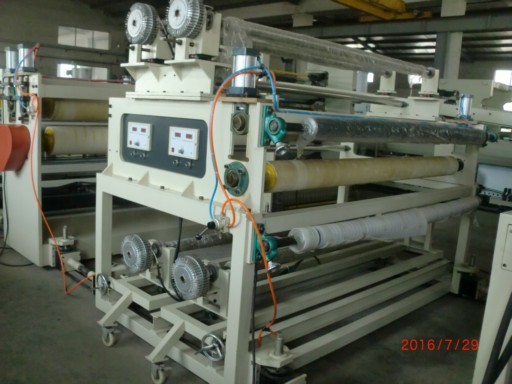

This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow
sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.



Characteristics of vacuum calibrator:


1. High quality mould steel or high strength Al-Mg Alloy
2. Special harden treatment and non-sticky coating on the surface.
3. Independently controlled vacuumize device and temperature controlling system.
4. Consist of vacuum sealing edge device.



Application:


PP/PE hollow sheet is light and high strength, moisture-proof, good environmental protection and re-fabrication

performance and can be used into the reusable container, packing case, clapboard, backing plate and culet.

PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/

public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors;

Noise barriers for highways and urban elevated road.



Main Technical Data:



PP/PE Hollow Sheet Extrusion Line Technical Data PC Hollow Sheet Extrusion Line Technical Data
Extruder model SJ-120,SJ-100 Extruder model SJ-120, SJ-45
Sheet width 2100mm,1220mm Sheet width 2100mm
Sheet thickness 2-8mm,2-8mm Sheet thickness 4-40mm
Max capacity 350kg/h,200kg/h Max capacity 450kg/h
Main motor power 132kw Main motor power 132kw







Polycarbonate Roofing Hollow Profile Sheet Extrusion Line With High Efficiency Sginle Screw Extruder 0
