| Place of Origin: | QingDao, ShanDong, China |
|---|---|
| Brand Name: | QingDao Leader |
| Certification: | CE, ISO9001-2000; BV |
| Model Number: | LSJ 65/132 |
| Minimum Order Quantity: | 1 sets |
| Price: | US$66000-68000/SET |
| Packaging Details: | Wooden Pallet/Cases with Streching Films |
| Payment Terms: | L/C, T/T, Western Union |
| Condition: | New | Transport Package: | Wooden Pallet/Cases With Streching Films |
|---|---|---|---|
| Origin: | QingDao, ShanDong, China | Customized: | Customized |
| Guaraneed Time: | 12 Months | Main Electrical Parts: | ABB, Omron, Rkc, Schneider, Siemens |
| Extruder Model: | High Efficiency Single Screw Extruder | Three Roller Calendars: | Vertical Type, Alloy Steel Material |
| High Light: | Wood Plastic Profile Production Line,Single Screw Plastic Profile Production Line,Single Screw wood plastic production line |
||
Name of equipments |
Spec./Model |
YF210 |
YF240 |
YF500 |
YF800 |
Extruder |
Extruder model |
LSZ51/105 |
LSZ65/132 |
LSZ80/156 |
LSZ92/188 |
Dimension(m) |
3.3*1.45*2.1 |
3.45*1.45*2.25 |
5*1.54*2.28 |
6.2*1.55*2.7 |
|
Capacity(kg/h) |
50-150 |
80-250 |
100-350 |
200-600 |
|
Installed paower(KW) |
25 |
64 |
115 |
168 |
|
Sizing table |
Dimension(m) |
4.2*1*1.1 |
5.8*1.*1.1 |
6.5*1.5*1.1 |
6.5*1.5*1.1 |
Installed paower(KW) |
18 |
24 |
30 |
43 |
|
Hauling and cutting machine |
Dimension(m) |
5.8*1.1*1.7 |
5.8*1.1*1.7 |
3.1*1.3*1.7 2.2*1.45*1.8 |
3.55*1.85*1.6 2.5*1.8*1.6 |
Hauling speed (m/min) |
0-4 |
0-4 |
0-3 |
0-2 |
|
Hauling force (N) |
30000 |
30000 |
35000 |
50000 |
|
Max cutting area and width (mm) |
240*65 |
240*65 |
500*80 |
800*80 |
|
Installed power (KW) |
6 |
6 |
8 |
8 |
|
Stacker |
Stacking length(mm) |
6 |
6 |
6 |
6 |

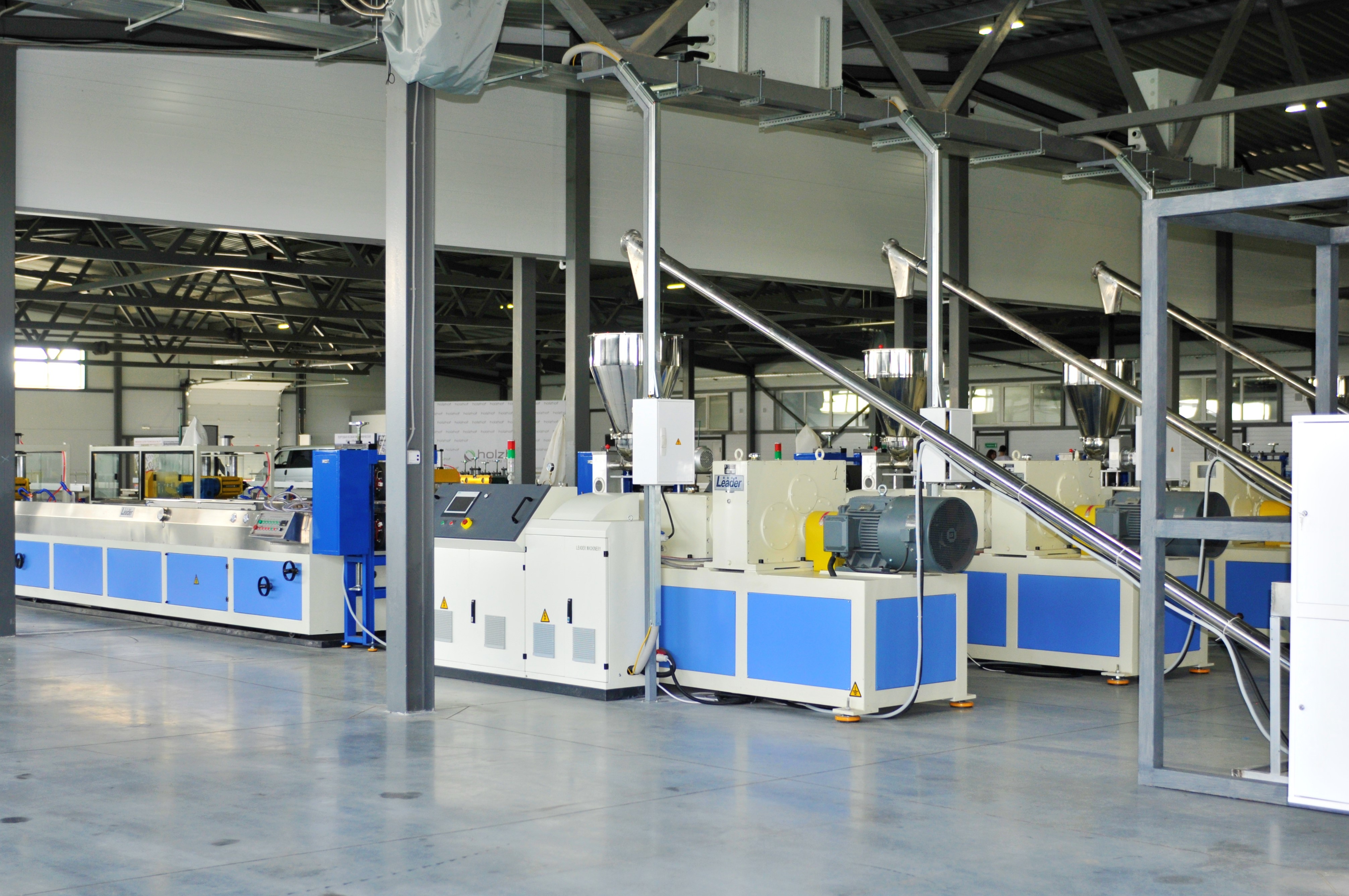

MACHINE PICTURES:
PACKAGING & SHIPPING:
COMPANY CERTIFICATIONS:
OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION
1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.
4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.
5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.
7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.
8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
