| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | Special Designed LSJ120/35 |
| Minimum Order Quantity: | 1 Set |
| Price: | negotiable |
| Packaging Details: | plywood pallet and transparent film package |
| Delivery Time: | 105 Workdays |
| Payment Terms: | T/T, , Western Union |
| Supply Ability: | 16 Sets / Year |
| Name: | PC PP Fully Automatic Hollow Sheet Extrusion Line 650kg/H Max Capacity | Material: | PC PP PE |
|---|---|---|---|
| Extruder: | LSJ120/35 | Product Width: | 1220mm, 2100mm, |
| Product Thickness: | 4-6mm 8-10mm | Max. Capacity: | 650kg/h |
| Main Electrical Parts: | ABB , Omrom, Schneider , Delix ,Rkc | HS Code: | 8477209000 |
| High Light: | pp film extrusion machine,pp sheet extrusion machine,pp hollow sheet extrusion line |
||
Width of 2100mm PC PP Plastic Hollow Multiwall Sheet Etrusion Line
PC PP Fully Automatic Hollow Sheet Extrusion Line 650kg/H Max Capacity

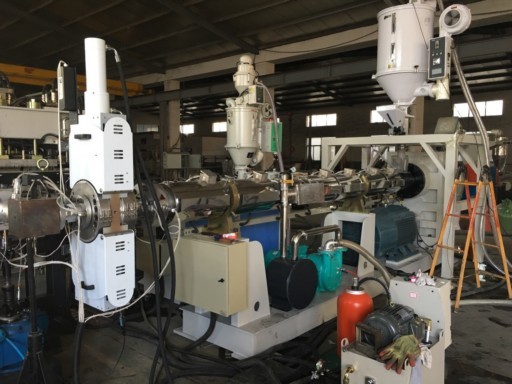

This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow

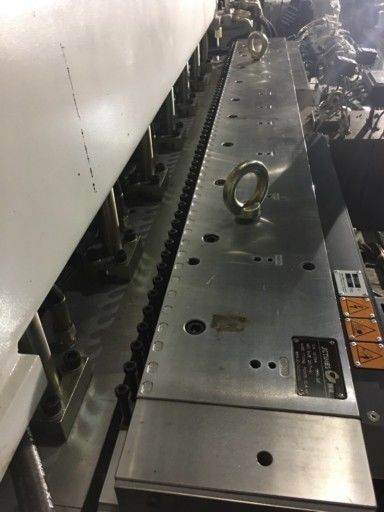

Sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table,
second haul off machine, trimming and length-settled cutting units and stacker etc.
PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
Characteristics of vacuum calibrator :
1. Special harden treatment and non-sticky coating on the surface.
2. High quality mould steel or high strength Al-Mg Alloy
3. Consist of vacuum sealing edge device.
4. Independently controlled vacuumize device and temperature controlling system .
Main Technical Data:
| PP/PE Hollow Sheet Extrusion Line Technical Data | PC Hollow Sheet Extrusion Line Technical Data | ||
| Extruder model | SJ-120,SJ-100 | Extruder model | SJ-120, SJ-45 |
| Sheet width | 2100mm,1220mm | Sheet width | 2100mm |
| Sheet thickness | 2-8mm,2-8mm | Sheet thickness | 4-40mm |
| Max capacity | 350kg/h,200kg/h | Max capacity | 450kg/h |
| Main motor power | 132kw | Main motor power | 132kw |
