| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | LMSB-150/35 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | plywood pallet and transparent film package |
| Delivery Time: | 90 Workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 Sets / Year |
| Name: | High Speed PET Sheet Making Machine PET Extrusion Machinery Heavy Duty | Material: | PET |
|---|---|---|---|
| Extruder Type: | Single Screw Extruder | Thickness: | 0.15-1.5mm,0.2-2mm |
| Width: | 600mm-800mm -1200mm | Max Capacity: | 500kg/h |
| Origin: | Qingdao Of China | HS Code: | 8477209000 |
| High Light: | pet extruder machine,pet sheet making machine,pet extrusion machine |
||

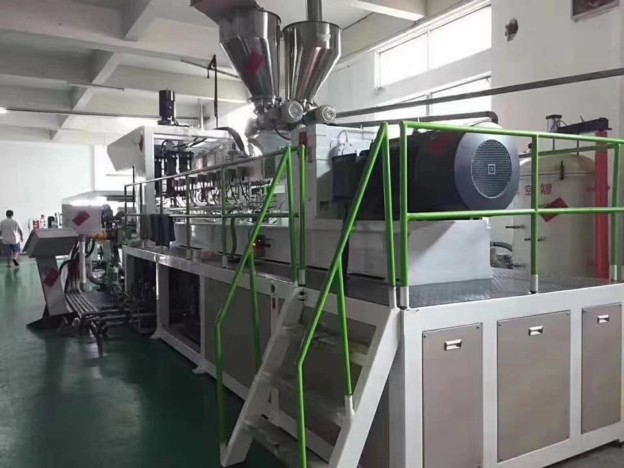

PET Material Sheet Extrusion Line Twin Screw Extruder Dryer-Free Vented
High Speed PET Sheet Making Machine PET Extrusion Machinery Heavy Duty
1. Summary Introduction :
The PET Sheet Extrusion Line is specially designed for PET thermoforming product , with high speed and high efficiency .
Widely used in packaging industry of mono/multilayer sheet . The technology of single screw extruding with low dew-point
dehumidifying system for high quality products in high transparency without dubble , which will be very important for
thermoforming .
2. Raw Material for PET Sheet Making Machine :
2.1 can be virgin plastic PET material
2.2 can be recyclable material, like PET bottle Flakes .
3. Technical Parameters :
| Model | Multi Layer | Single Layer | High-efficient |
| Extruder Specification | sj75&36/40-1000 | SJ75/40-1000 | SJ95&52/44-1500 |
| Product Thickness | 0.15-1.5mm | 0.15-1.5mm | 0.15-1.5mm |
| Main Motor Power | 110kw/45kw | 110kw | 250kw/55kw |
| Max Extrusion Capacity | 500kg/h | 450kg/h | 800-1000kg/h |
