| Place of Origin: | Qingdao of China |
|---|---|
| Brand Name: | Leader |
| Certification: | ISO CE SGS GOST |
| Model Number: | SJ90/33-SJ65/33 |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | plywood pallet |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20sets/year |
| Model NO.: | SJ90/33-SJ65/33 | Condition: | New |
|---|---|---|---|
| Sheet Width: | 700-1100mm | Sheet Thickness: | 1.5-10mm |
| Sheet Applications: | Packing, Stationery, Chemicals, Construction Etc | Extruder Model: | High Efficiency Single Screw Extruder 90/33 SJ65/33 |
| Die Head: | Jc-Times Brand T Type Mould | Main Electrical Parts: | ABB, Omron, Rkc, Schneider, Siemens, Delixi |
| High Light: | pp extrusion machine,pp sheet making machine |
||

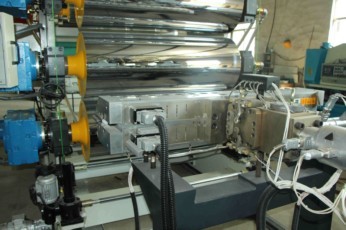

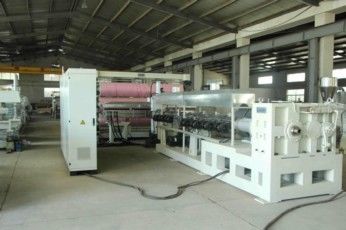

This line is specially designed for producing PP/PE/HIPS/PLA single layer or multi-layer sheet or plate,
suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
Usual sheet thickness is 1.5-10mm , sheet width is 700-1200mm , This line adopts high efficiency screw
with speical structure , imported wowrld-known thermocontrollers , electronics , hard gear face reducer
to ensure high effective material extrusion capacity .
Main Technical Parameters as following :
| Extruder Model | LMSB-90/33 | LMSB-100/33 | LMSB-120/33 | LMS-100/65 | LMSB-120/65 |
| Sheet Width | 300-610mm | 500-950mm | 1000-1500mm | 500-950mm | 1000-1500mm |
| Sheet Thickness | 0.15-1.4mm | 0.15-1.4mm | 0.15-2mm | 0.25-1.4mm | 0.25-1.4mm |
| Driving Motor | 75KW | 90KW | 132KW | 90KW,75KW | 132KW, 65KW |
| Line Speed | 25m/min | 25m/min | 28m/min | 28m/min | 28m/min |
| Capacity | 180kg/h | 300kg/h | 550kg/h | 450kg/h | 650kg/h |
