Place of Origin: | Qingdao China |
---|---|
Brand Name: | Leader |
Certification: | CE ISO SGS GOST |
Model Number: | SJ120/35 |
Minimum Order Quantity: | 1 Set |
Price: | negotiable |
Packaging Details: | plywood pallet |
Delivery Time: | 90 Workdays |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 15 Sets / Year |
Name: | High Capacity PP PS Sheet Extrusion Line Standard For Packing Industry | Extruder: | Single Screw EXtruder |
---|---|---|---|
Product Width: | 700mm-2200mm | Product Thickness: | 0.2-2mm,1.5-10mm |
Max. Capacity: | 450kg/h | Material: | PP PS PE ABS |
High Light: | pp extrusion machine,pp sheet making machine |
PE PP PS Thermoforming Sheet / PP Stationery Extrusion Line Low Energy Consumption

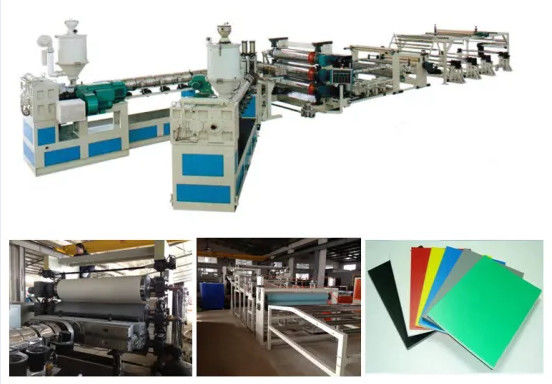

High Capacity PP PS Sheet Extrusion Line Standard For Packing Industry
This line is specially used for producing PP/PE/PS/ABS single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
Main technical data:
1. Usual sheet width:
700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
2. Usual Sheet thickness
: 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm
Production Flows:
Vacuum feeding machine | 1 set |
Hopper dryer | 1set |
Single Screw Extruder | 1set |
Hydraulic filter exchanging unit and melt pump | 1 set |
T-type Die Head | 1 set |

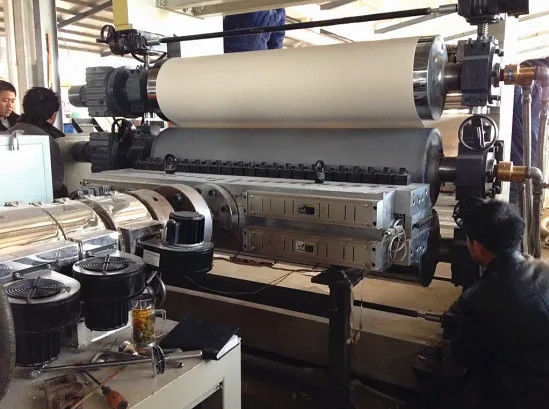

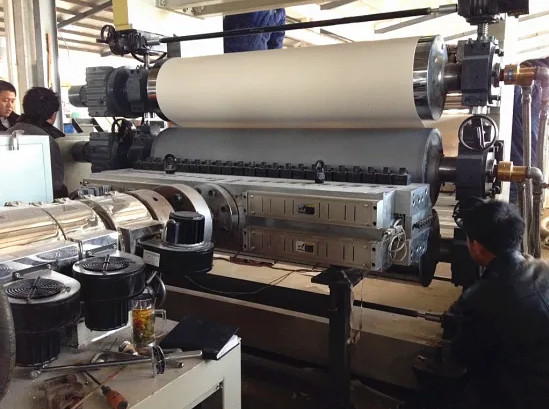

Three-roller Calendar | 1 set |
Cooling Frame & Edge Cutting Knives | 1 set |
haul off machine and cutting machine | 1 set |
Double position winder | 1 set |
Machine Usage Description:
Vacuum Thermoforming Polystyrene PS PP sheet making machine, Polystyrene PS PP sheet
extrusion machine,Polystyrene PS sheet production line
produce PP PS single layer or multi-layers sheet or plate. The PP PS sheet has wide application
in the Vacuum themoforming field. The PP PS sheet can be manufactured to plastic cups, tray, boxes
