| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJ75/44 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | plywood pallet |
| Delivery Time: | 75-90 workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 15 Sets / Year |
| Name: | PET Thermoforming Sheet Extrusion Line Twin Screw Extruder Continuous Working | Material: | PET |
|---|---|---|---|
| Extruder Type: | Twin Screw Extruder | Thickness: | 0.15-1.5mm |
| Width: | 1000mm | Max Capacity: | 400kg/h |
| High Light: | pet extruder machine,pet sheet making machine,pet extrusion machine |
||
PET Extrusion Line Unique Screw Continuous Working Multi Components

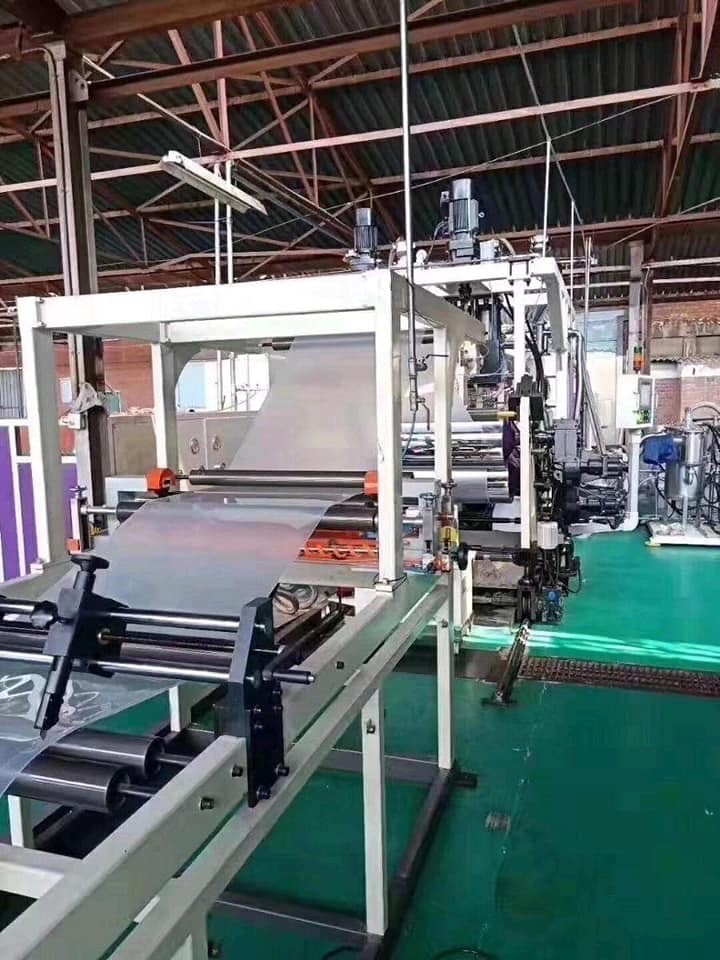

PET Thermoforming Sheet Extrusion Line Twin Screw Extruder Continuous Working
Use parallel twin screw extrusion line for PET sheet
Equipped with degassing system, so no need drying or crystalizing unit
Multi components dosing feeder can control the percentage of virgin material, recycling material
and master bacth precisely.
This sheet is widely used for thermoforming packing industry.
| Model | Multi Layer | Single Layer | High-efficient |
| Extruder Specification | sj75&36/40-1000 | SJ75/40-1000 | SJ95&52/44-1500 |
| Product Thickness | 0.15-1.5mm | 0.15-1.5mm | 0.15-1.5mm |
| Main Motor Power | 110kw/45kw | 110kw | 250kw/55kw |
| Max Extrusion Capacity | 500kg/h | 450kg/h | 800-1000kg/h |
