Name: | Single Screw TPU Sheet Extrusion Line Computerized Controlled | Material: | TPU |
---|---|---|---|
Extruder: | Single Screw Extruder | Product Width: | 2000mm |
Product Thickness: | 0.5-6mm | ||
High Light: | plastic sheet extrusion machine,film and sheet extrusion |

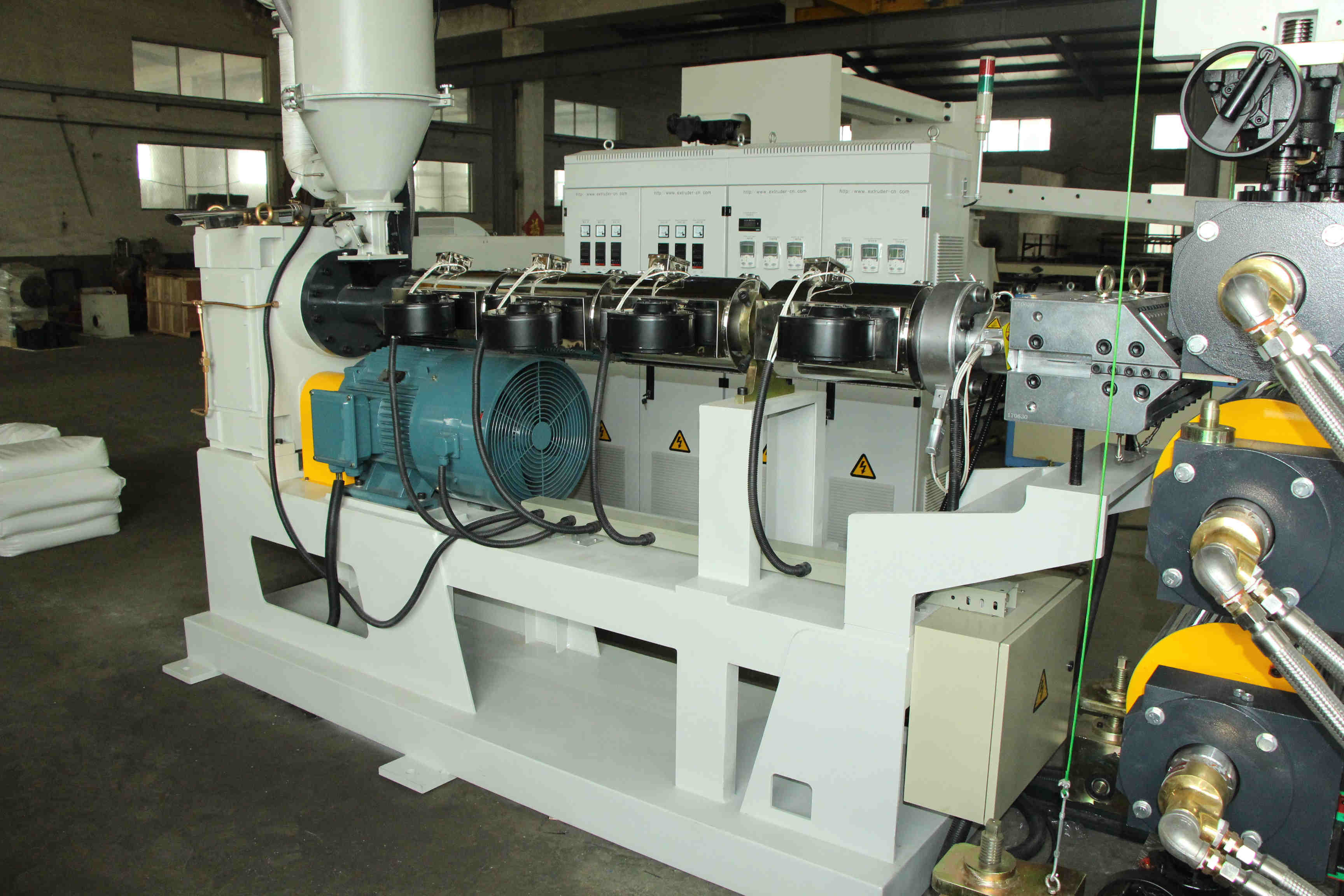

Single Screw TPU Sheet Extrusion Line Computerized Controlled
Equipment Discreption
1)TPU sheet extrusion line: Material dehumidifying, loading, dryer, extruder, mesh-changing unit,
melt metering pump, sheet mould, calender, roller-temperature unit, cooling unit, edge-trimming, haul-off, winder and so on.
2)According to different size of sheet, the mould can be adjustable automatically, automatical thickness Gauge.
Applicaiton of TPU sheet extrusion line
TPU product is mainly used in field of Aviation, Military, Automoile, Battery, Solar energy, trains and so on.
Model | 150/120/90-180 | 150/60-1200 | 130/60-1000 | 1200-1000 | 100-800 |
Product width | 1500mm | 1000mm | 900mm | 800mm | 600mm |
Product thickness | 0.3-2mm | 0.3-2mm | 0.3-2mm | 0.2-2mm | 0.1-0.8mm |
Design capacity | 800-1000kg/hr | 800kg/hr | 550-600kg/hr | 350-400kg/hr | 200-250kg/hr |
Design line speed | 40M/min | 40M/min | 30M/min | 25M/min | 20M/min |
Calender diameter | Φ700mm | Φ700mm | Φ500mm | Φ500mm | Φ400m |
