PP PE PVC ABS PVDF Thick Plate Extrusion Line

Basic Information
Place of Origin: Qingdao China
Brand Name: Leader
Certification: CE ISO SGS GOST
Model Number: SJ-130/33
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood pallet
Delivery Time: 90-105 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 Sets / Year
Name: PP PE PVC ABS PVDF Thick Plate Extrusion Line Material: PE PP PVC ABS PVDF
EXtruder Type: Single Extruder Product Width: 1000mm
Product Thickness: 3-30mm Max. Capacity: 400kg/h
Application: Plates Condition: New
High Light:

sheet extruder machine

,

pvc extruder machine

PP PE PVC ABS PVDF Thick Plate Extrusion Line​

Width of 1000mm PP PE PVC ABS PVDF Thick Plate / Board Extrusion Line



APPLICATIONS:


The boards can be widely used in chemical industry (chemical containers), food industry(food containers),

construction industry (architecture boards), transportation industry, used as fishing tank, swimming pools

and can replace stainless steel and other material.


COMPONENTS OF THIS COMPLETE PLANT



Item Description Data
1 Raw material vacuum feeding machine 1 set
2. High efficiency single screw extruder 150/33 with PLC control 1 set
3 Hydraulic exchanging unit 1 set
4 T-type die head-JC-times brand 1 set
5 Three roller calendar-vertical type, alloy steel material 1 set
6 Rollers theromocontrolling machine-oil circulation cooling 1 set
7 Cooling frame/rollers conveyor 1 set
8 Trimming units-cross saw cutting units 1 set

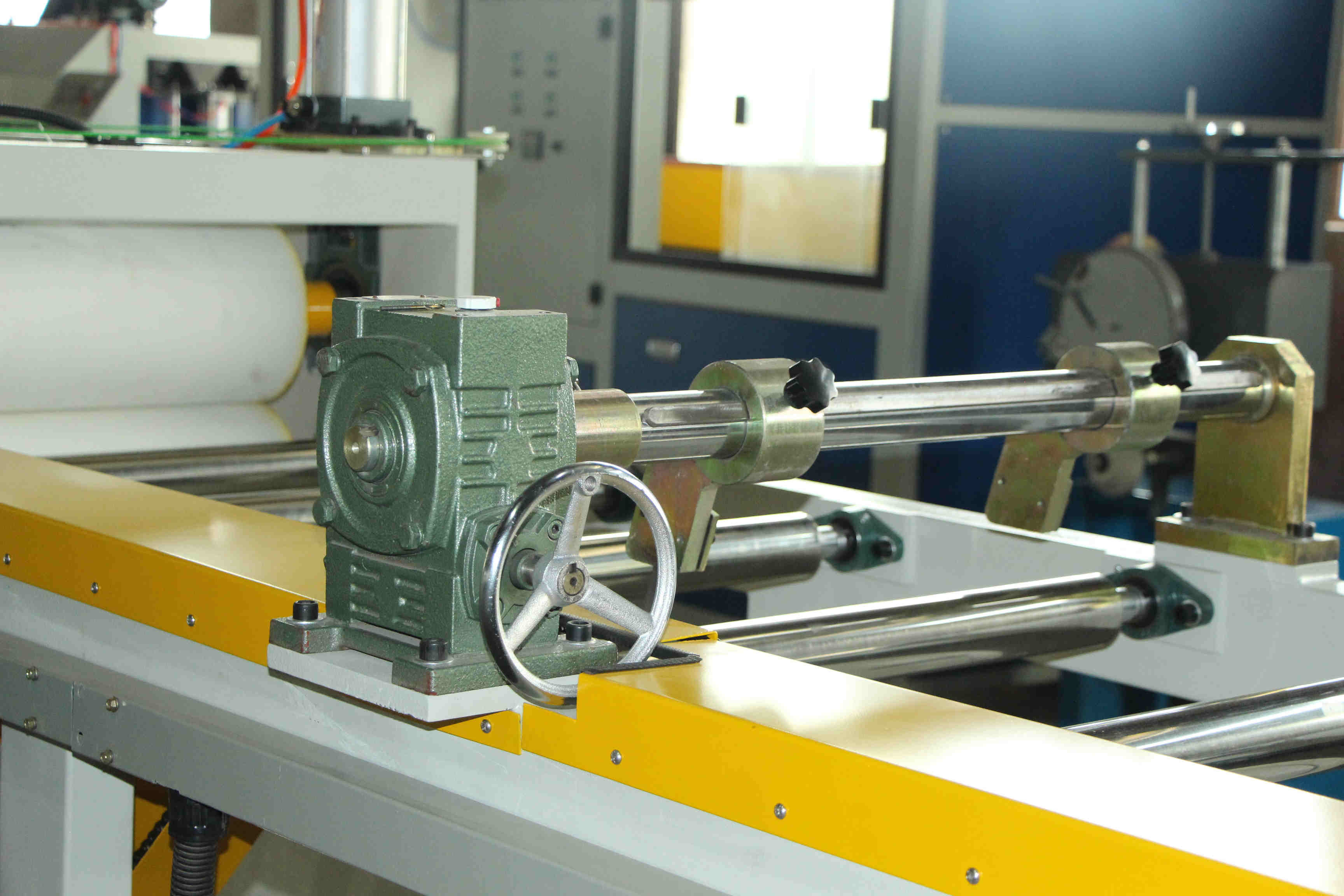

9 Haul off machine-2 pieces of NBR rubber rollers 1 set
10 Plastic cutting machine-guillotine and saw cutting machine 1 set
11 Stacker 1 set
12 Water chiller 1 set

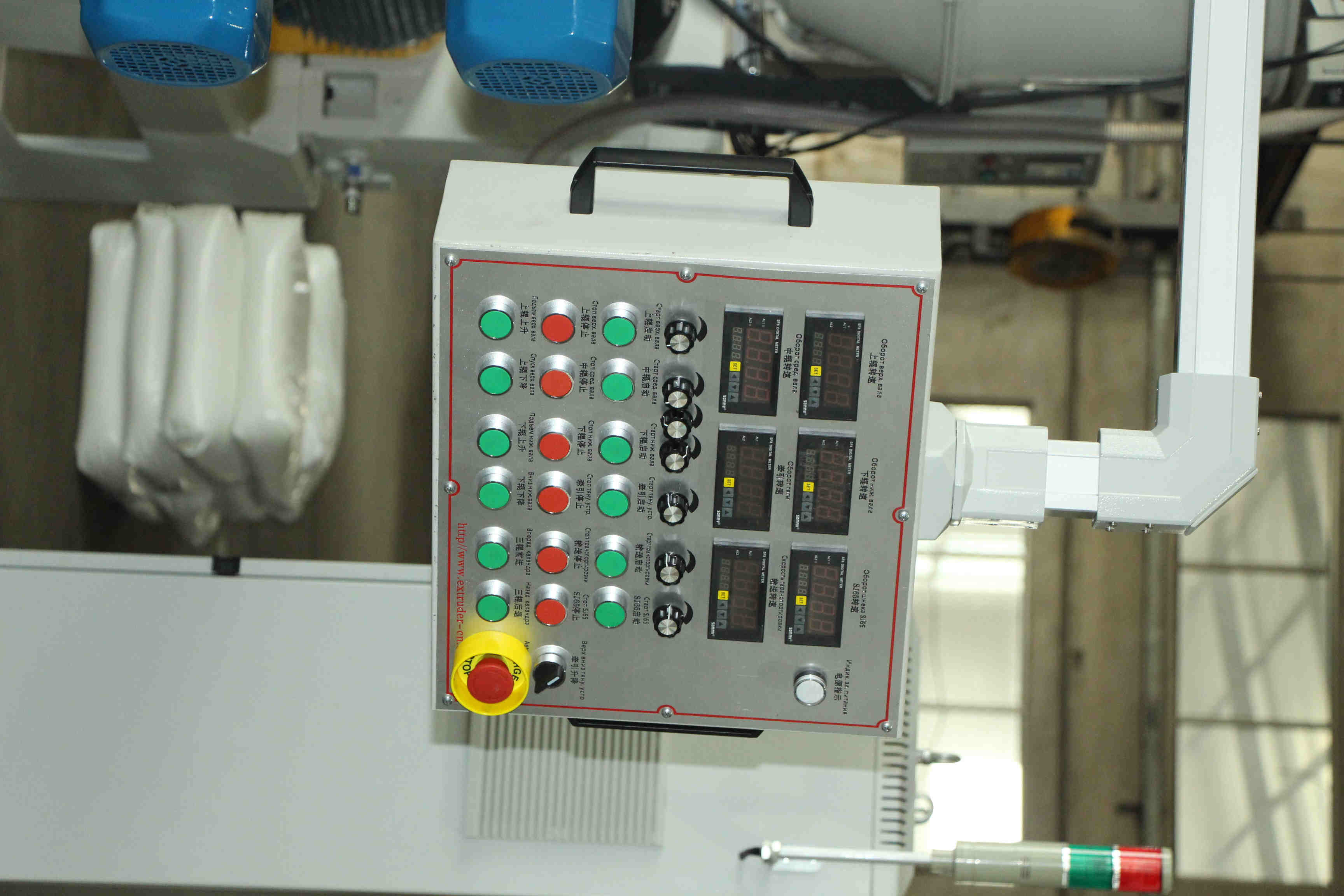

13 Electrical cabinet 1 set



PP PE PVC ABS PVDF Thick Plate Extrusion Line 0PP PE PVC ABS PVDF Thick Plate Extrusion Line 1
