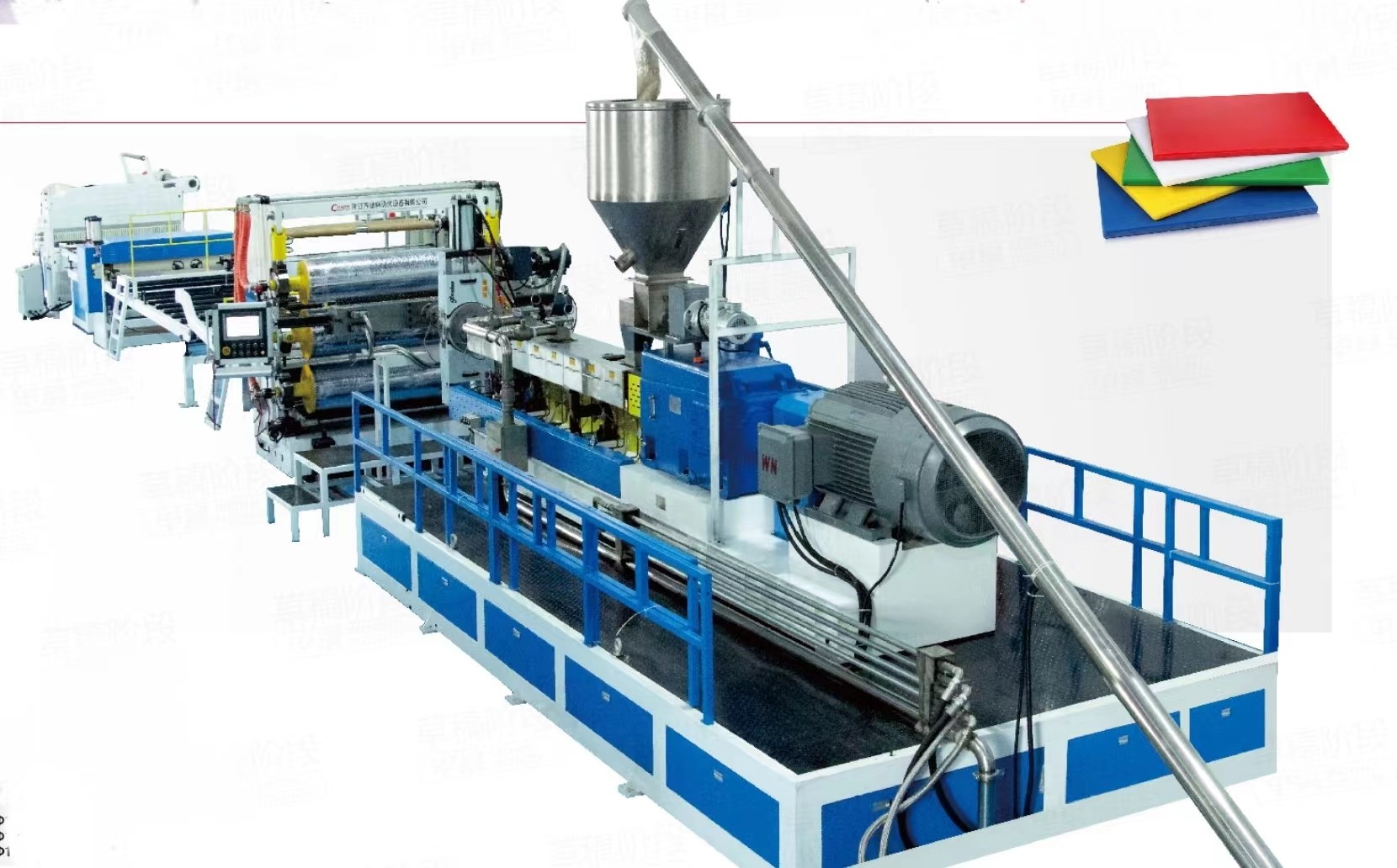

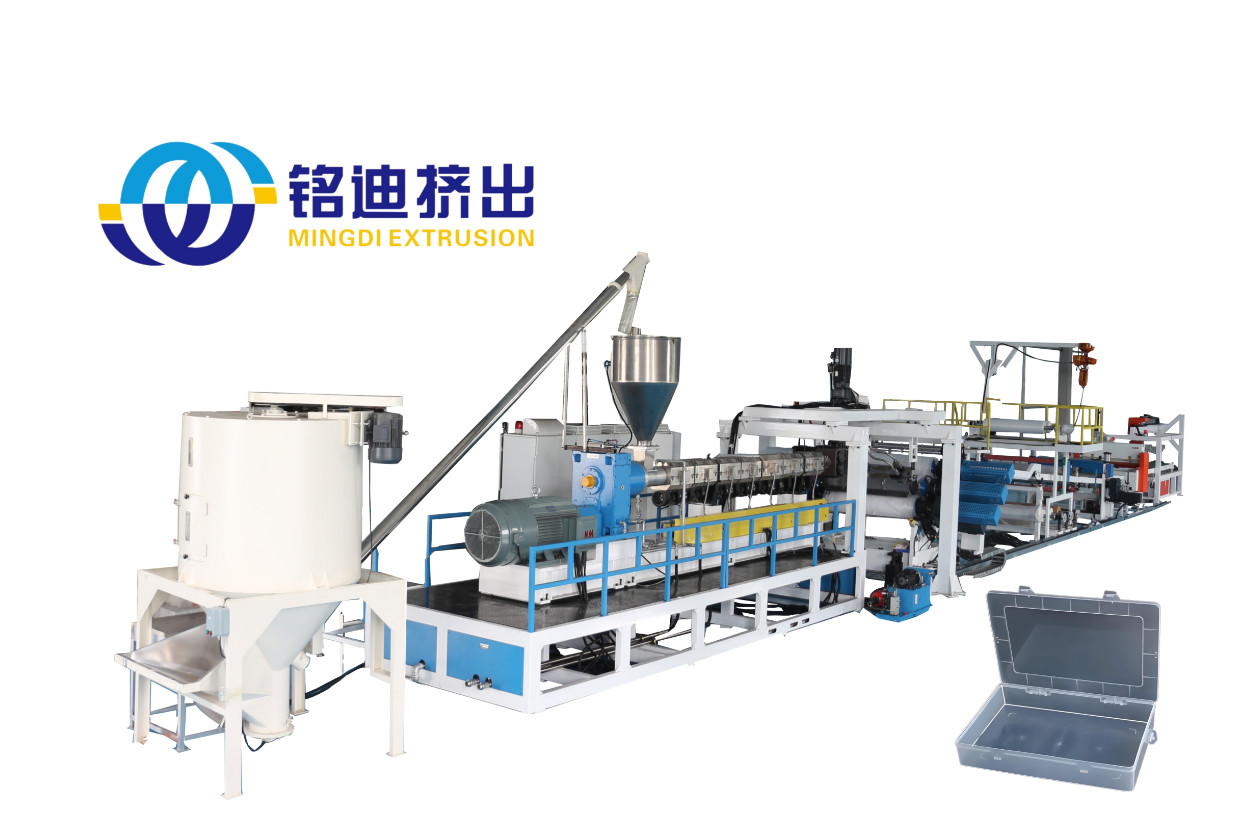

Thick ABS PP PE Plastic Board Extrusion Line With Precision Thickness Control

Basic Information

Place of Origin:	ZheJiang; China
Brand Name:	MINGDI
Certification:	CE,ISO
Model Number:	MGL130-1500; /150-1800; /170-2600

Minimum Order Quantity:	one set
Price:	$130000-160000$
Packaging Details:	PE film & wooden pallet packaging
Delivery Time:	90days
Payment Terms:	T/T
Supply Ability:	200 sets per year

Get Best Price Chat Now

Material:	PP/PE/ABs	Width:	1200mm/1500mm/2000mm
Thickness:	1-10mm/3-30mm/3-30mm	Extruder:	ɸ130/35；150/35；170/35
Capacity:	550kg/h; 650kg/h; 800kg/h	Applicable Industries:	Chemical Industry; Electric Power And Other Industries
Core Components:	Extrusion Machine, Screen Changer, Pressure Sensor, Metering Pump, Extrusion Die, Three-roll Calender, Drawing Machine, Automatic Cutting System, Electrical Control System	Selling Point:	Wide Application; High Quality
Warranty:	One Year	Core Components Warranty Period:	One Year
Linear Velocity:	60m/min
Highlight:	pe plastic board extrusion line , thick plastic board extrusion line , thick plastic sheet extrusion line

Thick ABS PP PE Plastic Board Extrusion Line With Precision Thickness Control

Product Specifications

Attribute	Value
Material	PP/PE/ABS
Width	1200mm/1500mm/2000mm
Thickness	1-10mm/3-30mm/3-30mm
Extruder	ɸ130/35；150/35；170/35
Capacity	550kg/h; 650kg/h; 800kg/h
Applicable industries	Chemical industry; electric power and other industries
Core components	Extrusion machine, screen changer, pressure sensor, metering pump, extrusion die, three-roll calender, drawing machine, automatic cutting system, electrical control system
Warranty	One year
Core components warranty period	One year
Linear velocity	60m/min

Key Features

Efficient Production Capacity	The use of high-performance extruders ensures high yield and stable material extrusion to meet the needs of large-scale production.
Precision Thickness Control	The production line is equipped with a high-precision thickness control system to ensure the uniformity and accuracy of sheet thickness.
Material Adaptability	Suitable for a variety of plastic raw materials, such as PE, PP, PVC, ABS, etc., to meet the needs of different industries for thick sheet metal.
Energy-Saving and Environmental Protection Design	The use of energy-saving extrusion technology and optimized process flow significantly reduces energy consumption, reduces waste, and aligns with the concept of green production.
High Strength Plate	The production line can produce thick plates with high strength and good impact resistance, suitable for applications with high load bearing requirements.

Extrusion Process

Material Feeding: Raw plastic material, typically in the form of pellets, granules, or flakes, is loaded into a hopper. Additives like colorants and UV inhibitors can be mixed in at this stage.
Melting and Mixing: The material is gravity-fed from the hopper into the extruder's barrel. A rotating screw inside the barrel melts the plastic through a combination of heat from external heaters and friction.
Extrusion: The molten plastic is pushed by the screw through a screen pack and a breaker plate to remove impurities and stabilize the flow. It then enters a flat die, which shapes the molten polymer into a continuous, flat sheet.
Cooling and Calendering: The hot sheet exits the die and is immediately fed into a series of cooling rollers, also known as a calendering system. These rollers cool the sheet, solidify it, and precisely control its final thickness and surface quality.
Trimming and Finishing: The edges of the sheet are trimmed to the desired width. The finished sheet is then either cut into specific lengths or wound onto a roll for storage and transport.
