Zhejiang Mingdi Extrusion Machinery Co.,Ltd
| Place of Origin: | ZheJiang, China |
|---|---|
| Brand Name: | MINGDI EXTRUSION |
| Certification: | CE,ISO |
| Model Number: | Twin screw extruder |
| Minimum Order Quantity: | one set |
| Price: | FOB$150000-$200000 |
| Packaging Details: | PE film & wooden pallet packaging |
| Delivery Time: | 85days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets per year |
| Material: | APET, PETG, CPET, PLA | Width: | 650-1550mm |
|---|---|---|---|
| Thickness: | 0.05-2.5mm | Capcity: | 400-1200kg/h |
| Core Selling Point: | Nocrystallizer & Dehumidifier,double Vents | Warranty Oeriod: | One Year |
| Applicable Industry: | Food Packaging Industry, Toy Industry, Building Materials Industry, Advertising Industry, Etc | Production Speed: | 8-60meter/minute |
| Highlight: | pla twin screw extrusion machine,apet twin screw extruder machine,apet twin screw extrusion machine |
||
| Material Compatibility | APET, PETG, CPET, PLA |
| Width Range | 650-1550mm |
| Thickness Range | 0.05-2.5mm |
| Production Capacity | 400-1200kg/h |
| Core Features | No crystallizer & dehumidifier required, double vents design |
| Warranty | One year |
| Production Speed | 8-60 meters/minute |
| Applications | Food packaging, toys, building materials, advertising, and more |

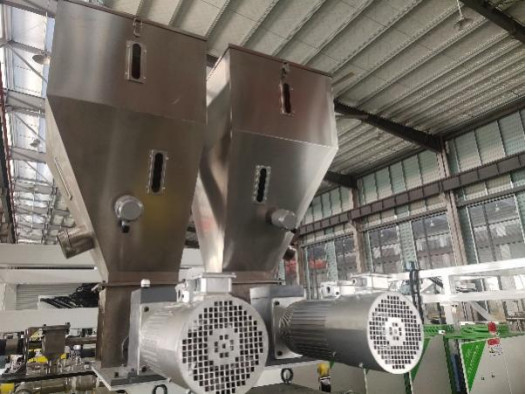

| Feeding Form | Screw-type |
| Feeding Capacity | 1000kg/h |
| Control Mode | Variable frequency motor speed control |
| Converter | SIEMENS 3KW with Ethernet control technology |
| Feed Rate | 1-30kg/h |
| Material Conveying Method | Screw type |
| Drive Motor | 0.4KW Siemens servo motor |
| Control Method | Siemens servo speed control |
| Brand | Touya |
| Structure | 175mm full-network double-column with hydraulic station |
| Heating Zones | Two zones |
| Heating Power | Approx. 10kw |
| Brand | JCTimes |
| Rated Speed | 8-60 rpm |
| Model Number | E90 (371CC) |
| Gearbox & Motor | SIEMENS reducer with 7KW servo motor |
| Brand | JCTimes |
| Structure | Hanger runner |
| Final Product Width | 860mm |
| Final Product Thickness | 0.2-1.0mm |
| Heating Zones | 8 zones |
| Heating Power | 30KW |

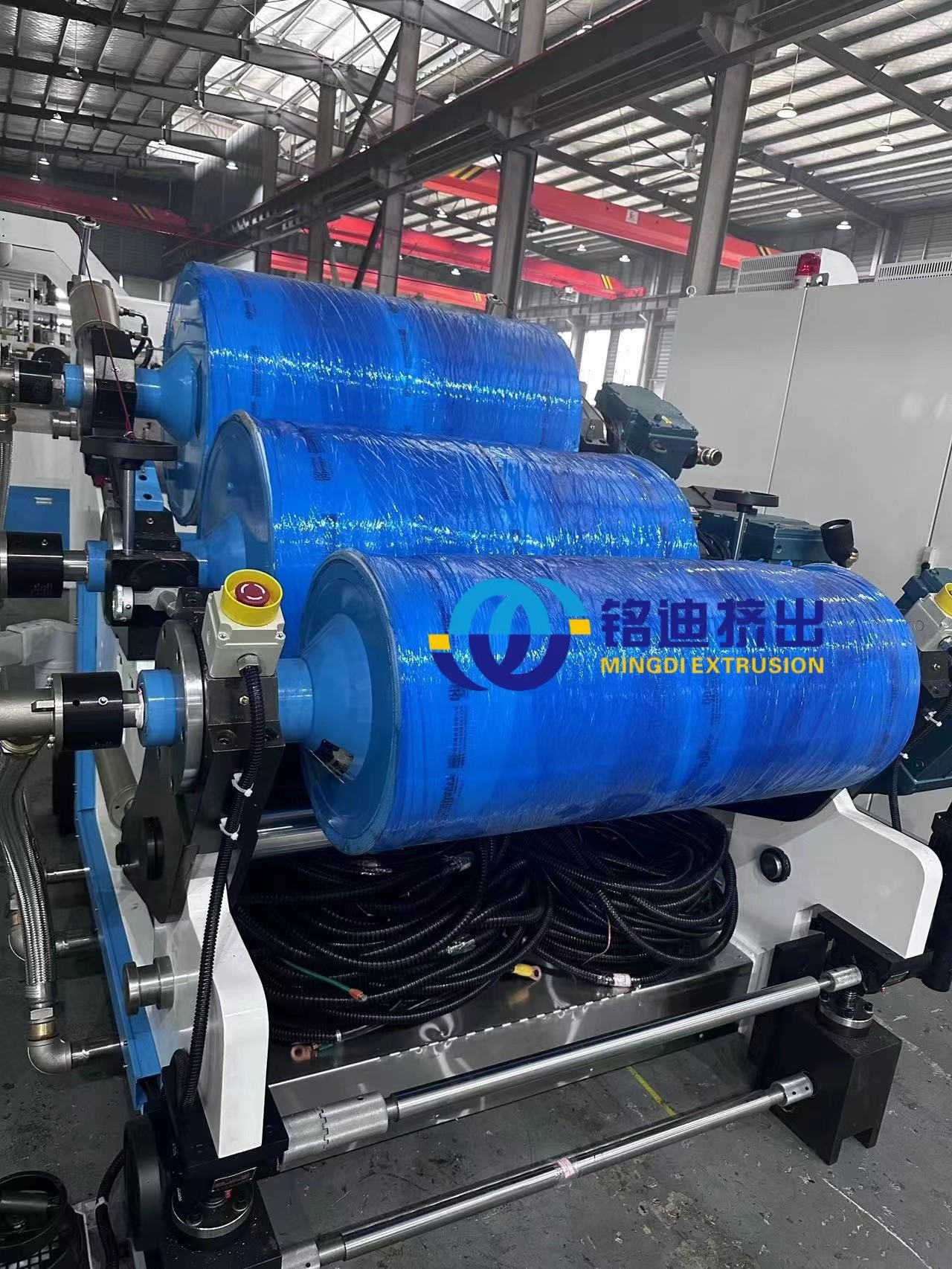

| Roller Dimensions | Lower: Ø400mm, Middle/Upper: Ø600mm |
| Roller Width | 1200mm |
| Material | Alloy steel with mirror finish |
| Hardness | ≥HRC60-62 |
| Drive System | 3 x 7KW SIEMENS servo motors with gearboxes |
| Linear Velocity | 6-60m |
| Edge Trimming | 1 group with 3 adjustable rotary cutters |
| Haul-off Roller | Ø200mm x 1200mm with nitrile rubber surface |

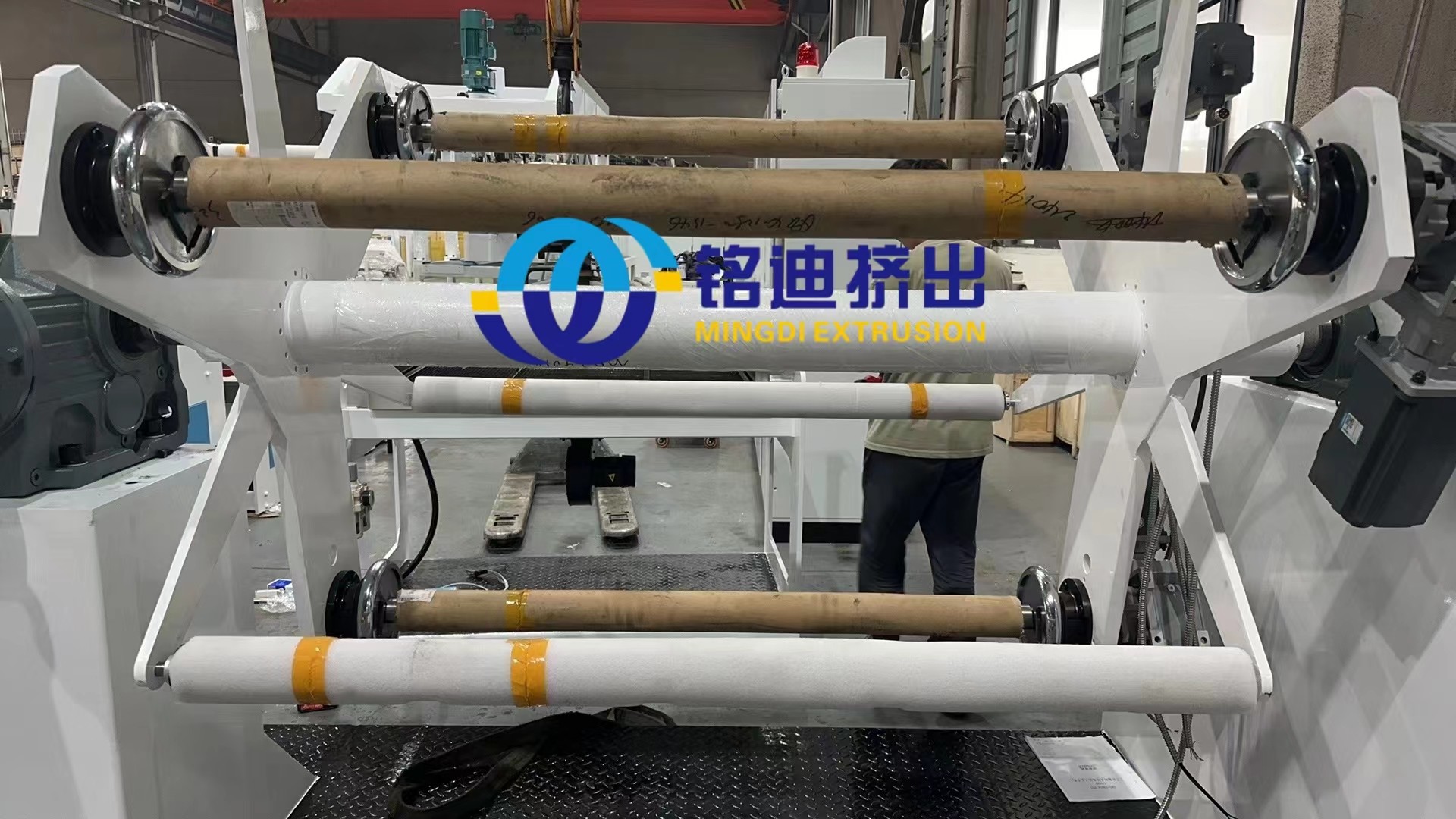

| Winding System | Flip-type double-station with 3"/6" air-expanded shaft |
| Max Winding Diameter | 1200mm |
| Control System | PLC |
| CPU | SIEMENS S7-1500 |
| HMI | SIEMENS 12-inch |
| Components | SIEMENS inverters, miniature circuit breakers, Schneider relays, Swiss Galle solid state relays |
Produces sheets of different thicknesses and widths to meet diverse material requirements.
Intelligent control system ensures stable production process and high product accuracy.
Optimized energy allocation reduces consumption while meeting green production standards.
Suitable for food, electronics, pharmaceuticals, stationery, cosmetics, and other industries.
Comprehensive technical support and after-sales service ensure worry-free operation.
PLA Sheet: Renewable biodegradable material ideal for packaging vegetables, fruits, eggs, baked goods, flowers, and daily chemical products.
PET Single/Multi-layer Sheet: Advanced production line with high capacity and precision, low power consumption, and stable high-speed production. Widely used for thermoforming, printing sheets, agricultural trays, furniture decoration, medical supplies, and plastic cups.
