Zhejiang Mingdi Extrusion Machinery Co.,Ltd
| Place of Origin: | ZheJiang, China |
|---|---|
| Brand Name: | MINGDI EXTRUSION |
| Certification: | CE,ISO |
| Model Number: | 75/85 |
| Minimum Order Quantity: | one set |
| Price: | 140000-200000$ |
| Packaging Details: | PE film & wooden pallet packaging |
| Delivery Time: | 90 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets per year |
| Width: | 1200/1400mm | Thickness: | 0.15-1.2mm |
|---|---|---|---|
| Capacity: | 600/800kg/h | Material: | PP/PS/EVA |
| Application: | Furniture Veneer, Food Packaging, Fruit And Vegtable Packaging,electronic Product Packaging,hot And Cold Drink Cup Lids | Core Component: | Extrusion Machine, Screen Changer, Pressure Sensor, Metering Pump, Extrusion Die, Three-roll Calender, Drawing Machine, Automatic Cutting System, Electrical Control System |
| Warranty Period: | One Year | Core Component Shelf Life: | One Year |
| Suitable Industry: | Food Packaging Industry, Toy Industry, Building Materials Industry, Advertising Industry, Etc | Core Selling Point: | Twin Screw, High Production Capacity And Low Energy Consumption |
| Highlight: | eva furniture sheet production line,5kw pet sheet extrusion line,5kw furniture sheet production line |
||
| Width | 1200/1400mm |
| Thickness | 0.15-1.2mm |
| Capacity | 600/800kg/h |
| Material | PP/PS/EVA |
| Application | Furniture veneer, food packaging, fruit and vegetable packaging, electronic product packaging, hot and cold drink cup lids |
| Core component | Extrusion machine, screen changer, pressure sensor, metering pump, extrusion die, three-roll calender, drawing machine, automatic cutting system, electrical control system |
| Warranty period | One year |
| Core component shelf life | One year |
| Suitable industry | Food packaging industry, toy industry, building materials industry, advertising industry, etc. |
| Core selling point | Twin screw, high production capacity and low energy consumption |
| Feeding form | Screw-type |
| Feeding capacity | 1000kg/h |
| Control mode | Variable frequency motor speed control |
| Converter | SIEMENS Siemens 3KW, using Ethernet control technology |
| Feed rate | 1-30kg/h |
| Material conveying method | Screw type |
| Drive motor | 0.4KW Siemens servo motor |
| Control method | Siemens servo speed control |
| Servo drive machine | Siemens, using Ethernet control technology |
| Brand | Touyou |
| Structure form | 175mm, Full-network double-column screen changer with hydraulic station |
| Heating zone | Two zones |
| Heating power | Approx.10kw |
| Brand | JCTIMEC |
| Rated speed metering | 8-60r (revolutions)/min |
| Model number | E90,(371CC) |
| Gearbox and motor power | SIEMENS Siemens reducer, 7KW servo motor |
| Variable conversion control | Siemens, using Ethernet control technology |
| Brand | JingCheng |
| Structure form | Hanger runner |
| Width of final product | 860mm |
| Thickness of final product | 0.2-1.0mm |
| Effective width of mold | Single-sided outer plug |
| Heating zone | 8 zones |
| Heating power | 30KW |
| Roller size | Lower roller diameter 400mm, middle and upper roller diameter 600mm |
| Roller width | 1200mm |
| Roller materials | Alloy steel |
| Roller surface roughness | Mirror finish |
| Hardness | ≥HRC60-62 |
| Chrome layer thickness | 0.08mm-0.12mm |
| Drive motor | SIEMENS Siemens servo motor, 3 sets*7KW |
| Linear velocity | 6-60m |
| Reduction gear | SIEMENS Siemens Gearbox, 3 sets |
| Edge trimming assembly | 1 group, 3 knives, 1 group of left, middle and right, adjustable distance |
| Cutter form | Rotary cutter |
| Ferrules winding | A set |
| Ferrules winding drive | 0.4KW servo-motor control |
| Size | Ф200mm*1200mm |
| Haul-off roller | Upper rubber rollers and lower steel rods, rubber rollers cover layer thickness 20mm, nitrile rubber, surface Shore hardness 65-70° |
| Drive motors | SIEMENS servo motor, 5KW |
| Roll cylinder opening and closing | Cylinder adjustment |
| Wait controllers | Using Ethernet technology control |

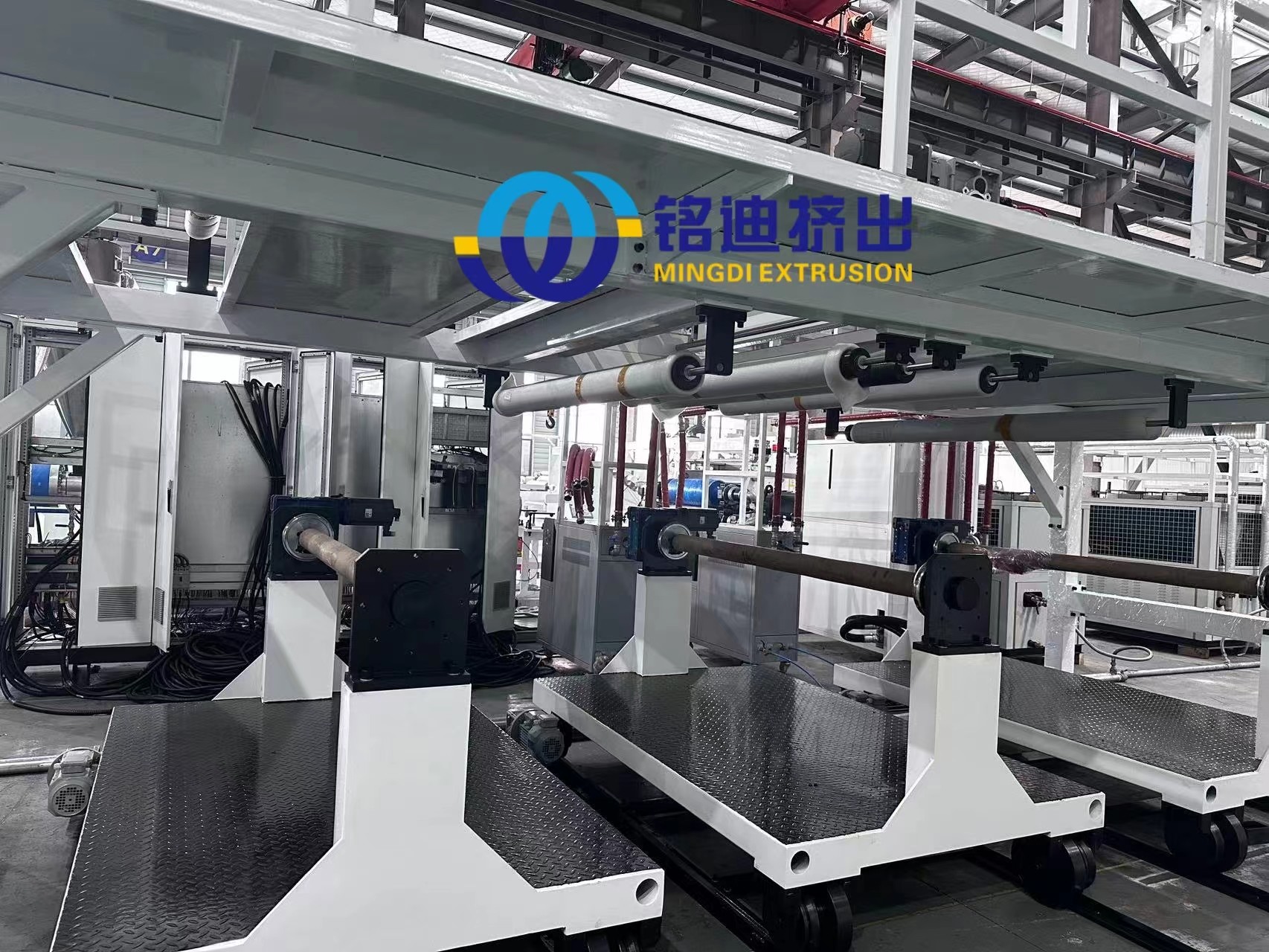

| Form structure | Flip-type double-station winder |
| Air-expanded shaft | 3 inch, 6 inch general, both ends of the installation of mechanical clutch, convenient disassembly of gas expansion shaft |
| Maximum winding diameter | 1200mm |
| Drive the motor | A Siemens servo-motor |
| Unwinding method | Manual |
| Winding method | Automatic |

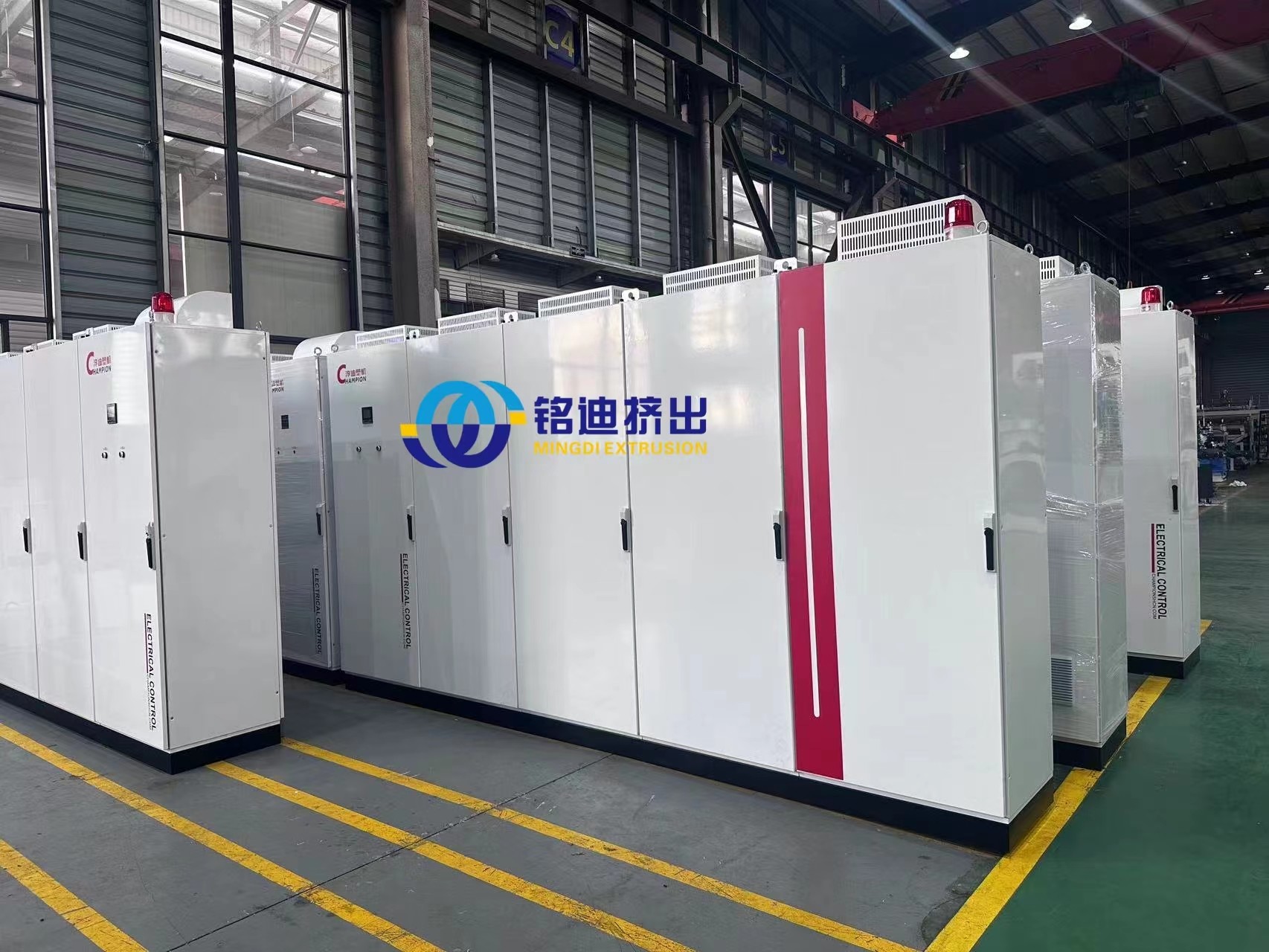

| Control system | PLC |
| CPU | SIEMENS S7-1500 |
| HMI | SIEMENS 12 inches |
| Inverters | SIEMENS |
| Miniature Circuit Breakers | SIEMENS |
| Small relay | Schneider |
| Solid state relay | Swiss Galle |
