380V Plastic Extrusion Three Roll Calender Machine With Surface Hardness 68~72hs

Basic Information

Place of Origin:	China
Brand Name:	MINGDI
Certification:	CE, ISO
Model Number:	XLG-1100×2000

Minimum Order Quantity:	One set
Price:	$16000-$17000
Packaging Details:	wooden box
Delivery Time:	90days
Payment Terms:	T/T
Supply Ability:	180-200 sets per year

Get Best Price Chat Now

Condition:	New	Voltage:	380V
Weight:	20 Tons	Warranty:	1 Year
Automatic Grade:	Automatic	Material:	Rubber,PU Or Rubber Available
Highlight:	plastic extrusion three roll calender machine , 380v three roll calender machine , 380v three roll rubber calender machine

380V Plastic Extrusion Three Roll Calender Machine With Surface Hardness 68~72hs

Product Specifications

Attribute	Value
Condition	New
Voltage	380V
Weight	20 Tons
Warranty	1 Year
Automatic grade	Automatic
Material	rubber, PU or Rubber Available

Product Description

XLG-1100 ×2000 Plastic extrusion Three-roller calender

Key Features:

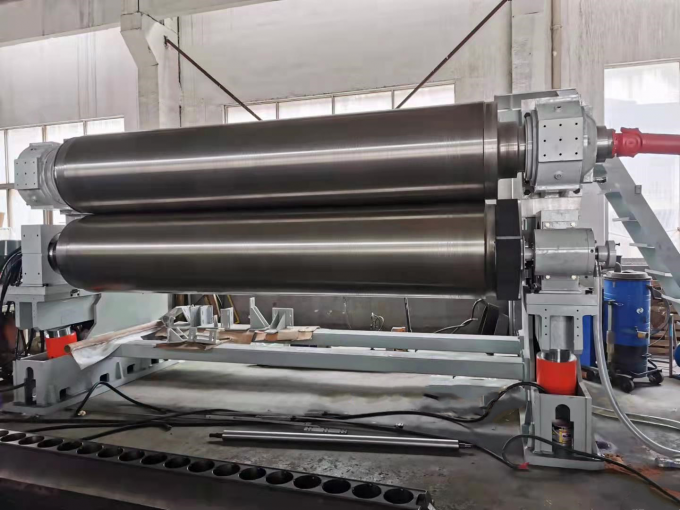

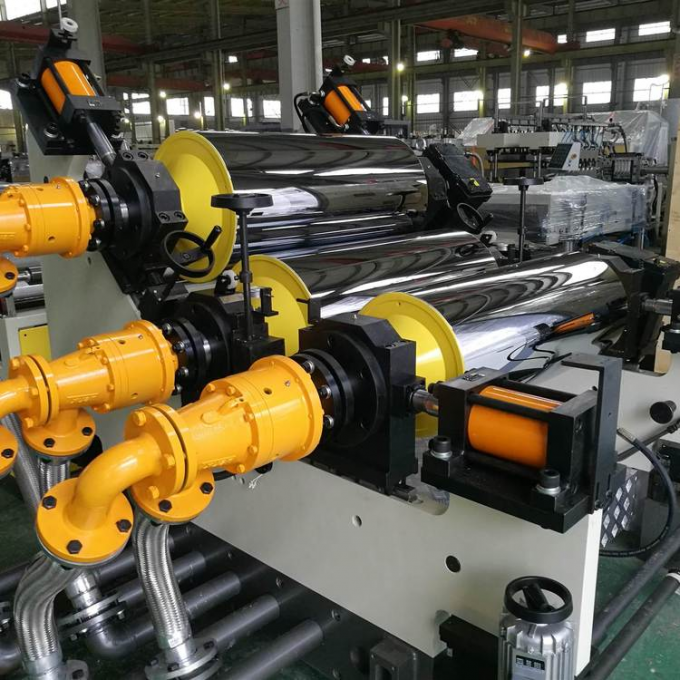

Rolls: Chilled alloy cast iron rolls with surface hardness 68~72hs. The rolls are mirror finished & polished, duly grinding and are hollowed for cooling or heating.
Roll clearance adjusting unit: Nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
Roll cooling: Universal rotary joints with inner spray pipes with hoses and headers. Piping is complete up to supply pipe terminal.
Journal bearing housing: Heavy duty steel casting housing fitted with anti friction roller bearings.
Lubrication: Full automatic grease lubrication pump for anti friction roller bearings fitted in dust sealed housing.
Stand frame & apron: Heavy duty steel casting.
Gearbox: Hard-tooth reduction gearbox, GUOMAO brand.
Base frame: Common base frame heavy duty, steel channel and ms plate fabricated accurately machined on which whole machine with gearbox and motor are fitted.
Electric panel: Star delta electric operating panel with auto reversing, voltmeter, ampere, overload protection relay, 3 phase indicator and emergency stop switch.
