6mm Width HIPS ABS Sheet Extrusion Line Non Sticky Coating

Basic Information
Place of Origin: QingDao, ShanDong, China
Brand Name: QingDao Leader
Certification: CE, ISO9001-2000; BV
Minimum Order Quantity: 1 sets
Packaging Details: Wooden Pallet/Cases with Streching Films
Payment Terms: L/C, T/T, Western Union
Model NO.: LMSB-150/90 Condition: New
Plastic Material: HIPS&ABS Transport Package: Wooden Pallet/Cases With Streching Films
Origin: QingDao, ShanDong, China Customized: Customized
Guaraneed Time: 12 Months Main Electrical Parts: ABB, Omron, Rkc, Schneider, Siemens
High Light:

HIPS ABS Sheet Extrusion Line

,

6mm Width ABS Sheet Extrusion Line

,

800kg/h ABS Sheet Extrusion Line

This extrusion line consists of SCD-1200U/700H Taiwan PC/PMM Dehydration and Drying System, The LMSSB-15090 extension line produces two layers of ABC /HIPS sheets with widths ranging from 1 to 6mm.Hydraulic screen changer, melt-pumps, feedblock, T-die, T-die frame, Three roller calendar, cooling frame, film coating, edge cutting, oven, cutting machine, haul-off machine,sheets conveying table, stacker, electronic control system. The entire length of the production line is about 24 meters. We always adapt European advanced technologe, and in strict accordance with the standards to make extrusion line. So, we own the high quality.



Features of ABS/HIPS co-extrusion in T-die traveling cases sheet extrusion line:
1. ABS/HIPS co-extrusion in T-die traveling cases sheet extrusion line using high-speed energy-saving stable screw, output increased by more than 25% compared to similar products
2. Special harden treatment and non-sticky coating on the surface.
3. Special design calibrating device, each individual control;
4. Specific temperature control device, reduce heat shrinkage, simple operation.
5. Our products can be customized according to customer requirements.


Application:
ABB/HIPS co-extrusion in T-die traveling cases sheet extrusion line
This line adopts the most advanced multifold co-extrusion inside in the T-die and it's performance is much better than the traditional single fold extrusion with feedbacks. This accurate flow channel design can save surface material and shorten the invest cycle. The traveling cases sheets produced by this machine posses advantages of fresh and beautiful color, solid structure, high quality, lower cost, especially suitable for  home appliance field,such as internal bladder for refrigerators,out shell for washing machine and air conditioner etc.

Main extruder model 150/90
Main driving motor 385kw
Co-extruder model 65/33
Co- extruder driving 30kw
Sheet width 1800mm
Sheet thickness 1-6mm
Output >800kg/h
Installed power 400kw

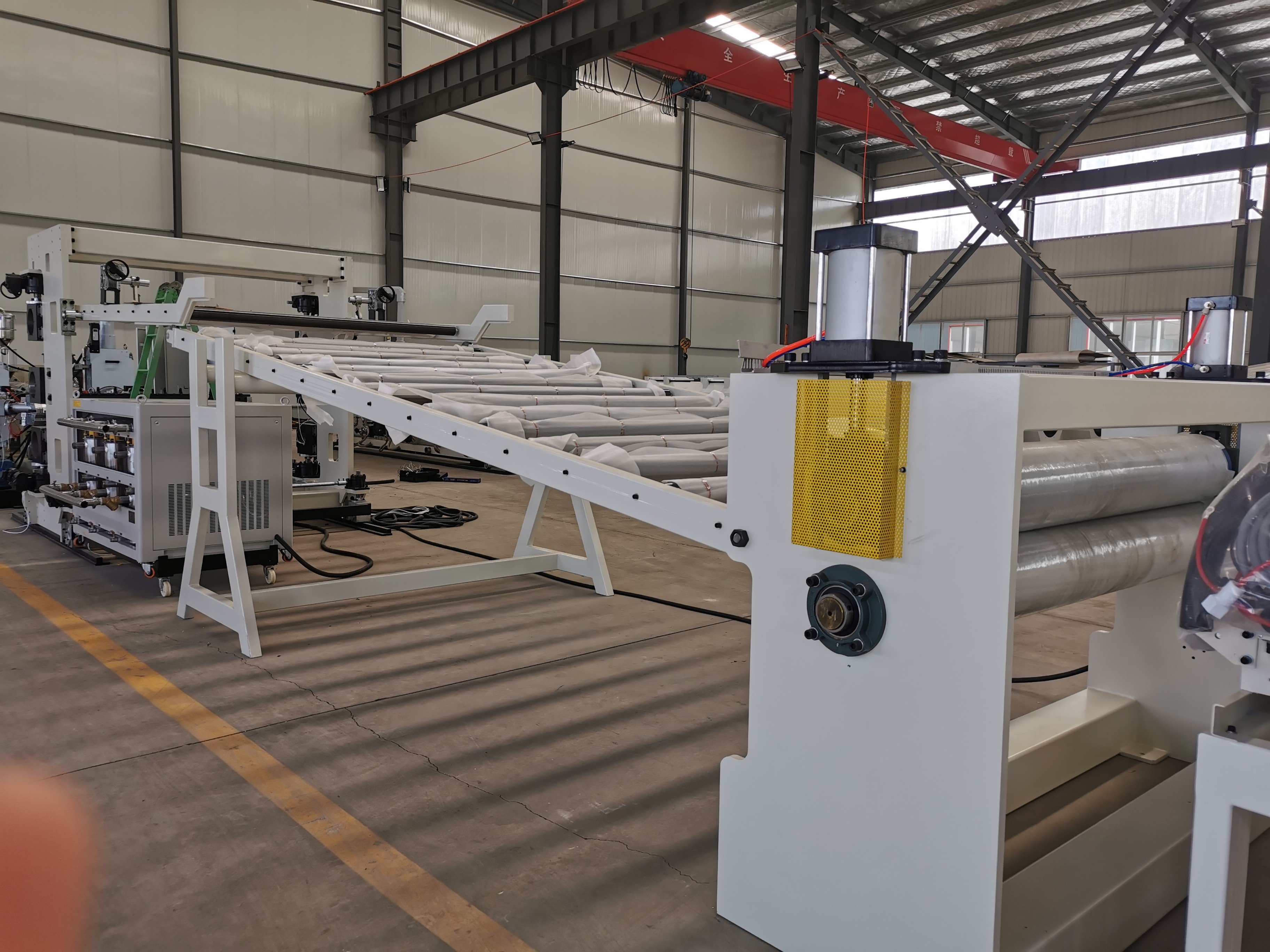

6mm Width HIPS ABS Sheet Extrusion Line Non Sticky Coating 0

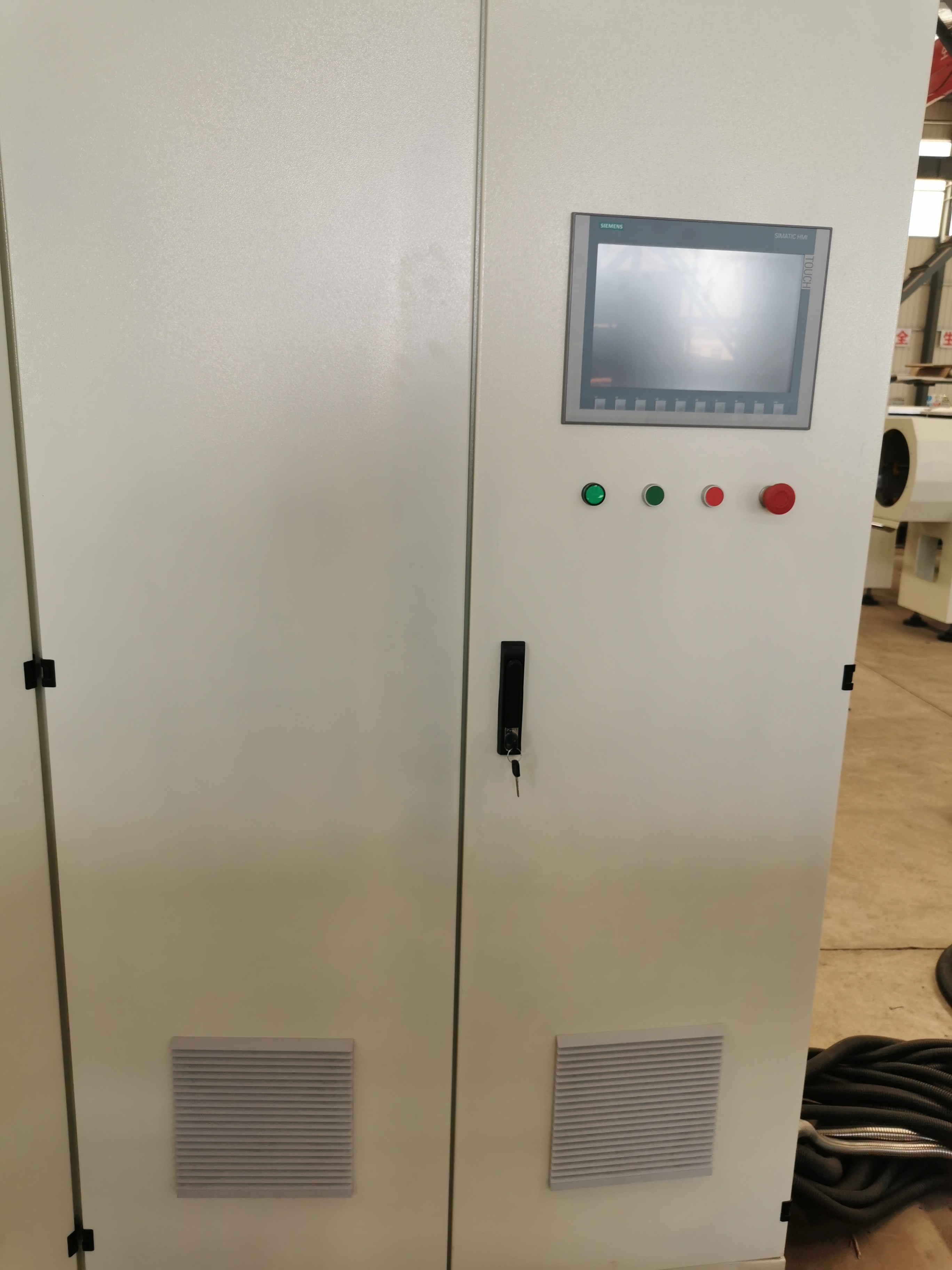

6mm Width HIPS ABS Sheet Extrusion Line Non Sticky Coating 1

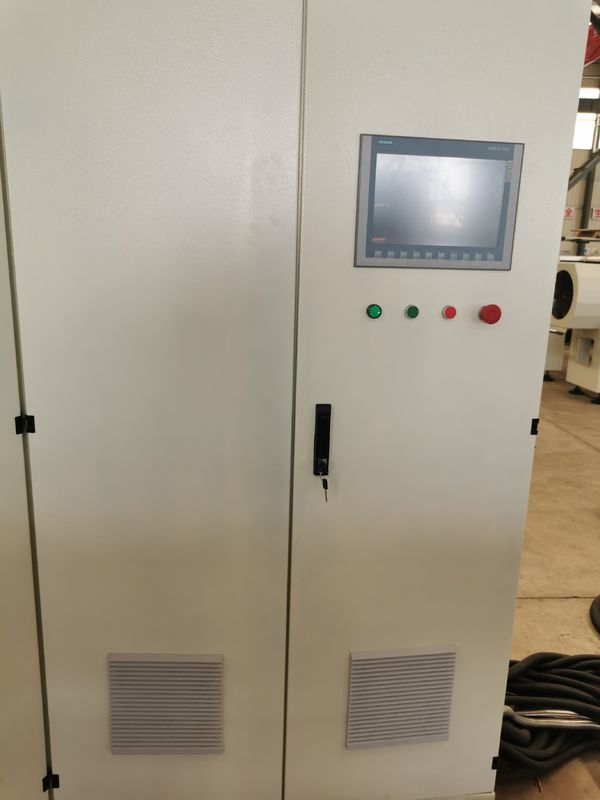

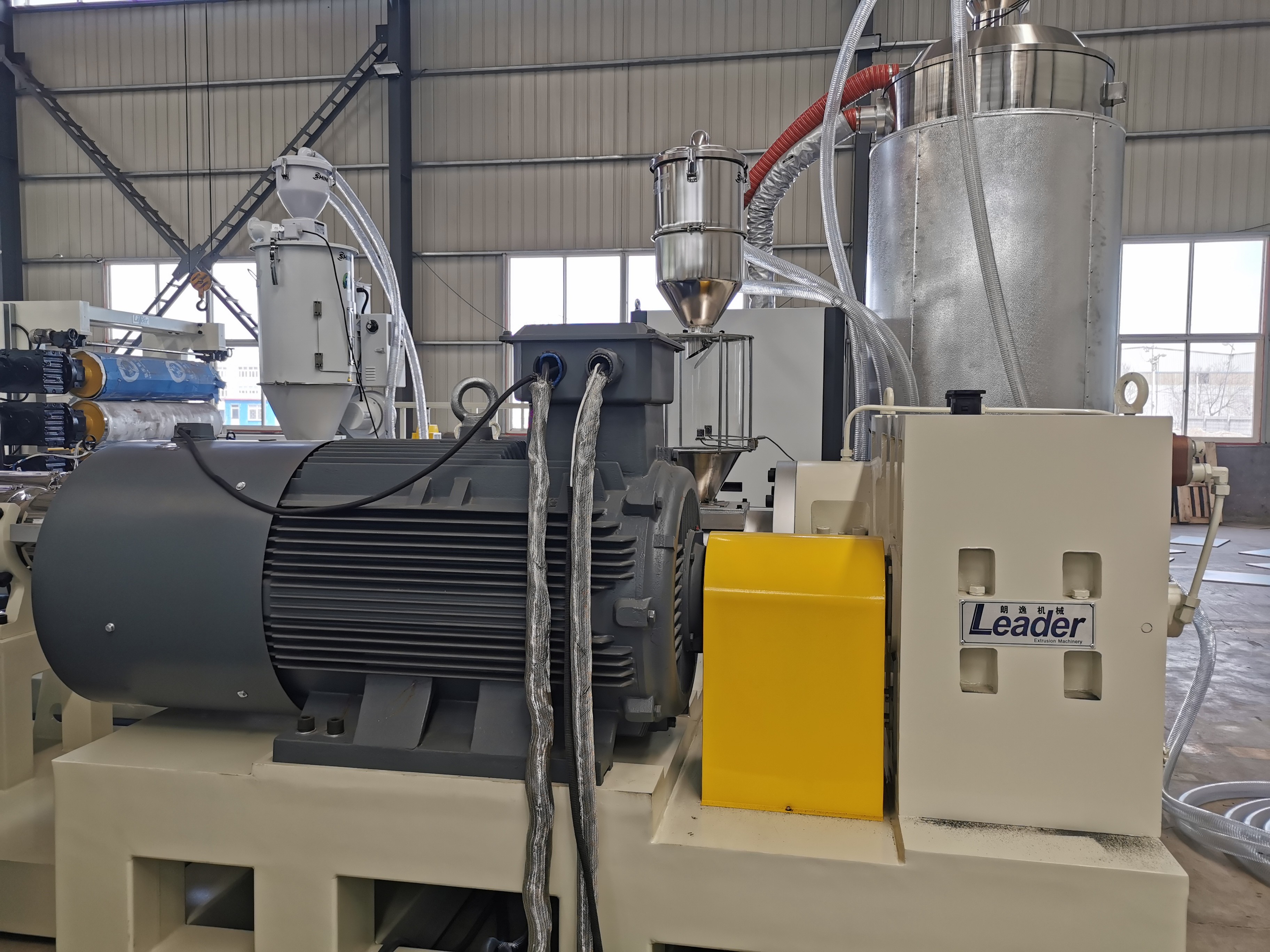

6mm Width HIPS ABS Sheet Extrusion Line Non Sticky Coating 26mm Width HIPS ABS Sheet Extrusion Line Non Sticky Coating 3

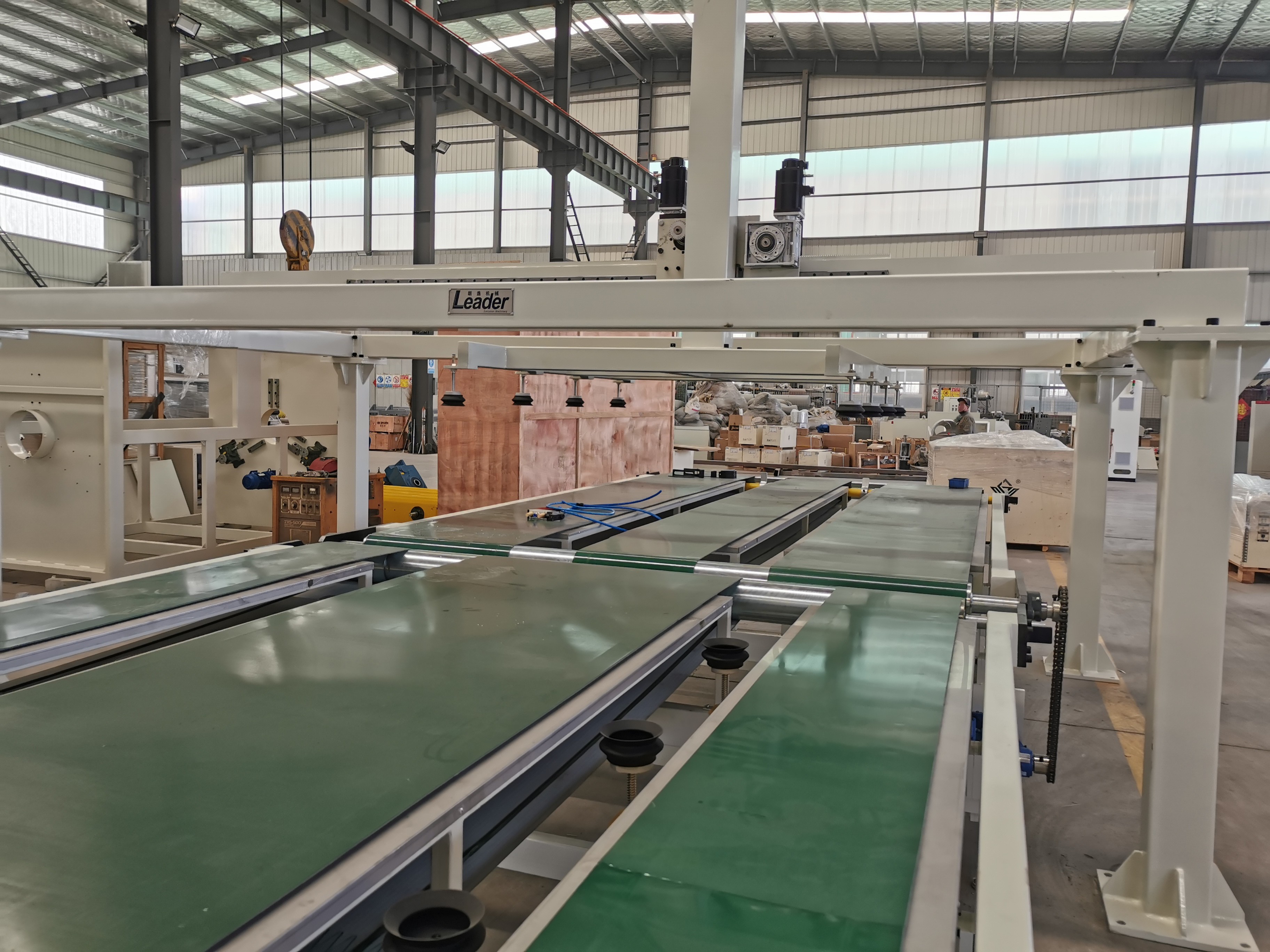

6mm Width HIPS ABS Sheet Extrusion Line Non Sticky Coating 4

PACKAGING & SHIPPING:

6mm Width HIPS ABS Sheet Extrusion Line Non Sticky Coating 5



COMPANY CERTIFICATIONS:


6mm Width HIPS ABS Sheet Extrusion Line Non Sticky Coating 6
COMPANY TRADE SHOWS AROUND THE WORLD:
6mm Width HIPS ABS Sheet Extrusion Line Non Sticky Coating 7
6mm Width HIPS ABS Sheet Extrusion Line Non Sticky Coating 8

OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION

1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.

4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.

5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.

8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.


9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
