6000mm PE Geomembrane Waterproof Sheet Extrusion Line Low Power Consumption

Basic Information
Place of Origin: Qingdao, China
Brand Name: Leader
Certification: CE ISO SGS GOST
Model Number: SJ-150/36-2
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood pallet
Delivery Time: 150 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 Sets / Year
Name: HDPE Flat Geomembrane Waterproof Sheet Extrusion Line 2000-8000mm Material: HDPE
Width: 6000mm Thickness: 0.5-3mm
Sheet Density: 0.939g/cm3 Max. Capacity: 1000kg/h
High Light:

pvc sheet extruder

,

pe extrusion machine

,

pe extrusion line

HDPE Flat Geomembrane Waterproof Sheet Extrusion Line 2000-8000mm​

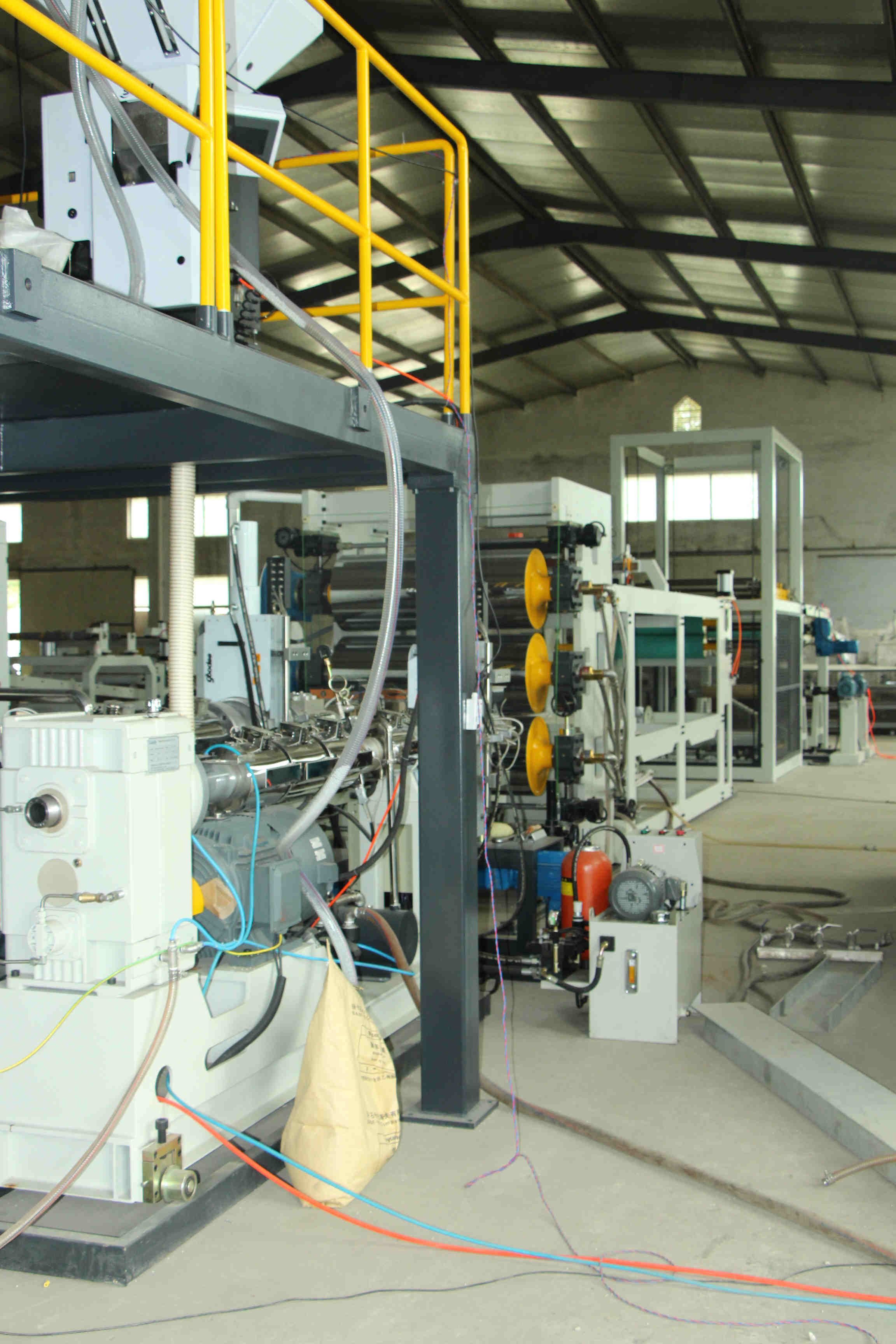

LINE CONSISTS OF:


1) XAL-8002G Vacuum Feeding Machine 1 set
2) Dryer Hopper 500kg capacity 1 set
3) SJ-120/33 High efficiency single screw extruder with DC motor 160kw, 1 set
4) Hydraulic Exchaning unit 1 set
5) T-type die head, JC-times brand 1 set

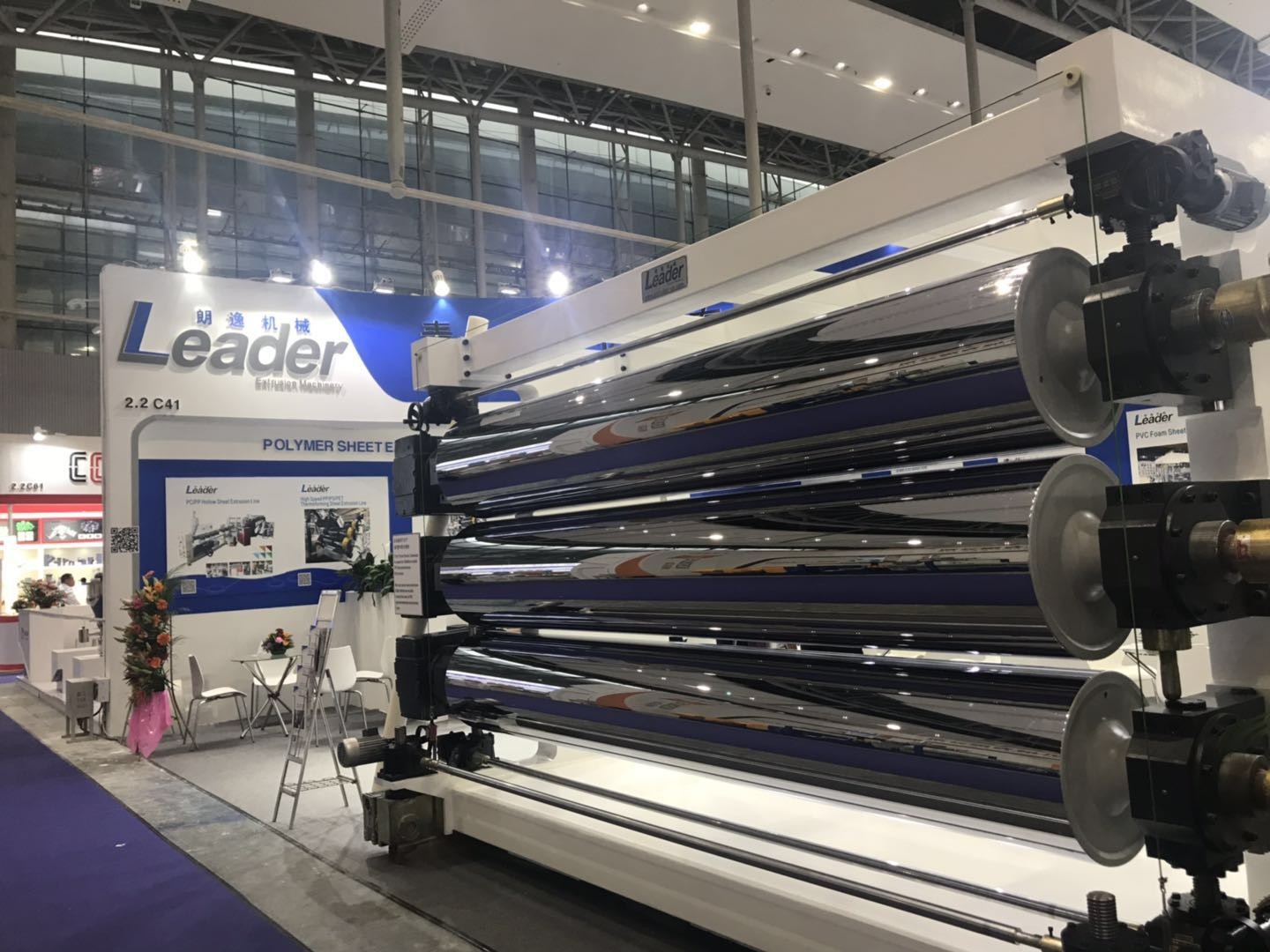

6) Three Roller calendar with diameter 450mm 1 set
7) Temperature controller for calendaring system 1 set
8) Cooling frame and edge trimming unit 1 set
9) Haul off machine 1 set
10) Plastic cutting machine -guillotine 1 set
11) Pneumatic stacker 1 set
12) spare parts: 1set



SHEET SPECIFICATIONS:



Material PE PE
Sheet thickness 0.5-3mm 0.5-3mm
Sheet width 1000-4000mm 5000-8000mm
No. Item Value
    0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm
1 Density
(g/cm3)
0.939
2 Tensile properties
  Yield strength
(N/mm)
11 15 18 22 29 37 44
  Break strength
(N/mm)
20 27 33 40 53 67 80
  Yield elongation/% 12
  Break elongation/% ≥450
3 Tear resistance/N 93 125 156 187 249 311 374
4 Puncture resistance/N 240 320 400 480 640 800 960
5 Stress crack resistance/h ≥1500




6000mm PE Geomembrane Waterproof Sheet Extrusion Line Low Power Consumption 06000mm PE Geomembrane Waterproof Sheet Extrusion Line Low Power Consumption 1
