2mm Advertising PVC Foam Board Extrusion Line 250kg/H

Basic Information
Place of Origin: Qingdao, China
Brand Name: qingdao leader
Certification: CE, ISO9001-2000; BV
Model Number: LMSB80/156
Minimum Order Quantity: 1 sets
Payment Terms: L/C, T/T, Western Union
Model NO.: LMSB80/156 Condition: New
Board Thickness: 2-20mm Extruder Model: Sjsz65/132,80/156
Main Electrical Parts: ABB,Omron,Rkc,Schneider,Siemens Etc Delivery Time: 70days
Trademark: Leader Machinery Specification: LMSB-80/156
HS Code: 84772090 Customized: Customized
Foam Board Width: 1000-2050mm Board Application: Transportation, Architecture,Advertisment,
T-Die: Jc-Times Brand Dimension: 21m*3.5m*3.5m
Guaranteed Time: 12 Months Transport Package: Wooden Pallets Or Cases With Streching Films
Origin: Qingdao, China
High Light:

Advertising PVC Foam Board Extrusion Line

,

2mm PVC Foam Board Extrusion Line

,

250kg/H PVC Foam Board Extrusion Line

Pvc plastic free foam board advertising board extrusion line

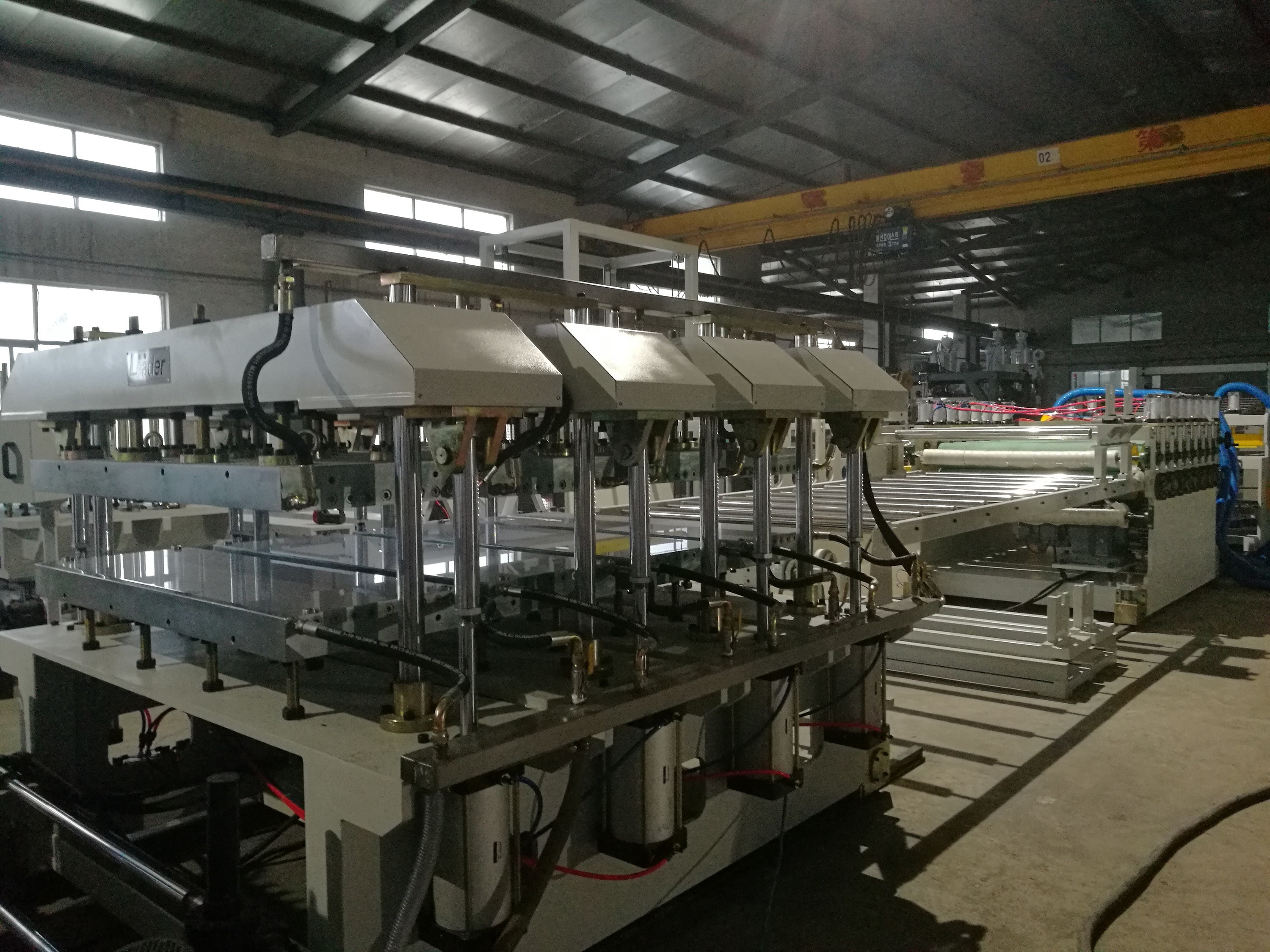

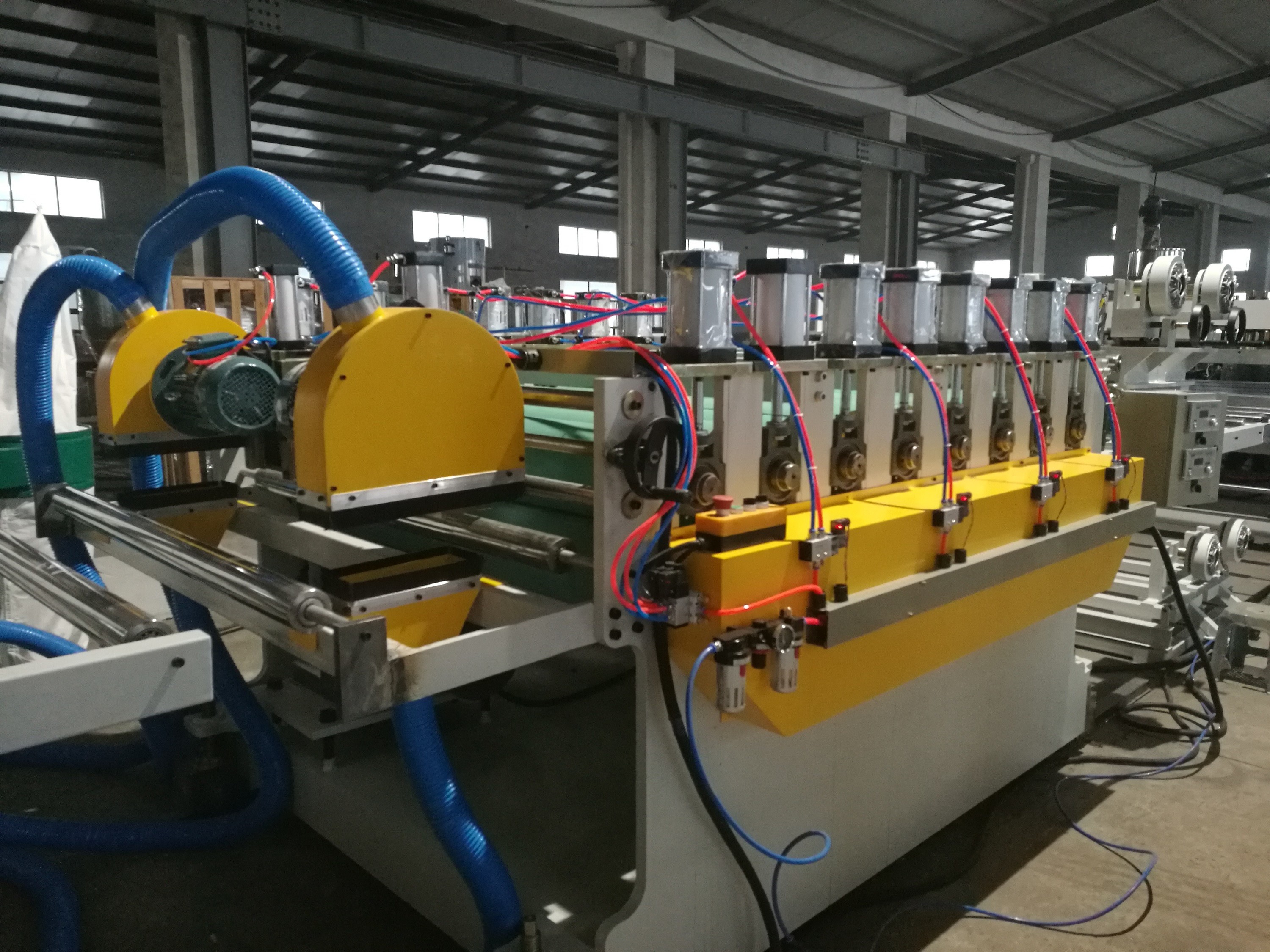

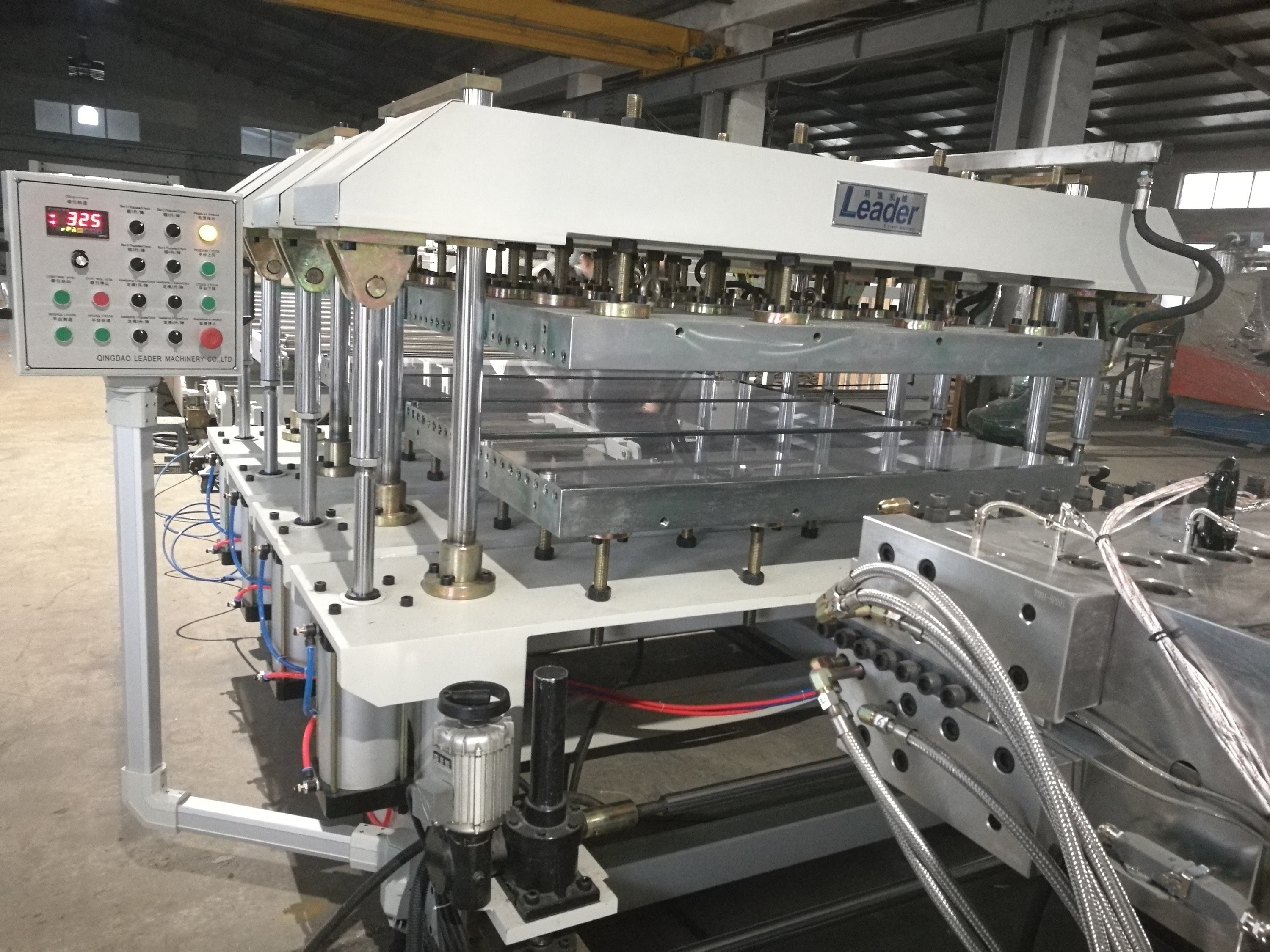

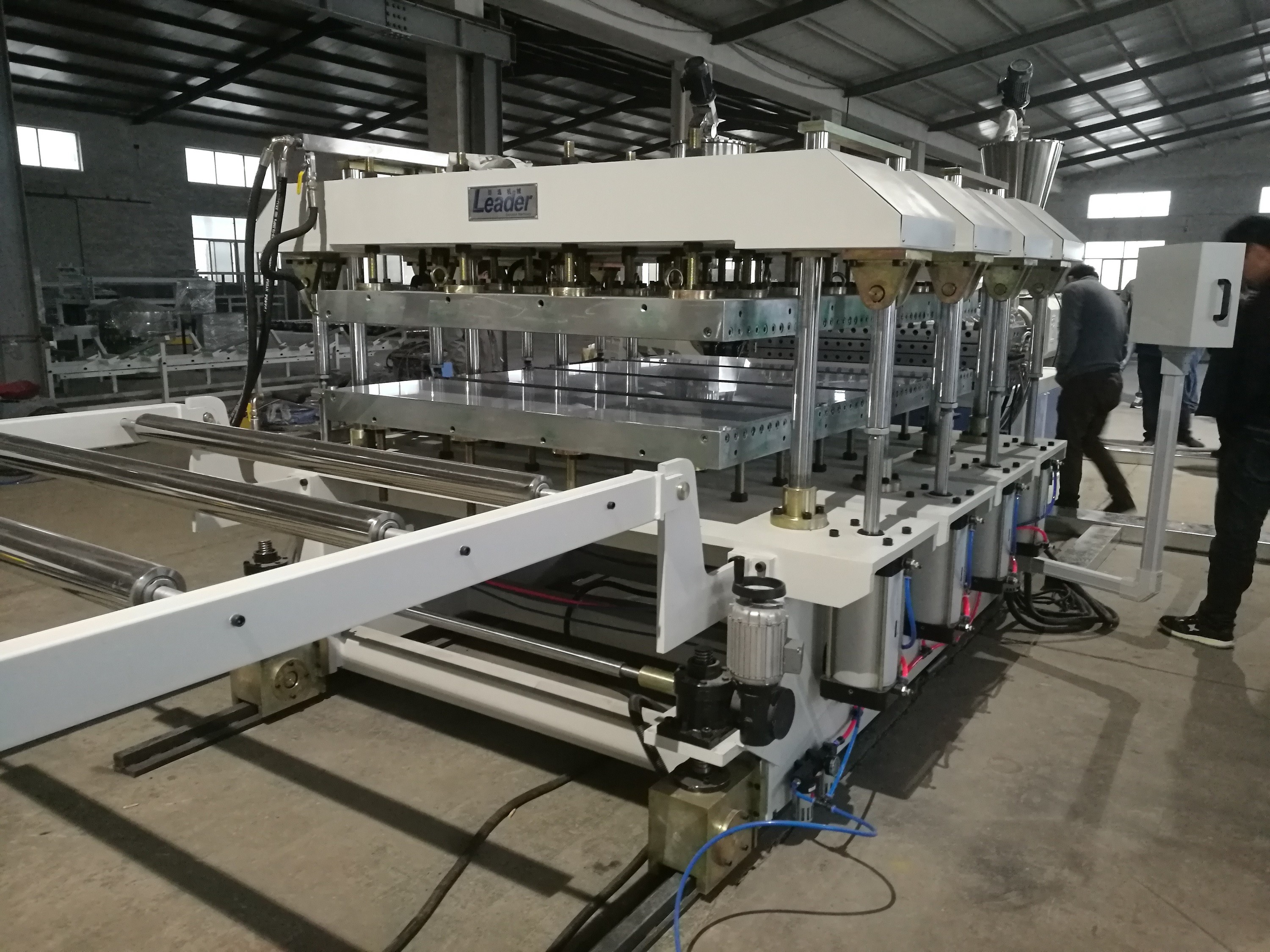

This PVC free foaming board extrusion line is composed of special twin-screw extruder, T-die head and downstream equipments. This machine has the features of high output, stable extrusion, high foaming, smooth and wearable surface etc. And also our company will supply the customer raw material formulation and whole processing technology.

PART 1: THIS LINE CONSISTS OF:
1. Spring feeding machine 1 set
2. Conical twin screw extruder 1 set
3. T-type die head 1 set
4. Three roller calendars and rollers thermocontrolling machine 1 set
5. Cooling frame and edge cutting device 1 set
6. Haul off machine 1 set
7. Longitudinal cutting machine 1 set
8. Cross cutting machine 1 set
9. Stacker
Other optional parts:
10. High speed hot and cold mixer 1 set
11. Plastic crusher 1 set
12. Plastic pulverizer 1 set
13. Water chiller 1 set

2mm Advertising PVC Foam Board Extrusion Line 250kg/H 0

2mm Advertising PVC Foam Board Extrusion Line 250kg/H 1

2mm Advertising PVC Foam Board Extrusion Line 250kg/H 2

2mm Advertising PVC Foam Board Extrusion Line 250kg/H 3

2mm Advertising PVC Foam Board Extrusion Line 250kg/H 4

PART 2 BOARD APPLICATION:

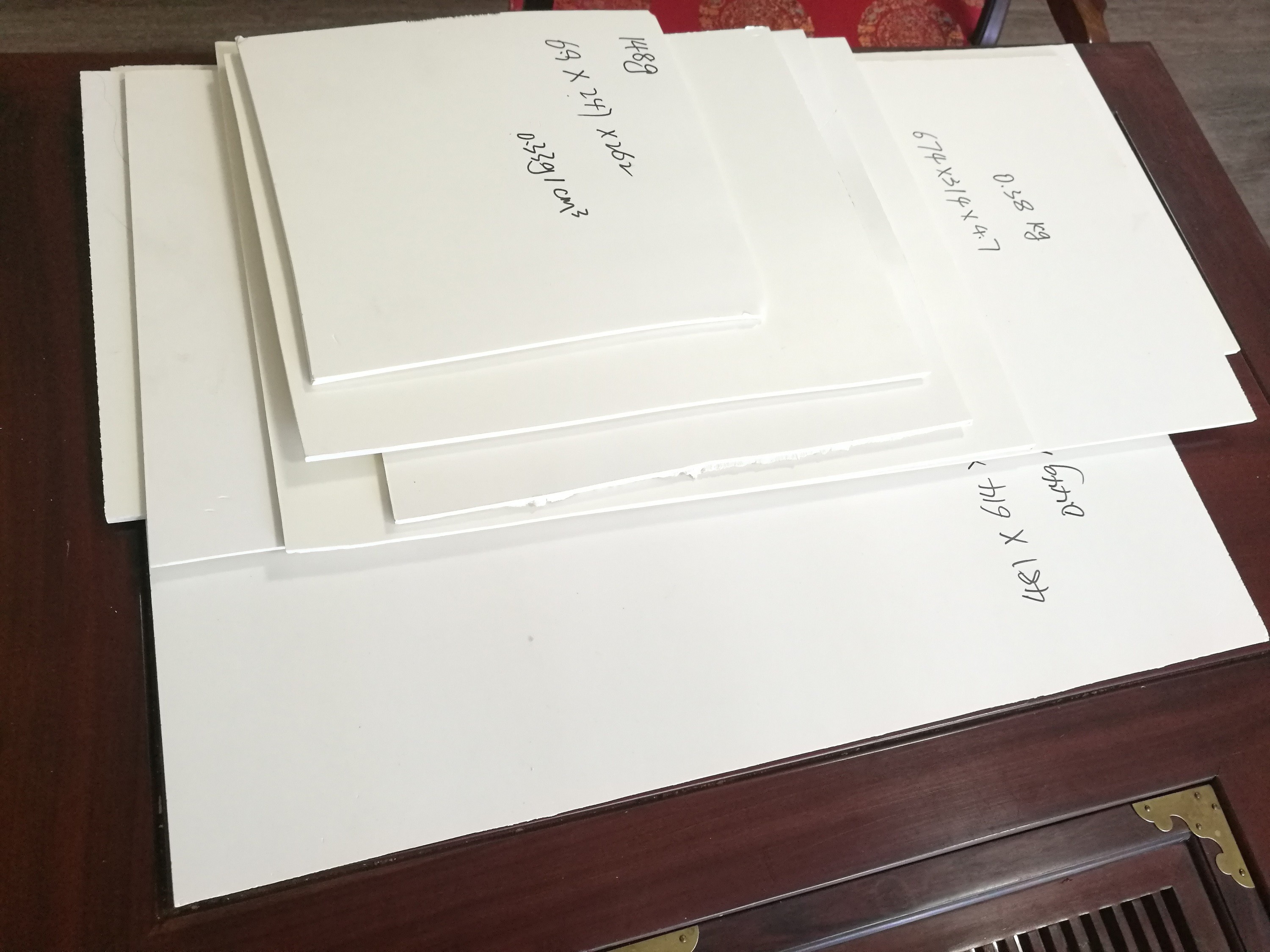

PVC free foamed board is widely used in bus and train roofing, core layer of box, advertisment board, decoration board, furniture board, construction decoration material, advertisement board, upholstery for train, exhibition board, etc.

PART 3: DELIVERY, PAYMENT AND AFTER SALES SERVICE:
1. Delivery time: 70 days
2. Payment: 40% T/T for the prepayment, 60% T/T for the downpayment before delivery
3. After sale service: We will send our engineers to customers factory to install and test the machines, and train their workers.
4. Guaranteed time: 18 months for the machenical parts, 12 months for the electrical parts.

PART 4 MAIN TECHNICAL DATA

Board width 1000mm 1220mm 1560mm 2050mm
Board thickness 1-10mm 1-18mm 1-12mm 1-10mm
Extruder model SJSZ65/132 SJSZ80/156 SJSZ80/156 SJSZ80/156
Max capacity 250kg/h 350kg/h 400kg/h 400kg/h
Main motor power 37kw 55kw 75kw 75kw



PACKAGING & SHIPPING:

2mm Advertising PVC Foam Board Extrusion Line 250kg/H 5



COMPANY CERTIFICATIONS:

2mm Advertising PVC Foam Board Extrusion Line 250kg/H 6

COMPANY TRADE SHOWS AROUND THE WORLD:

2mm Advertising PVC Foam Board Extrusion Line 250kg/H 7

2mm Advertising PVC Foam Board Extrusion Line 250kg/H 8

OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION

1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.

4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.

5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.

8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.


9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
