2mm 50m/Min PP PS Sheet Extrusion Line For Thermoforming

Basic Information
Place of Origin: Qingdao, China
Brand Name: QingDao Leader Machiney
Certification: CE, ISO9001-2000; BV
Model Number: LSJ-120/35
Minimum Order Quantity: 1set
Payment Terms: L/C, T/T, Western Union
Model NO.: LSJ-120/35 Condition: New
Sheet Thickness: 0.2-2mm Sheet Structure: Single Layer, 2 Layers A/B, 3 Layers A/B/a
Die Head: T-Type, Jc-Times Brand Main Electrical Parts: ABB, Omron, Rkc, Schneider, Siemens
Processing Material: Pet, PP, PS Transport Package: Wooden Cases With Vacuum Film
Origin: Qingdao Of China Customized: Customized
Sheet Width: 600-800mm-1000mm Sheet Application: Thermoforming, Packing
Max Capacity: 50m/min Calibrating Method: Three Roller Calendars
Guaranteed Time: 12 Months Trademark: Leader Machinery
High Light:

50m/Min PP PS Sheet Extrusion Line

,

2mm PP PS Sheet Extrusion Line

,

Thermoforming Sheet Extrusion Line

PP PS PET PLA thermoforming sheet plate film extrusion line/making machine

This Plastic PP/PS/PET PLA Sheet Production Line Maachineis specially designed for mono/multi Layer sheet for packing indrustry. The technology of "Single Screw extruding with low dew-point dehumidifying system " for high quality products in high transparency without buddle, which will be very important for thermoforming.


Raw Material:
1. can be virgin plastic material. PP, PS, PET, PLA
2. can be recyclable material, like PET Bottle Flakes, PP, PS granules

SHEET SPECIFICATION:
Usual Sheet Width: 600-800-1000mm
Usual Sheet Thickness: 0.2-2mm

APPLICATION:
1. This line is specially used for producing PET/PBT/PP/PE/HIPS/EVAOH sheet.
2. Surface Treatment: Adding some additives can improve intensity/toughness/rigidity, flame retardant, embossing, frosting, etc.
3. Application: Packing, printing, stationery, art works etc.
4. Main Products: Gift/ad/file bag/lamp cover/food packaging


FEATURES:
1. Screw with special mixing and plasticization function.
2. Coat hanger T-type die head with two throttle design enable to regulate the sheet thickness accurately.
3. Horizontal. vertical, 45 degree incline type 3 Roller Calendars may be lifted freely, sheet thickness shall be regualted by screw and pressing roller.
4. Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness.
5. Exact slicing machine, excellent cross surface.
6. Winder with big torque motor, and it's speed and tension force adjustable.
7. Automatic metering to set the length of the products.

MORE MACHINE PICTURES:

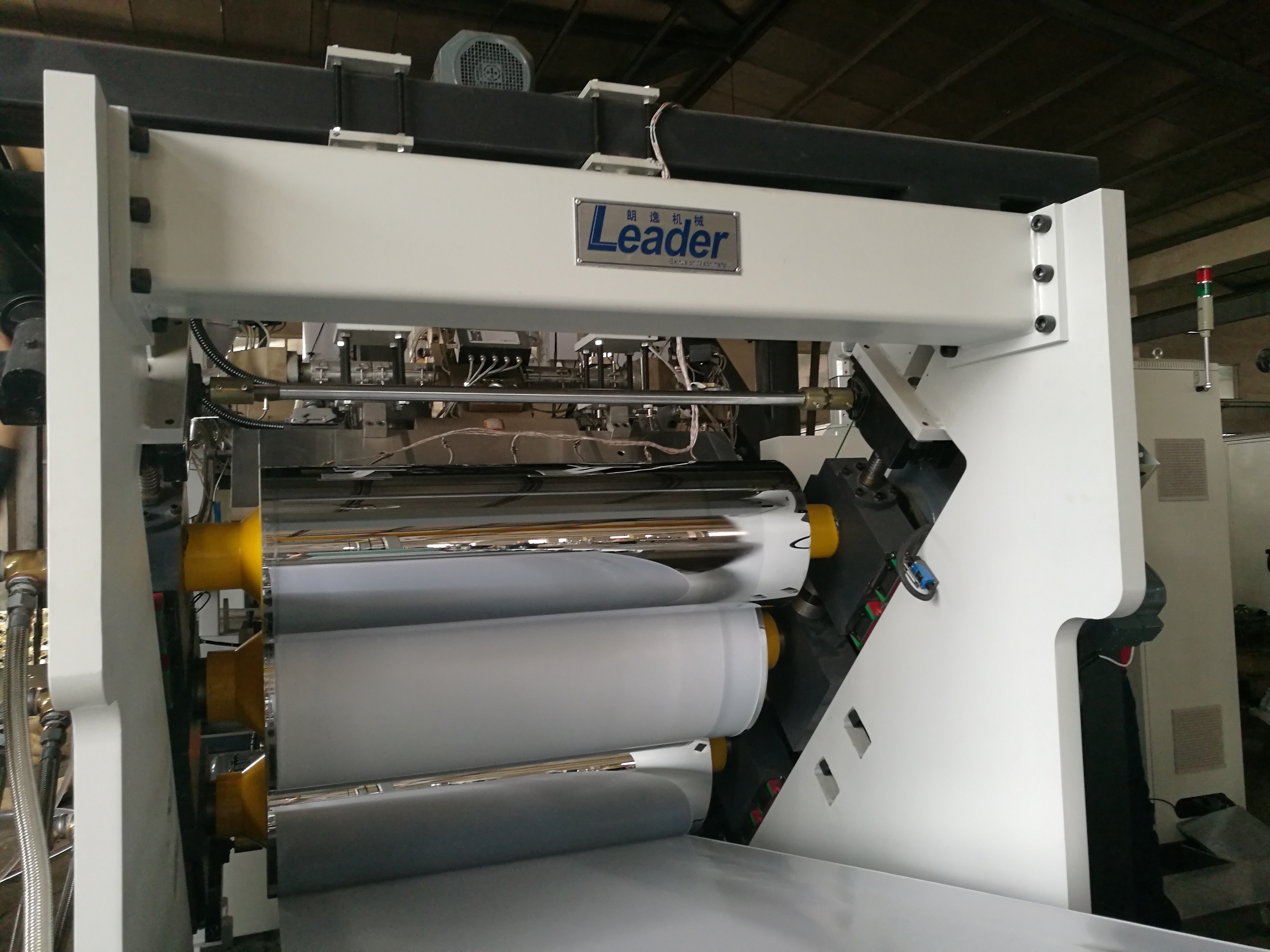

2mm 50m/Min PP PS Sheet Extrusion Line For Thermoforming 0

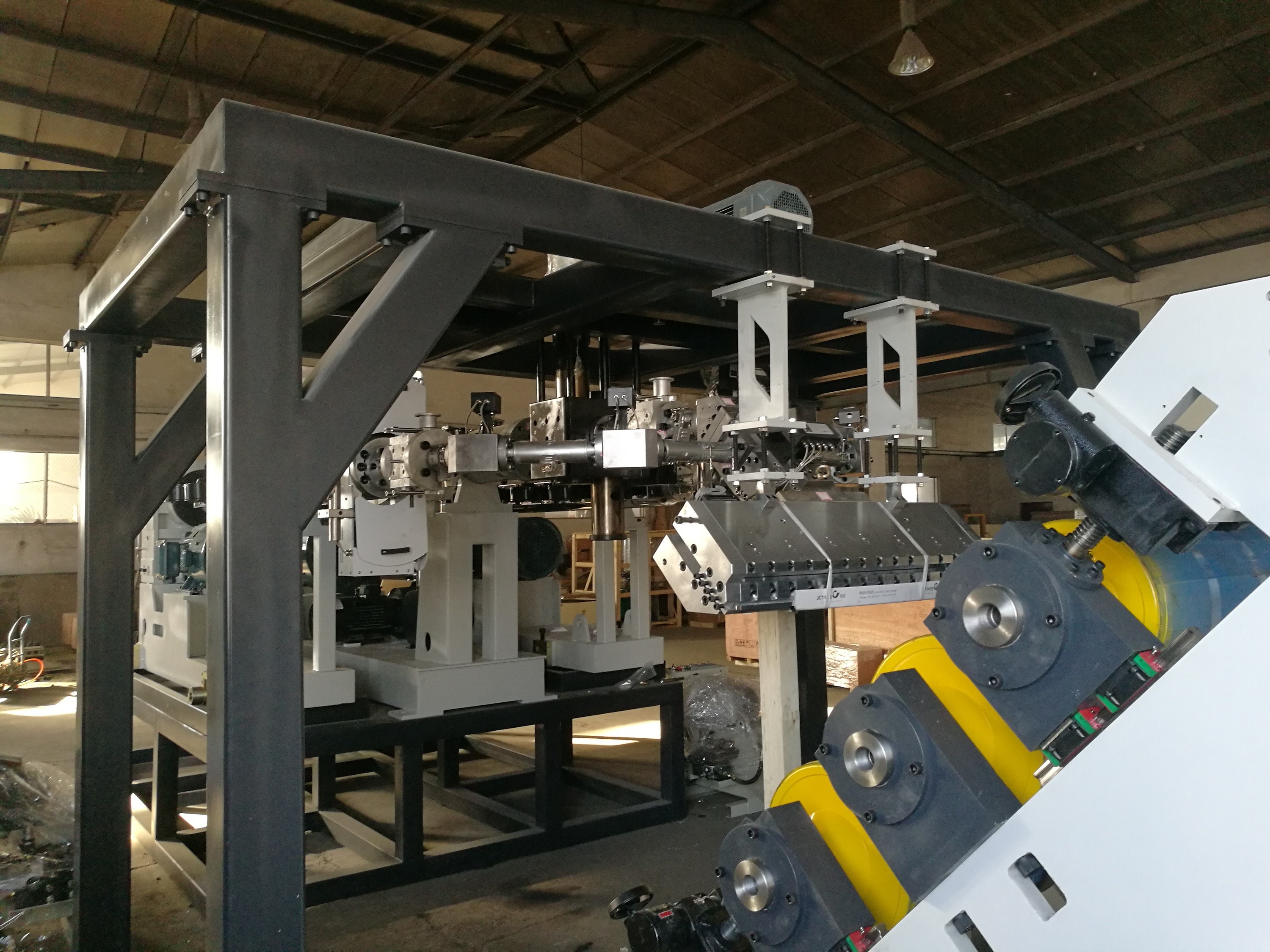

2mm 50m/Min PP PS Sheet Extrusion Line For Thermoforming 1

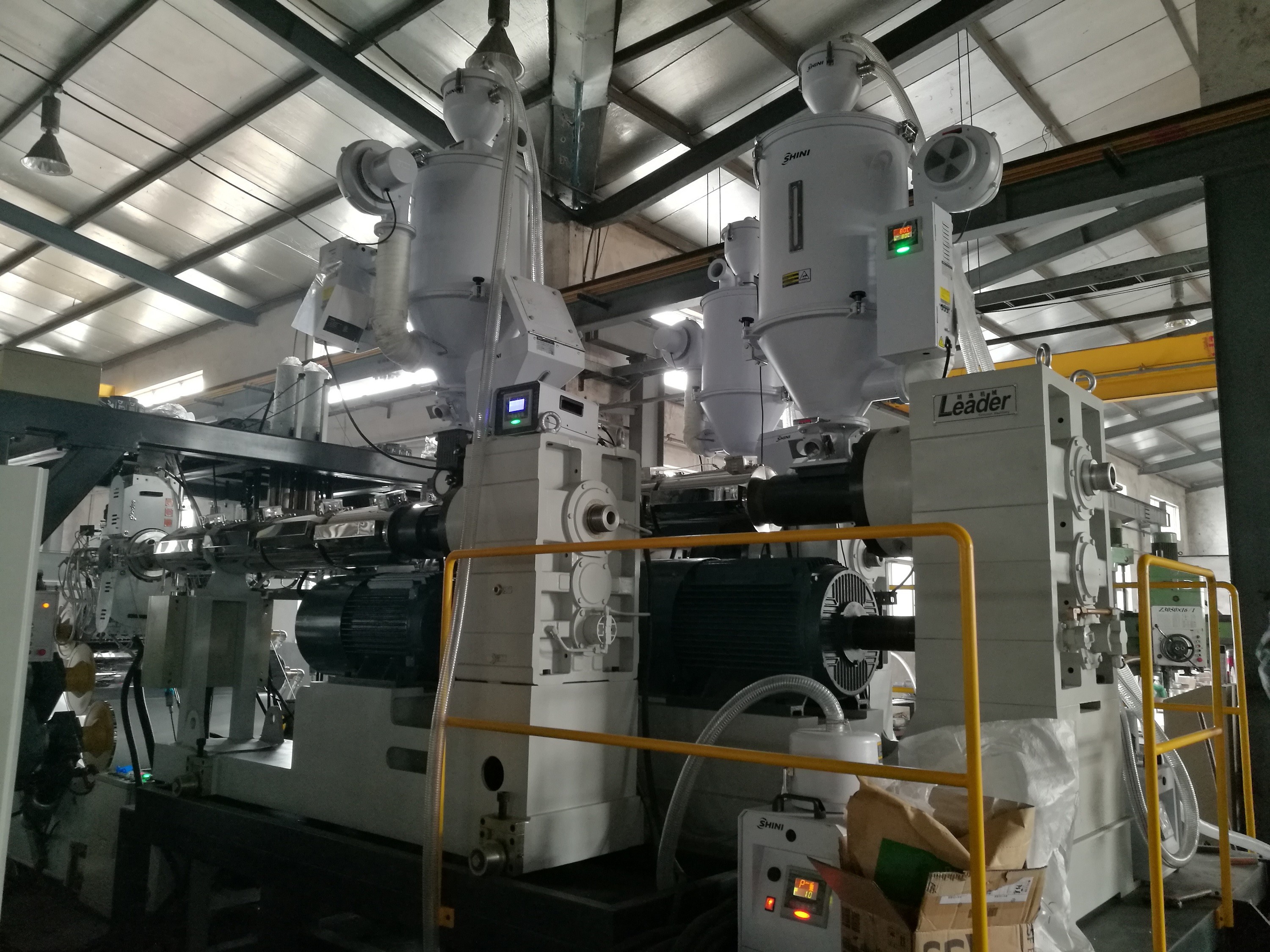

2mm 50m/Min PP PS Sheet Extrusion Line For Thermoforming 2

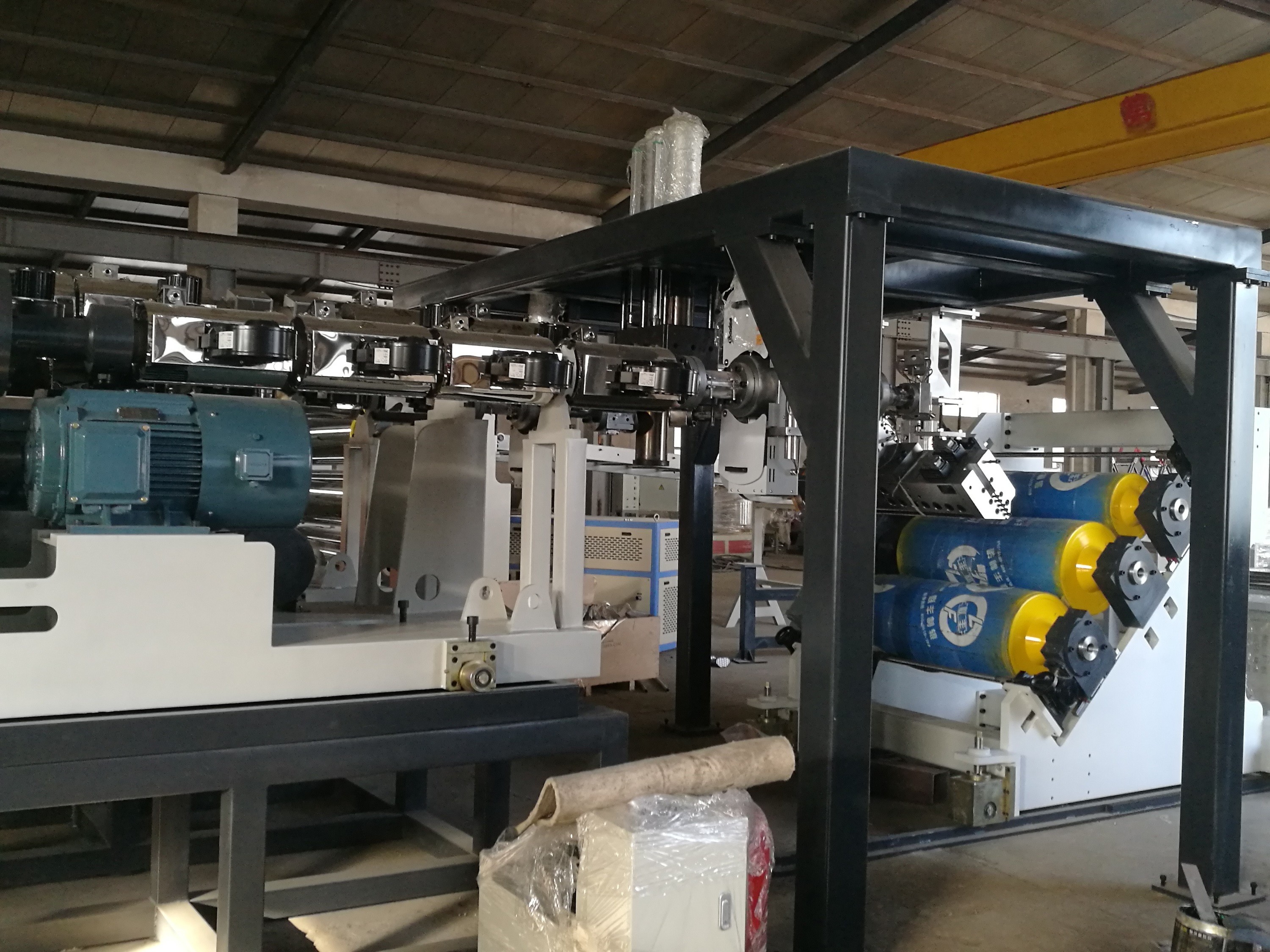

2mm 50m/Min PP PS Sheet Extrusion Line For Thermoforming 3

MAIN TECHNICAL DATA:

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)
1 Automatic vacuum feeding machine 1 set
2 High efficiency single screw extruder (65/33, 75/33,90/33,120/33) 1 set
3 Hydraulic exchanging unit 1 set
4 Melting gear pump 1 set
5 T-type /hanger type die head (JC-Times brand) 1 set
6 Three Roller Calendars (alloy steel material ) 1 set
7 Rollers thermoforming machine 1 set
8 Cooling frame and edge cutting unit 1 set
9 Haul off machine 1 set
10 Plastic cutting machine-guillotine 1 set
11 Twin position sheet winder 1 set
12 Stacker 1 set
13 Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)
14 Spare parts 1 set

PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
1 Air compressor 1 set
2 Industrial water chiller 1 set

PART 3 SHEET SPECIFICATIONS
1 Sheet width 600-800mm
2 Sheet thickness 0.2-2mm
3 Type Pet single layer/mono layer sheets
4 Raw material 1. Can be virgin plastic pet material
2. Can be recyclable material, like PET Bottle Flakes

PART 4 SHEET APPLICATIONS
1 Packing, printing, stationery, art works etc.
2 Main Products: Gift/ad/file bag/lamp cover/food packaging

PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES
1 Payment terms 40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2 Delivery time 80 days after receipt of prepayment
3 Packing method Wooden cases/pallets with stretching films
4 Guaranteed time 18 months for mechanical parts, 12 months for electrical parts
5 After sale service Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
6 Contact Ms Lilly Zhou (mob: 0086-15266238607)


PACKAGING & SHIPPING:

2mm 50m/Min PP PS Sheet Extrusion Line For Thermoforming 4

2mm 50m/Min PP PS Sheet Extrusion Line For Thermoforming 5

COMPANY CERTIFICATIONS:

2mm 50m/Min PP PS Sheet Extrusion Line For Thermoforming 6

COMPANY TRADE SHOWS AROUND THE WORLD:

2mm 50m/Min PP PS Sheet Extrusion Line For Thermoforming 7

2mm 50m/Min PP PS Sheet Extrusion Line For Thermoforming 8

OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION

1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.

4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.

5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.

8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.


9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
