1.1 M Width PE T-Lock Plastic Sheet Extrusion Line

Basic Information
Place of Origin: Qingdao of China
Brand Name: Qingdao Leader machinery
Certification: CE;ISO9001-2000;Bureau Veritas
Model Number: LMSB120/35
Minimum Order Quantity: 1
Price: US$230000-250000/SET
Packaging Details: Wooden Cases and Wooden Pallet
Payment Terms: L/C, T/T, Western Union
Model NO.: SJ-120/35 Condition: New
Main Electrical Parts: ABB, Omron, Rkc, Schneider, Siemens Etc Sheet Thickness: 0.2-2mm
Transport Package: Wooden Cases And Wooden Pallet Origin: Qingdao, Shandong, China
Customized: Customized Sheet Width: 800-2100mm
Trademark: Qingdao Leader Machinery Specification: CE ISO SGS GOST;BV
Max Capacity: 200-450kg/H Sheet Structure: Single Layer, 2 Layers A/B, 3 Layers A/B/A
Calibrating Method: Three Roller Calendars
High Light:

PE T-Lock Plastic Sheet Extrusion Line

,

1.1 M Plastic Sheet Extrusion Line

,

1.1 M pet sheet extrusion line

1.1 m Width PE T-Lock Plastic Sheet Extrusion Line

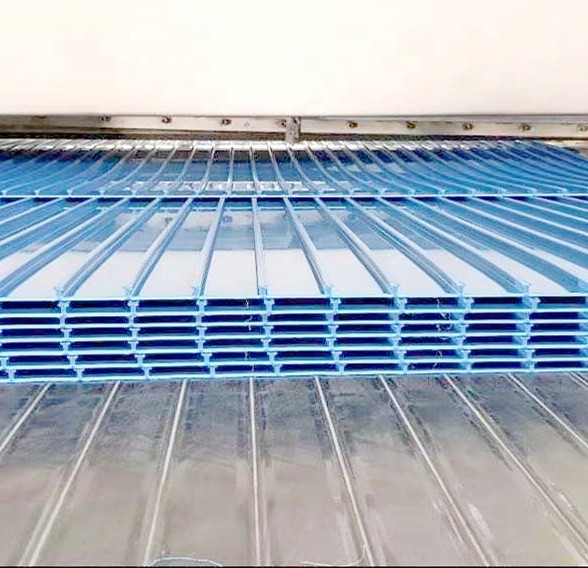

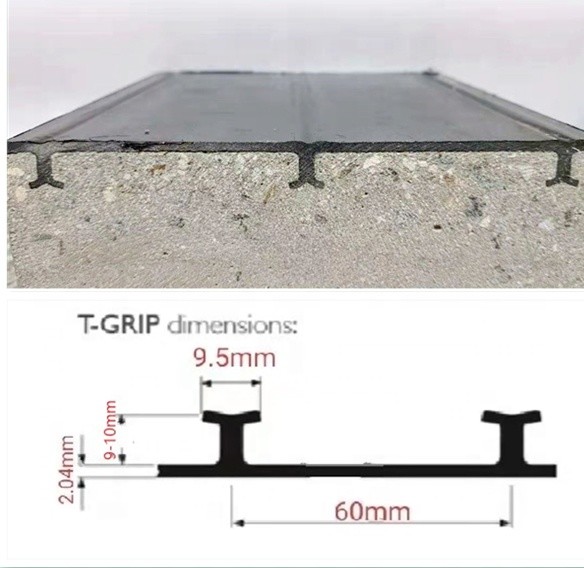

T-grip sheet is mainly used in basis construction concrete casting of the construction joints and deformation constitute the basis of engineering for the integration and joints of concrete, such as tunnel, culvert, aqueduct, dam, reservoir structures, undergroundfacilities; Because of elastic deformation characteristics, people use it for seal up and impermeable of construction, features anti-ero-sion, good durability wear durableness.



Technical data

Screw diameter 120mm
L/D 36:1
Main motor power 160kw
Sheet thickness 1-5mm
Sheet width 1.1m
Output 300-400kg/h
Installed power 250-300kw

1.1 M Width PE T-Lock Plastic Sheet Extrusion Line 0

1.1 M Width PE T-Lock Plastic Sheet Extrusion Line 1



COMPANY CERTIFICATIONS OF:

1.1 M Width PE T-Lock Plastic Sheet Extrusion Line 2

1.1 M Width PE T-Lock Plastic Sheet Extrusion Line 3

COMPANY CERTIFICATIONS OF:

1.1 M Width PE T-Lock Plastic Sheet Extrusion Line 4

1.1 M Width PE T-Lock Plastic Sheet Extrusion Line 5

The 34th International Extrusion on Plastics and Rubber Industries

1.1 M Width PE T-Lock Plastic Sheet Extrusion Line 6

OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION
1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.

4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.

5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.

8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
