Name: GPPS PC PMMA GPPS APET Plate Extrusion Line Embossed Sheet Board Machine
Brand: Qingdao Leader machinery
SKU: LMSB120/35
Price: 258000 USD

GPPS PC PMMA GPPS APET Plate Extrusion Line Embossed Sheet Board Machine

Basic Information

Place of Origin:	Qingdao of China
Brand Name:	Qingdao Leader machinery
Certification:	CE;ISO9001-2000;Bureau Veritas
Model Number:	LMSB120/35

Minimum Order Quantity:	1
Price:	US$258000-260000/SET
Packaging Details:	Wooden Cases and Wooden Pallet
Payment Terms:	L/C, T/T, Western Union

Contact Now

Model NO.:

SJ-120/35

Condition:

New

Main Electrical Parts:

ABB, Omron, Rkc, Schneider, Siemens Etc

Application:

PE Geomembran, PE Impermeable Membrane

Sheet Thickness:

0.2-8mm

Transport Package:

Wooden Cases And Wooden Pallet

Origin:

Qingdao, Shandong, China

Customized:

Customized

Dimension(L*W*H):

40M(L)*5.5M(W)*3.5M(H)

Sheet Width:

800-2100mm

Trademark:

Qingdao Leader Machinery

Specification:

CE ISO SGS GOST;BV

High Light:

PC PMMA GPPS APET Plate Extrusion Line

GPPS PMMA GPPS APET Plate Extrusion Line

GPPS Embossed Sheet Board Machine

GPPS/PC/PMMA Acrylic Plastic Sheet Board Machine Extrusion Production Line

This extrusion line is specially used to produce the PMMA sheet, which is as clear as glass and has high impact resistance. So it is also called plexi-glass and acrylic sheets. By changing the three rollers calendars, this line can also produce frosted sheets, embossed sheets and other sheets for different applications.

Sheet Specifications:

Thickness: 0.8mm-10mm

Width range: 1000mm-1220mm-1560mm-2100mm

Length: Any dimension.

Color: Clear, blue, green, opal, brown, blue green etc.

Sheet structure: single layer or co-extrusion layers ABA type with UV coating on both sides.

Characteristics and Main Applications:

Characteristics of PMMA sheets:
High transparency, aging resistance, high impact resistance, sound and thermal insulation, UV resistance, heat resistance, fire resistance, light weight, color stability, easy transportation etc.

Main Applications of PMMA sheets:
Interior and exterior decoration(Suspended ceiling, sky light, windows, advertising board, bathroom, kitchen cabinet, aquariums, telephone booth), light box, light guide panel (LGP), advertising lamp, instrument, highway insulation etc.

Machine Specifications and Production Flows:
MD-500 Drying and mixing machine→XAL-3HP Automatic vacuum feeding machine→SJ-130/36 Single screw extruder for PC→Hydraulic screen exchanger for PC→Melting gear pump for PC→SJ-45/30 Single screw co-extruder for UV layer on both sides→Melting gear pump for UV→T-type die head(2300mm width)→Three-roller calendars with 45 degree angle installation →Rollers thermo-controlling machine→Protective film coating unit →Cooling frame & edge cutting device→Haul-off machine with double rollers →Saw cutting machine→Belts conveying table →Sheet stacker

Main Technical Parameters:


			Main extruder Dia.
			120mm
			130mm


			Main screw L/D ratio
			36:1
			38:1


			Main extruder drive
			185kw
			250kw


			Co-extruder Dia.
			45mm
			45mm


			Co-extruder L/D ratio
			30:1
			30:1


			Co-extruder drive
			22kw
			22kw


			Thickness of sheet
			0.8-8mm
			1.5-10mm


			Width of sheet
			1000-1560mm
			1220-2100mm


			Output
			≥420kg/h
			≥600kg/h


			Power installed
			380kw
			520kw

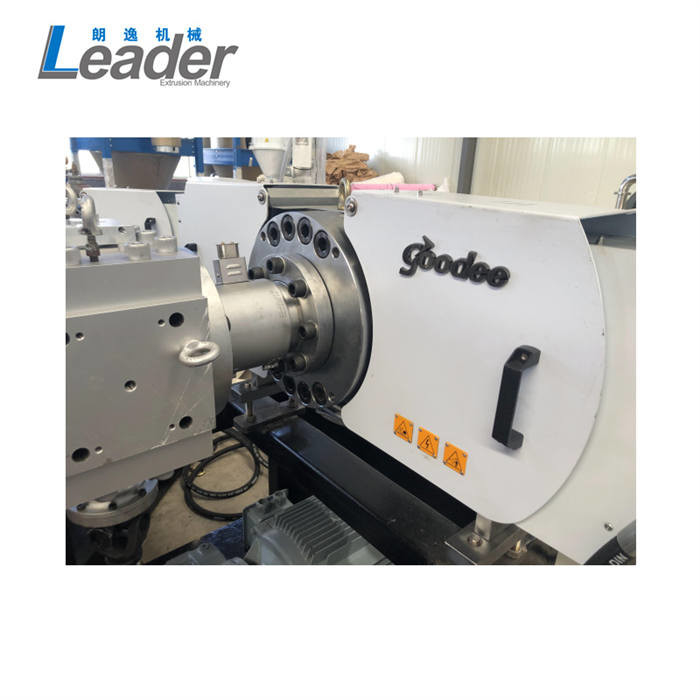

GPPS PC PMMA GPPS APET Plate Extrusion Line Embossed Sheet Board Machine 1

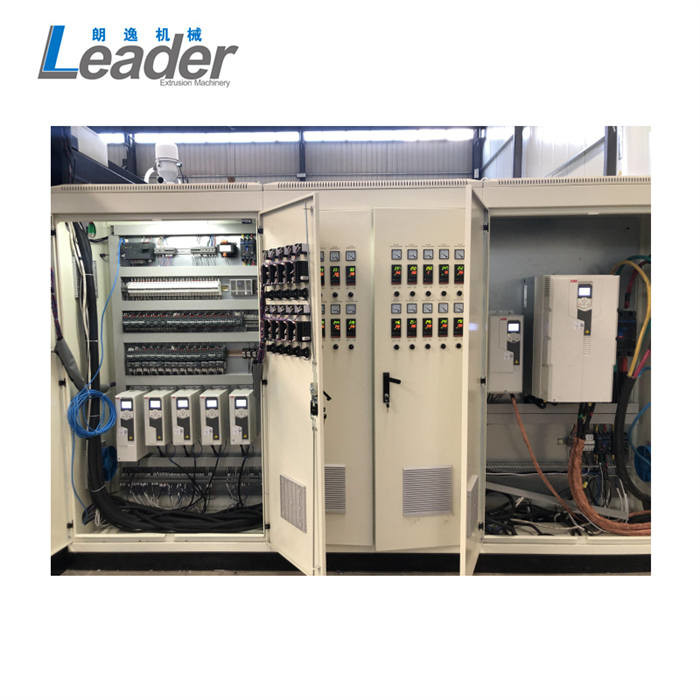

GPPS PC PMMA GPPS APET Plate Extrusion Line Embossed Sheet Board Machine 2

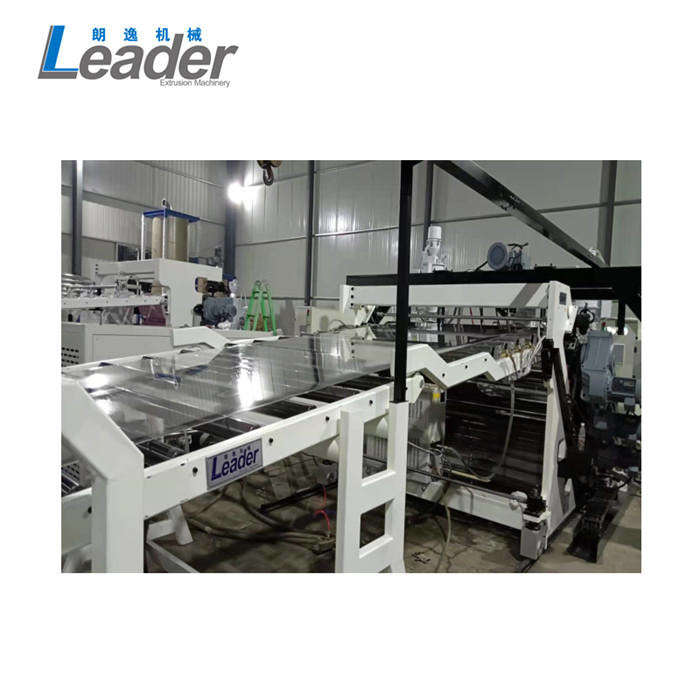

GPPS PC PMMA GPPS APET Plate Extrusion Line Embossed Sheet Board Machine 3

COMPANY CERTIFICATIONS OF:

The 34th International Extrusion on Plastics and Rubber Industries

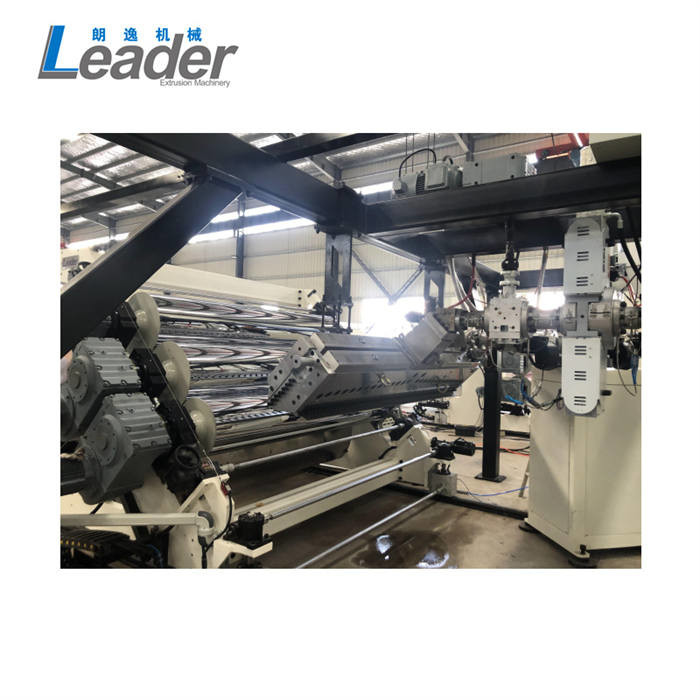

GPPS PC PMMA GPPS APET Plate Extrusion Line Embossed Sheet Board Machine 8

Tag:

pet sheet production line

pet extrusion line

pet sheet extrusion machine

Qingdao Leader Machinery Co., Ltd

South of Yangjialin, Beiguan,Jiaozhou City, Qingdao, China

86-138-06392693

maggie@extruder-cn.com

Main extruder Dia.	120mm	130mm
Main screw L/D ratio	36:1	38:1
Main extruder drive	185kw	250kw
Co-extruder Dia.	45mm	45mm
Co-extruder L/D ratio	30:1	30:1
Co-extruder drive	22kw	22kw
Thickness of sheet	0.8-8mm	1.5-10mm
Width of sheet	1000-1560mm	1220-2100mm
Output	≥420kg/h	≥600kg/h
Power installed	380kw	520kw
