| Place of Origin: | QingDao, ShanDong, China |
|---|---|
| Brand Name: | QingDao Leader |
| Certification: | CE, ISO9001-2000; BV |
| Model Number: | LSJ100/35 |
| Minimum Order Quantity: | 1 sets |
| Price: | US$75000-115000/SET |
| Packaging Details: | Wooden Pallet/Cases with Streching Films |
| Payment Terms: | L/C, T/T, Western Union |
| Condition: | New | Transport Package: | Wooden Pallet/Cases With Streching Films |
|---|---|---|---|
| Origin: | QingDao, ShanDong, China | Customized: | Customized |
| Guaraneed Time: | 12 Months | Main Electrical Parts: | ABB, Omron, Rkc, Schneider, Siemens |
| Extruder Model: | High Efficiency Single Screw Extruder | Three Roller Calendars: | Vertical Type, Alloy Steel Material |
| High Light: | CPET Multilayer Sheet Co Extrusion Line,PETG Multilayer Sheet Co Extrusion Line,APET co extrusion machine |
||

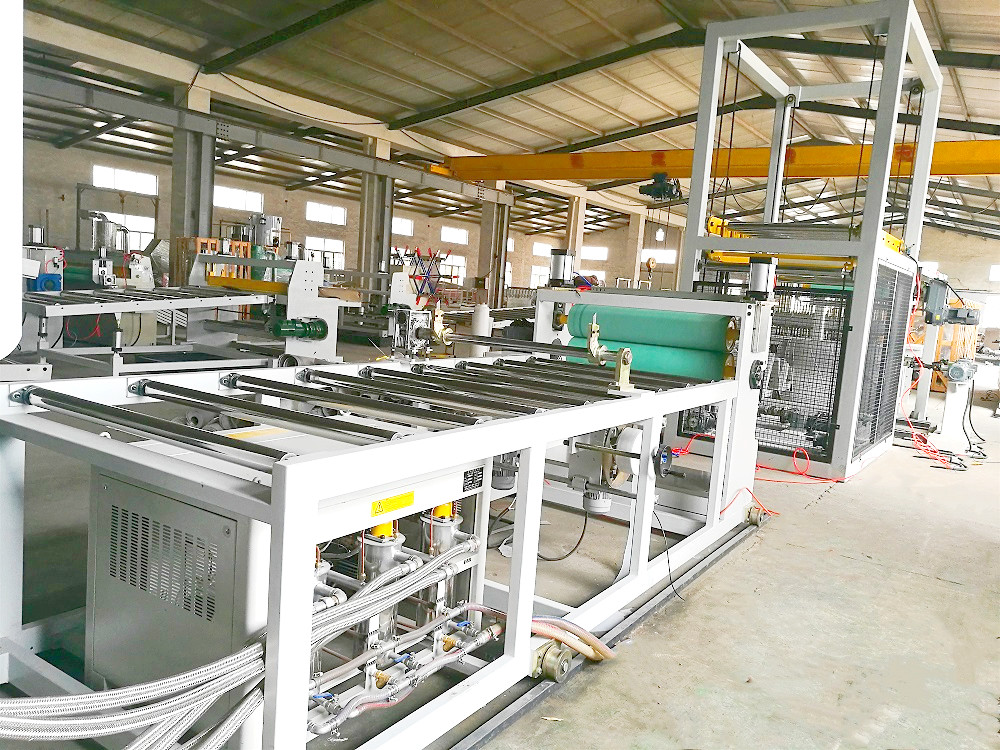

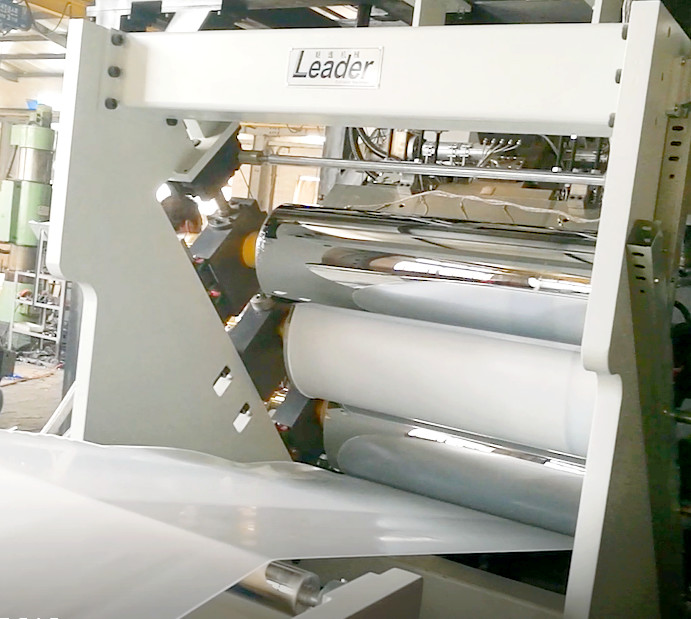

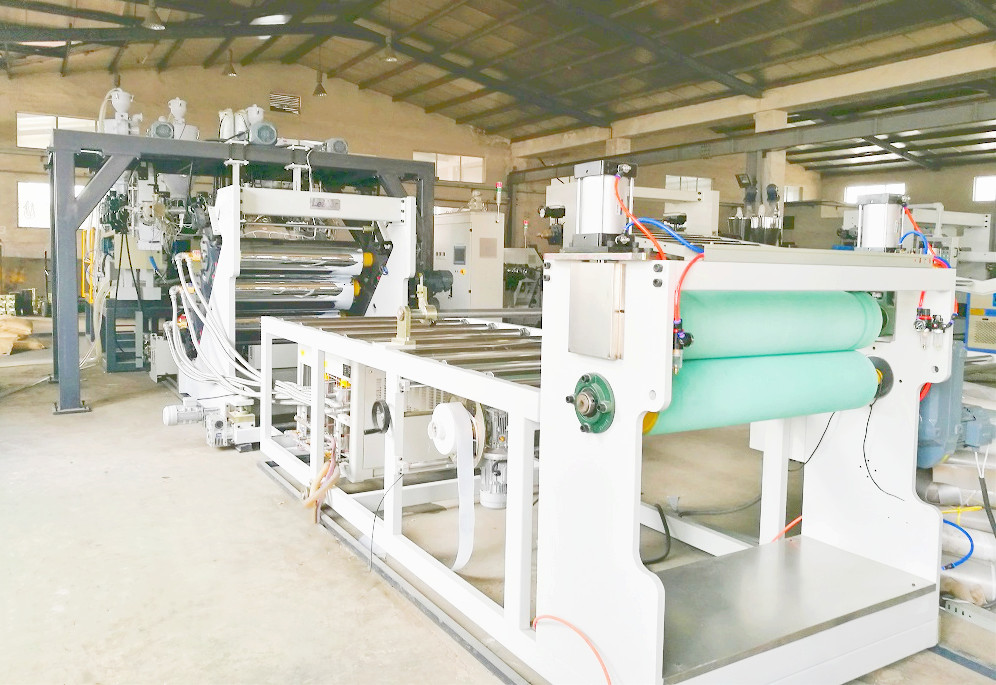

PLA, APET, PETG, CPET Sheet Extrusion Line
1) PLA, APET, PETG, CPET single-layer or multi-layer sheet extrusion machine
It’s one of the most advanced production lines with matured technology and stability in
China. Compared with other same kind equipment, it’s over 30% higher in overall efficiency. This line is suitable for PLA,APET,PETG,CPET as well.
2) CPET is a kind of modified PET, with good resistance to high temperature, It is usually used for package in microwave oven.
3) PET stereoscopic optical grating sheet
It can be used as top grade package for cosmetics, medicine, tobacco & alcohol and common goods such as stationery, advertisements, posters and all kinds of cards.
4) PLA is a kind of line shape Aliphatic Polyesters. PLA can be used in rigid package of fruits, vegetables, eggs, cooked food and roast food, also can be used for packaging of sandwich, biscuit and some other packages like fresh flower.
Main technical parameters
| Model | Multi layer | Single layer | Highly-efficient |
| Extruder specification | 120/65-1000 | 120-1000 | 150-1500 |
| Thickness of the product | 0.20-1.5mm | 0.2-1.5mm | 0.2-1.5mm |
| Main motor power | 110kw/45kw | 110kw | 160kw |
| Max extrusion capacity | 500kg/h | 450kg/h | 800kg/h |
PACKAGING & SHIPPING:
COMPANY CERTIFICATIONS:
OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION
1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.
4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.
5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.
7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.
8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
