Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width

Basic Information
Place of Origin: QingDao, ShanDong, China
Brand Name: QingDao Leader
Certification: CE, ISO9001-2000; BV
Minimum Order Quantity: 1 sets
Packaging Details: Wooden Pallet/Cases with Streching Films
Payment Terms: L/C, T/T, Western Union
Condition: New Transport Package: Wooden Pallet/Cases With Streching Films
Origin: QingDao, ShanDong, China Customized: Customized
Guaraneed Time: 12 Months Main Electrical Parts: ABB, Omron, Rkc, Schneider, Siemens
Board Width:: 1000-2050mm Board Thickness:: 1-18mm
Application:: Stationery,containers,handbags Die Head:: T-Type, Jc-Times Brand
Transportation:: 2X40f Containers Extruder Model: High Efficiency Single Screw Extruder
Three Roller Calendars: Vertical Type, Alloy Steel Material
High Light:

250kg/H PVC Foam Board Extrusion Line

,

Stationery Foam Board Extrusion Line

,

1000mm Width Board Extrusion Line

PVC Free Foam Board Extrusion Line (PVC Free Foam Board And PVC Celuka Foam Board)



PVC foam board extrusion line

PVC foam board also named Snow board and Andy board, the chemical component is polyvinyl chloride, also can be named foam polyvinyl chloride board.
PVC Semi-Skinning foam manufacturing technique is combine free foam technique and semi-skinning foam to develop new technology, this equipment have advanced structure,simple formulation,easy operation etc. features.



Two typles:pvc free foam board and pvc celuka foam board (co-extrusion foam board),widely used for:
Construsion and decoration field:construction outside wall panel,indoor decoration,apartment,office,public place partitions,furniture industry etc.
Advertising field:screen printing,computer,advertising signs,display boards,signage boards.
Industrial application:chemical anti-corrosion engineering,thermoforming parts,cold storage board,environmental boards etc.



This line consists of:

1. Spring feeding machine 1 set
2. Conical twin screw extruder 1 set
3. T-type die head 1 set
4. Three roller calendars and rollers thermocontrolling machine 1 set
5. Cooling frame and edge cutting device 1 set
6. Haul off machine 1 set
7. Longitudinal cutting machine 1 set
8. Cross cutting machine 1 set
9. Stacker
Other optional parts:
10. High speed hot and cold mixer 1 set
11. Plastic crusher 1 set
12. Plastic pulverizer 1 set
13. Water chiller 1 set



Main technical data:

Board width 1000mm 1220mm 1560mm 2050mm
Board thickness 1-10mm 1-18mm 1-12mm 1-10mm
Extruder model SJSZ65/132 SJSZ80/156 SJSZ80/156 SJSZ80/156
Max capacity 250kg/h 350kg/h 400kg/h 400kg/h
Main motor power 37kw 55kw 75kw 75kw

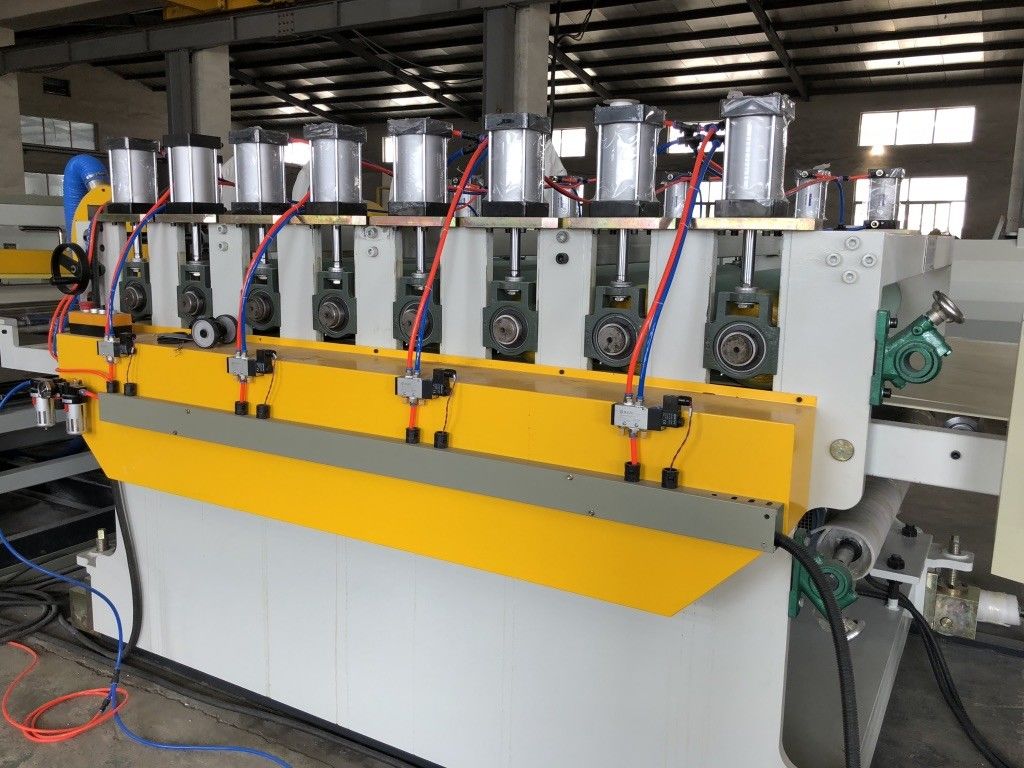

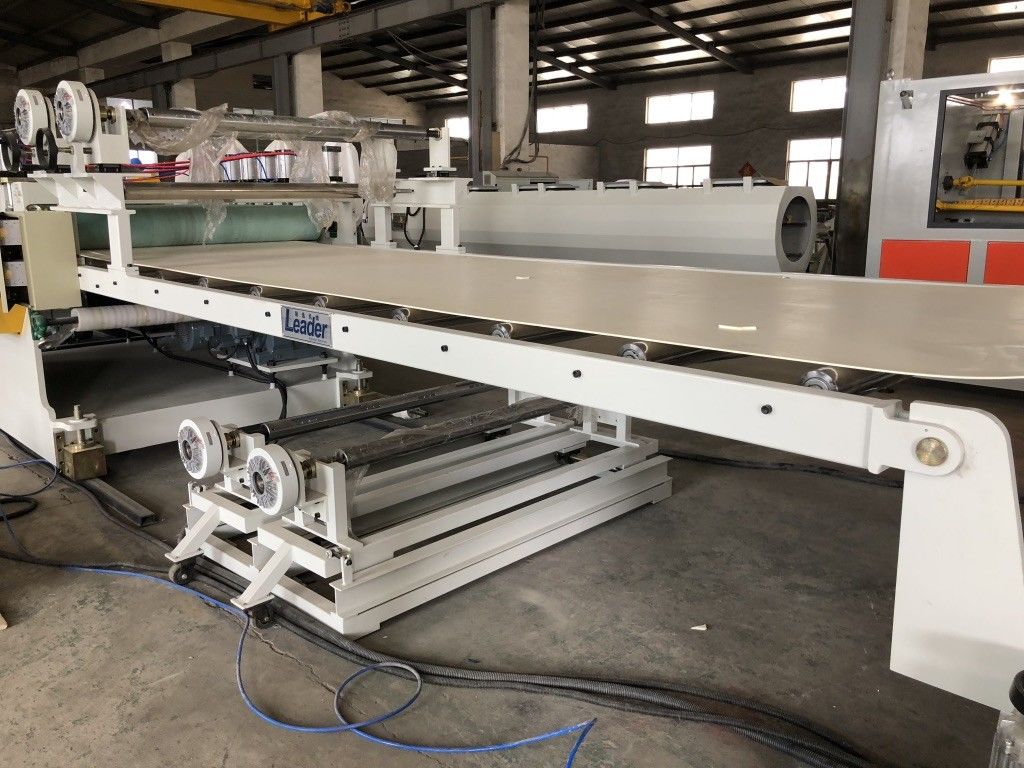

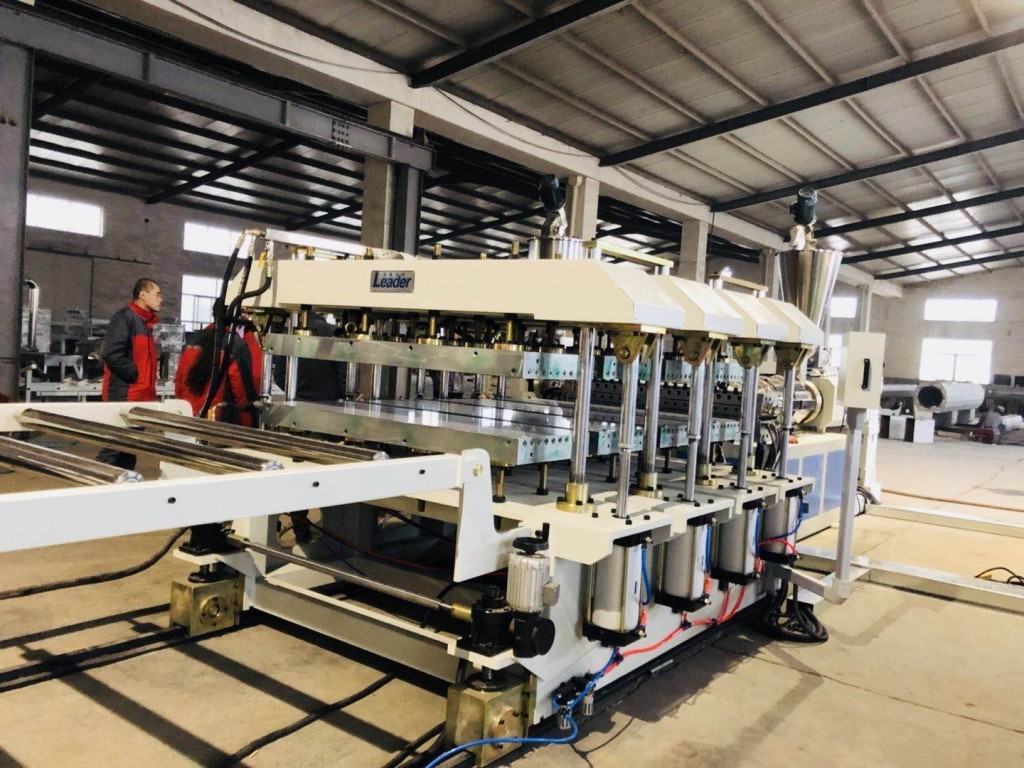

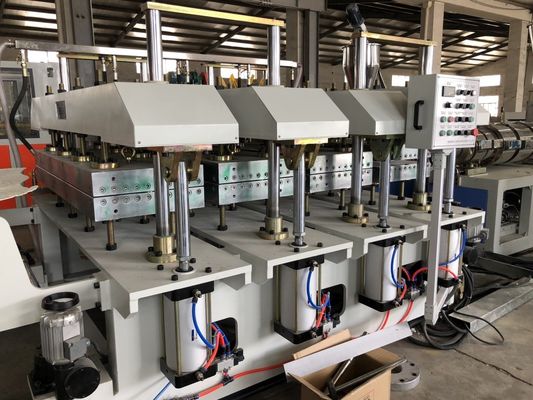

MACHINE PICTURES:

Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 0Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 1Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 2Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 3Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 4

Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 5





PACKAGING & SHIPPING:



Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 6



COMPANY CERTIFICATIONS:


Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 7
COMPANY TRADE SHOWS AROUND THE WORLD:
Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 8
Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 9
Stationery 250kg/H PVC Foam Board Extrusion Line 1000mm Width 10

OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION

1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.

4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.

5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.

8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.


9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
