|Place of Origin:||CHINA QINGDAO|
|Brand Name:||LEADER MACHINERY|
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden cases/pallets with stretching films|
|Delivery Time:||40-50 days after prepayment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||35 sets per year|
|Nonwoven Width:||1600mm||Extrusion Capacity:||1500-1800kg/per Day|
|Installed Power:||583kw||Extruder Model:||LSJ-90/30|
|Weight Per Sqm:||15-80g||Production Speed:||8-80m/min|
|Meltblown Die Head:||JC TIMES Brand||Guaranteed Time:||18 Months|
1600mm PP Sheet Extrusion Line,
Meltblown PP Sheet Extrusion Machine
For masks filtering cartridge 1600mm width PP meltblown non-woven fabric making machine
For face masks core material PP melt blown non-woven fabric extrusion line extruder machine
Meltblown non-woven fabric is the core material of masks. Meltblown cloth mainly uses polypropylene as the main raw material, and the fiber diameter can reach 1 to 5 microns. There are many voids, fluffy structure and good anti-wrinkle ability. Ultrafine fibers with unique capillary structure increase the number and surface area of fibers per unit area, so that the meltblown cloth has good filterability, shielding, heat insulation and oil absorption. Can be used in the fields of air, liquid filter materials, insulation materials, absorption materials, mask materials, thermal insulation materials, oil absorption materials, and wiping cloths.
Meltblown cloth equipment has stable running performance, high output and high efficiency. The production of non-woven fabrics is uniform, strong, breathable, non-toxic and tasteless, and meets environmental protection standards.
The melt blown cloth equipment of Leader Machinery consists of PP single screw extruder, hydraulic double pistion filter, melt pump, melt blown spinneret, air heating system, work platform, track receiver, roller receiver, negative pressure suction winding system, pneumatic control system, production line control system.
|Model of extruder||SJ-55||SJ-90||SJ-110||SJ-135||SJ-150|
|Weight of products||8-80g/m2||8-80g/m2||8-80g/m2||8-80g/m2||8-80g/m2|
single screw extruder →hydraulic screen changer→melt gear pump→melt blown die head →net forming unit→eletrostatic electret→winder

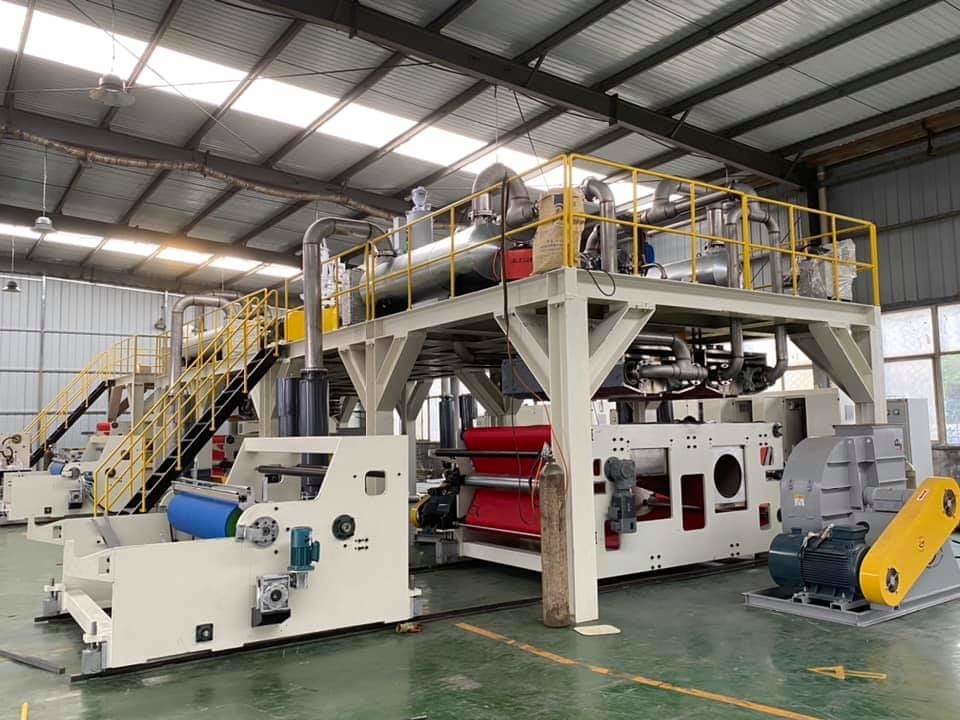

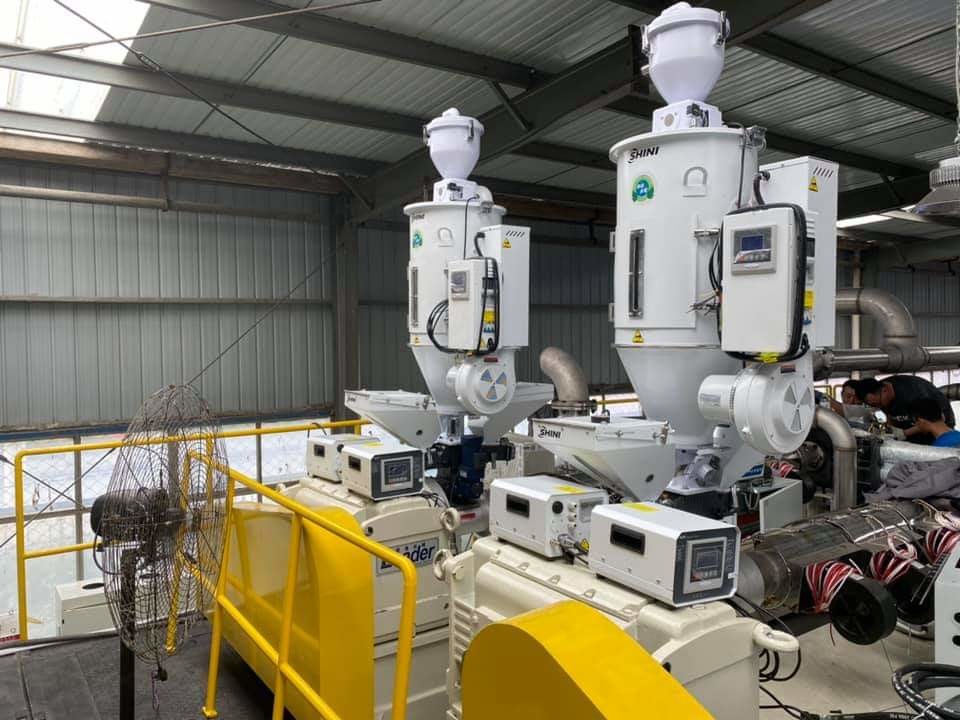

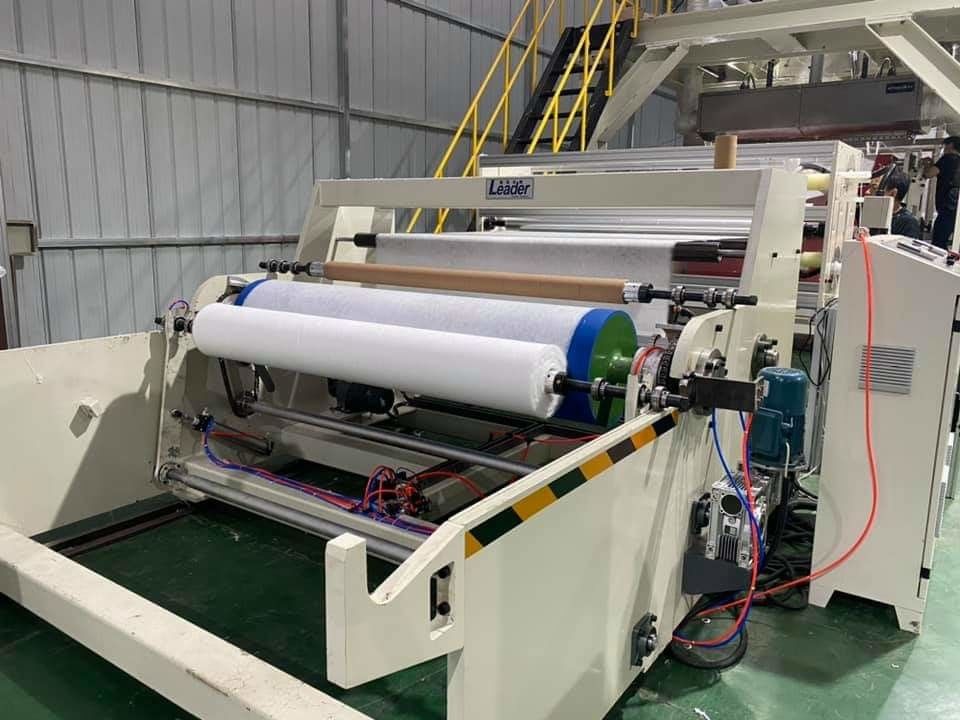

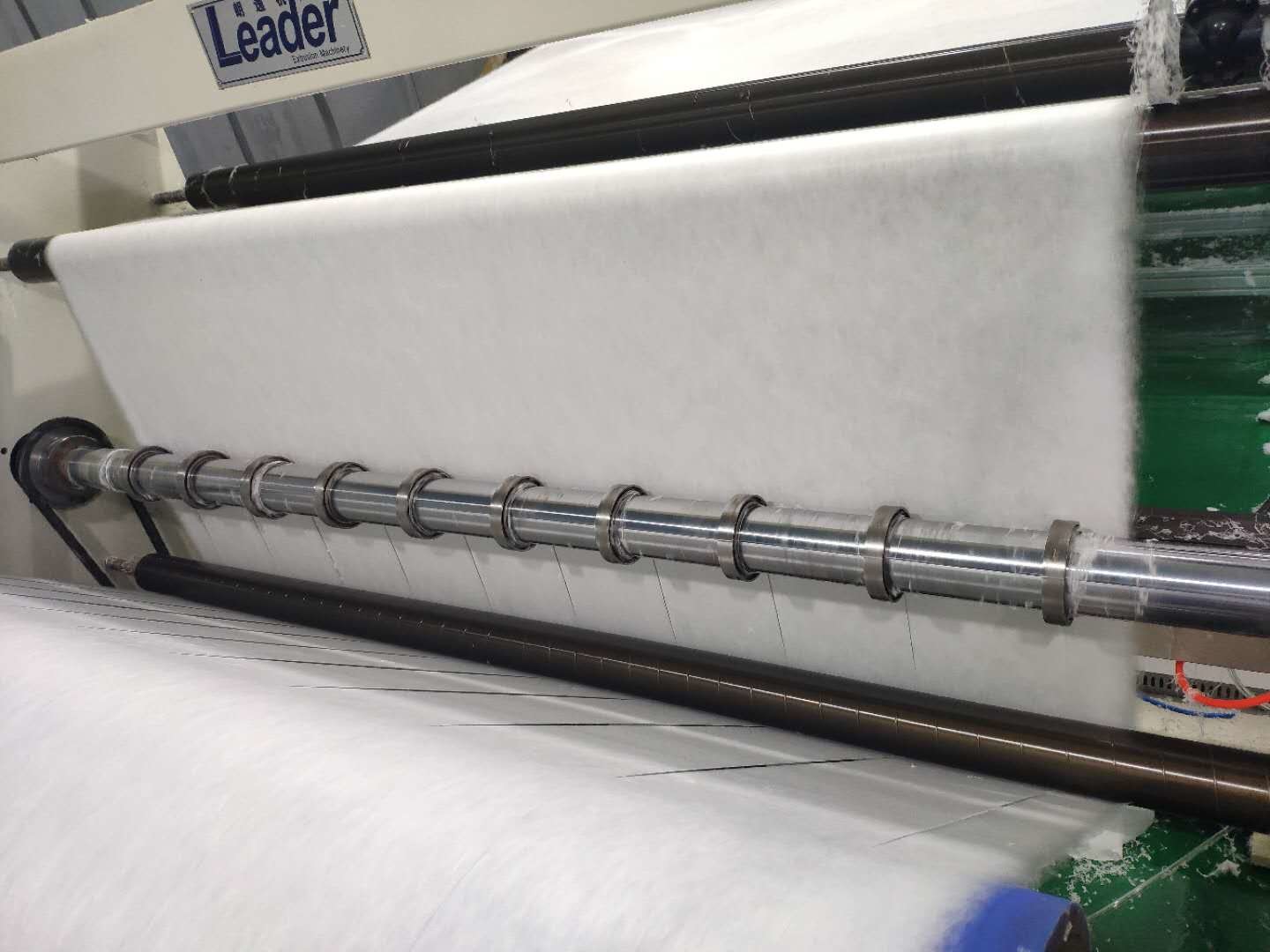

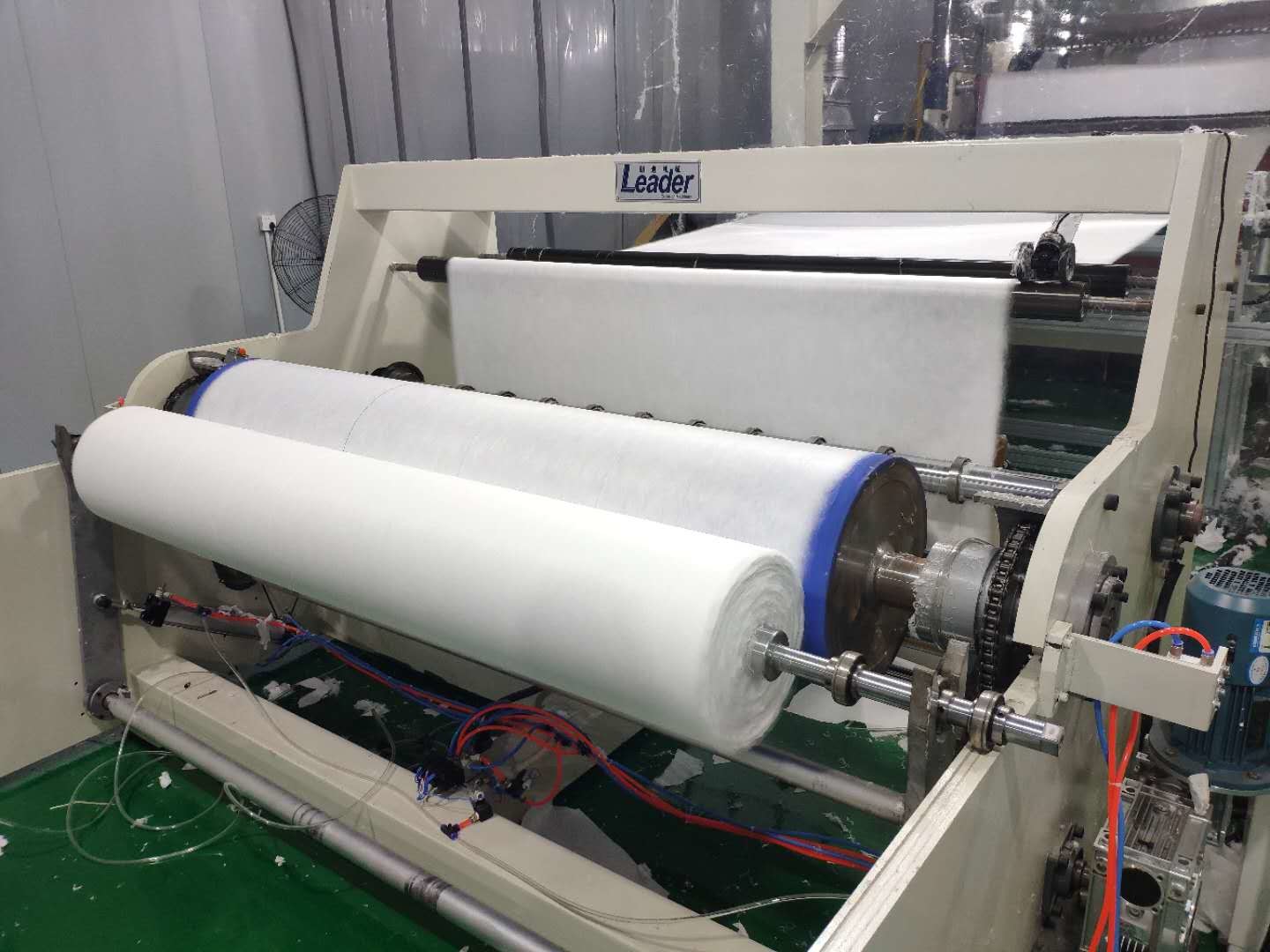

More machine pictures:
