Super Transparent Medical Goggle PETG Sheet Extrusion Line

Basic Information
Place of Origin: Qingdao, China
Brand Name: Qingdao Leader
Certification: CE ISO SGS GOST
Model Number: SJ120/35
Minimum Order Quantity: 1 set
Packaging Details: plywood pallet
Delivery Time: 90 workdays
Payment Terms: T/T, L/C
Supply Ability: 22 Sets / Year
Name: Super Transparent Medical Goggle PETG Sheet Extrusion Line Material: PET Granules
Extruder Type: Single Screw Extruder Thickness: 0.15-1.5mm Or Customised
Width: 700mm 1200mm 1500mm Or Customised Max Capacity: 500kg/h
High Light:

PETG Sheet Extrusion Line


500kg/h PET Sheet Extrusion Machine

Super Transparent Medical Goggle PETG Sheet Extrusion Line


Introduction :


This line is specially used for producing PET single layer or multi-layer sheet or plate , suitable in the fields of packaging , stationery , chemicals , construction , household appliances and so on . Equipped with degassing system, so no need drying or crystalizing unit Multi components dosing feeder can control the percentage of virgin material, recycling material

and master bacth precisely.


Main technical data :

​Usual sheet width : 700mm-1500mm or customised .
​Usual sheet thickness : 0.15-1.5mm
​Extruder : special screw structure , imported world-know  thermocontrollers , electronics , hard gear face reducers to ensure high effective material extrusion capacity .

T-type die head : suitable compression ratio to ensure uniform flow stability .

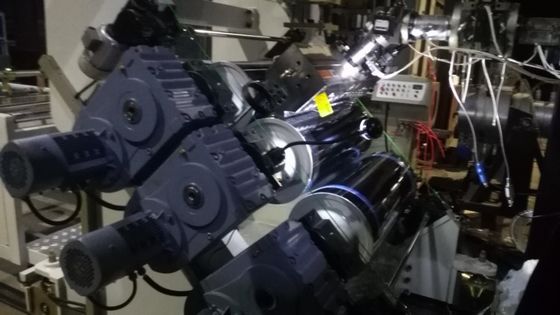

​Three-roller calendar : according to the material properties , adopting vertical three-roller oblique three-roller , horizontal three-roller calendar . Internal roller temperature control using a unique flow channel , so that the stability of uniform distribution roller . The independent oil temperature control for three roller to ensure more stable and exact control .


Technical Specification :


Model Multi Layer Single Layer High-efficient
Extruder Specification sj75&36/40-1000 SJ75/40-1000 SJ95&52/44-1500
Product Thickness 0.15-1.5mm 0.15-1.5mm 0.15-1.5mm
Main Motor Power 110kw/45kw 110kw 250kw/55kw
Max Extrusion Capacity 500kg/h 450kg/h 800-1000kg/h


Super Transparent Medical Goggle PETG Sheet Extrusion Line 0
