Name: | Flat Polycarbonate Sheet Making Machine Clear PC Roofing Plastic Panel Extrusion Line | Material: | PC PMMA |
---|---|---|---|
Width: | 2100mm Or Customerized | Extruder Type: | Single Screw Extruder |
Screw Diameter: | 130mm | Main Electrical Parts: | ABB, Omron , RKC , Schneider , Siemens Etc |
HS Code: | 8477209000 | ||
High Light: | polycarbonate sheet manufacturing machine,plastic sheet making machine |
Flat Polycarbonate Sheet Making Machine Clear PC Roofing Plastic Panel Extrusion Line
Introduction
This machine is specially used to produce the polycarbonate universal solid sheets, which is as clear as glass, but the density of PC is only half of glass. And the PC solid sheet is with high impact resistance, which is also called " Unbreakable glass" . By changing the three rollers calendars, this line can also produce frosted solid sheets, diffusion solid sheets, embossed solid sheets and anti-scratch solid sheet etc for different applications.
Solid Sheet Specification :
1) Thickness: 0.8mm-16mm
2) Width range: <= 2,100mm
3) Length: Any dimension.
4) Color: Clear, blue, green, opal, brown, blue green etc.
Solid Sheet Application :
PC solid sheet is easy to be shaped with cold bending, equipment and heat synthesis processing accordingly, which used widely in all kinds of architecture, engineering and decoration etc.
1) Lighting Roofing
2) Advertisement light box
3) Carport and awnings.
4) Sound barrier
5) Protective & Police device
6) Indoor partition
7) Indoor ceiling etc
PART 3 MACHINE SPECIFICATIONS:
THIS MACHINE MAINLY CONSISTS OF: |
|||
1 |

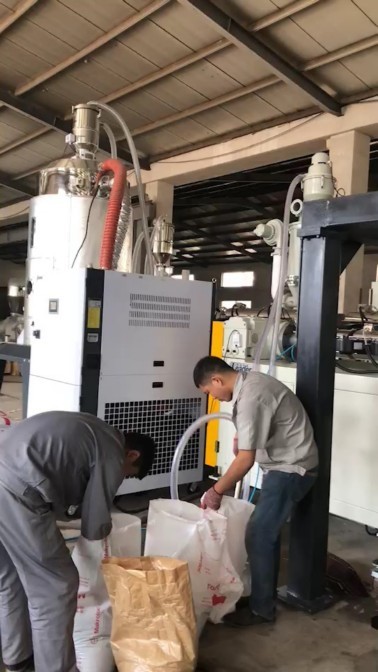

MD-500 Drying and mixing machine |
1 set |
|
2 |
XAL-3HP Automatic vacuum feeding machine |
1 set |
|
3 |
SJ-130/36 Single screw extruder for PC |
1 set |
|
4 |
Hydraulic screen exchanger for PC |
1 set |
|
5 |
Melting gear pump for PC |
1 set |
|
6 |
SJ-45/30 Single screw co-extruder for UV layer on both sides |
1 set |
|
7 |
Melting gear pump for UV |
1 set |
|
8 |
T-type die head(2300mm width) |
1 set |
|
9 |
Three-roller calendars with 45 degree angle installation |
1 set |
|
10 |
Rollers thermo-controlling machine |
1 set |
|
11 |
Protective film coating unit |
1 set |
|
12 |
Cooling frame & edge cutting device |
1 set |
|
13 |
Haul-off machine with double rollers |
1 set |
|
14 |
Saw cutting machine |
1 set |
|
15 |
Belts conveying table |
1 set |
|
16 |
Sheet stacker |
1 set |
|
17 |
Electrical cabinet |
1 set |
|
18 |
Spare parts |
1 set |
