| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader Machinery |
| Certification: | CE . ISO . SGS . GOST |
| Model Number: | SJ-130/35 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | plywood pallet |
| Delivery Time: | 90 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Sets / Year |
| Name: | UV Protected Polycarbonate PC Embossed Sheet Extrusion Machine 1220-2100mm Wide | Material: | PC |
|---|---|---|---|
| Width: | 1220mm-2100mm | Usage: | Construction |
| Extruder Type: | Single Screw Extruder | Screw Diameter: | 120mm, 130mm |
| Guarantee Time: | 24 Months | HS Code: | 847709000 |
| High Light: | polycarbonate sheet manufacturing machine,plastic sheet making machine |
||

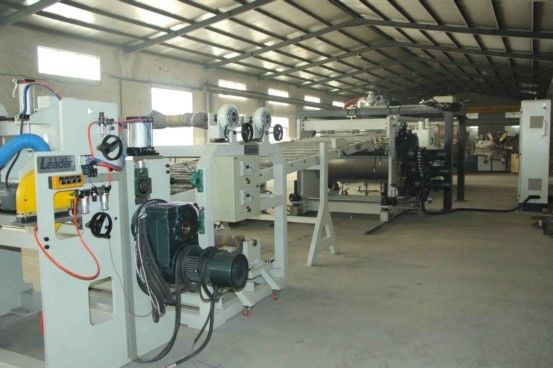

UV Protected Polycarbonate PC Embossed Sheet Extrusion Machine 1220-2100mm Wide
Introduction :
This machine is specially used to produce the polycarbonate universal solid sheets, which is as clear as glass, but the density of PC is only half of glass. And the PC solid sheet is with high impact resistance, which is also called " Unbreakable glass" . By changing the three rollers calendars, this line can also produce frosted solid sheets, diffusion solid sheets, embossed solid sheets and anti-scratch solid sheet etc for different applications.
PMMA is silimar to PC . PMMA PC plate production line is widely used in both transparent and the Advertising building materials :
Garden, the recreation place, decoration and the corridor pavilion; Internal and external ornaments in
the commercial building, curtain wall of the modern urban building; transparent container of aviation,
the windscreen in front of the motorcycle, the plane, the train, the steamer, the submarine, army and
polices shield, the telephone booth, advertising signpost, the advertisement of the lamp houses, the
expressway and overhead way of the city partition protective screen.
Machine list :
| 1 | MD-500 Drying and mixing machine |
1 set |
|
2 |
XAL-3HP Automatic vacuum feeding machine |
1 set |
|
3 |
SJ-130/36 Single screw extruder for PC |
1 set |
|
4 |
Hydraulic screen exchanger for PC |
1 set |
|
5 |
Melting gear pump for PC |
1 set |
|
6 |
SJ-45/30 Single screw co-extruder for UV layer on both sides |
1 set |
|
7 |
Melting gear pump for UV |
1 set |
|
8 |
T-type die head(2300mm width) |
1 set |
|
9 |
Three-roller calendars with 45 degree angle installation |
1 set |
|
10 |
Rollers thermo-controlling machine |
1 set |
|
11 |
Protective film coating unit |
1 set |
|
12 |
Cooling frame & edge cutting device |
1 set |
|
13 |
Haul-off machine with double rollers |
1 set |
|
14 |
Saw cutting machine |
1 set |
|
15 |
Belts conveying table |
1 set |
|
16 |
Sheet stacker |
1 set |
|
17 |
Electrical cabinet |
1 set |
|
18 |
Spare parts |
1 set |
|
Technical Parameter:
| Main extruder Dia. | 120mm | 130mm |
| Main screw L/D ratio | 35:1 | 38:1 |
| Main extruder drive | 185kw | 250kw |
| Co-extruder Dia. | 45mm | 45mm |
| Co-extruder L/D ratio | 30:1 | 30:1 |
| Co-extruder drive | 22kw | 22kw |
| Thickness of sheet | 0.8-8mm | 1.5-10mm |
| Width of sheet | 1000-1560mm | 1220-2100mm |
| Output | ≥420kg/h | ≥600kg/h |
| Power installed | 180kw | 250kw |
