Laminated PVC Roof Membrane Sheet Extrusion Line 0.5-6mm Thickness

Basic Information
Place of Origin: Qingdao, China
Brand Name: Leader Machinery
Certification: CE ISO SGS GOST GM13
Model Number: SJSZ-92/188
Minimum Order Quantity: 1 set
Packaging Details: plywood pallet
Delivery Time: 60 Workdays
Payment Terms: T/T, L/C
Supply Ability: 20 Sets / Year
Material: PVC Width: 1500-2000mm
Thickness: 0.5-6mm Max. Capacity: 600-800kg/h
Main Techincal Parts: ABB, Omron . RKC . NSK, Schneider
High Light:

pvc sheet extruder


pe extrusion line


pe extrusion machine

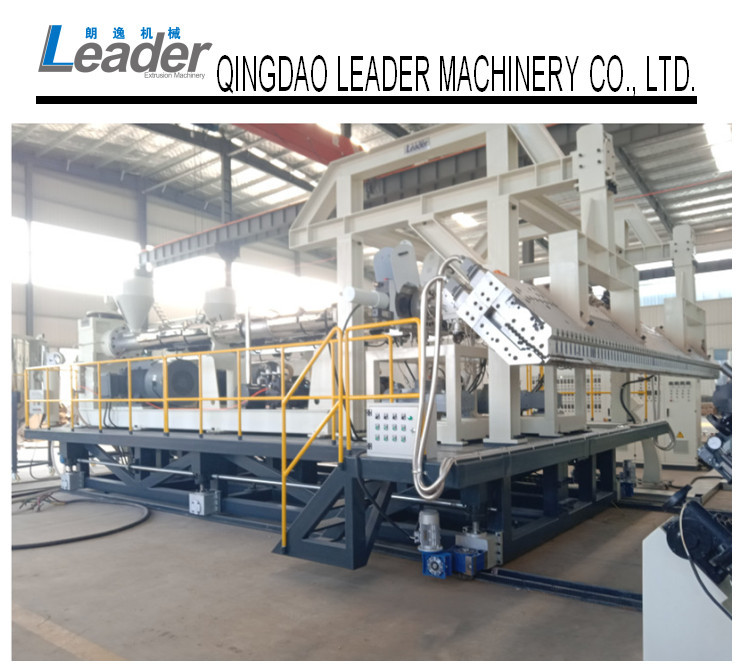

Laminated PVC Roof Membrane Sheet Extrusion Line 0.5-6mm Thickness​

Summary Introduction


The PVC Roof membrane machine adopts flat T-die extrusion process and three roller calendars calibrating technology composed of teh according downstream machines parts , like geotextile laminating unit , haul off unit , sheets accumulator , transverse cutter and automatic winder etc , using a variety of resins such as PVC , etc , as raw material to produce geomembrane waterproof sheets , also called geo liners , geomembrane linning material , geo linning products , geomembrane covers etc . The geomemrane manufactured by our machine can reach GM13 standards .



Sheet width :1500-2000mm


Sheet structure: Single layer or multi-layer co-extrusion

Sheet surface: can be smooth type , can be embossed/textured type , can be geotextile type

Sheets extrusion capacity :600-800kg/h


Processing raw material :


PVC granules , recycle falkes , carbon black of masterbatch , other filler material etc .


Main Technical Data :



Main extruder model LSJSZ-92/188
CO-extruder model SJSZ-65/132
Extrusion capacity 600-800kg/h
Installed power approximate 450kw
Main motor power 110kw
Sheets width 1500-2000mm
Sheets thickness 0.5-6mm
Thickness of the compound films 0.2-2.5mm
Sheets structure Single layers, multi-layers co-extrusion type, A/B, A/B/A type etc
Sheets surface Can be smooth type, textured types, or with geotextile laminating
Width of flat T die head 1650mm, 2200mm
Calibrating roller calendars sizes Φ450-600mm
Cooling method Circulated water Or Thermo-transferring oil



1. Liners for water conveyance canals/water reservoirs/brine solutions/solar ponds/waste

conveyance/radioactive waste liquid/secondary containment of underground storage tank etc.
2. Seepage control within zoned earth dam and water proofing in coffer dam
3. Covers for solid waste land fields/waste liquid/pollution prevention
4. Structural supports as temporary dam
5. To line canal/swimming pool/tannery waste treatment ponds/acid tanks/floors etc.

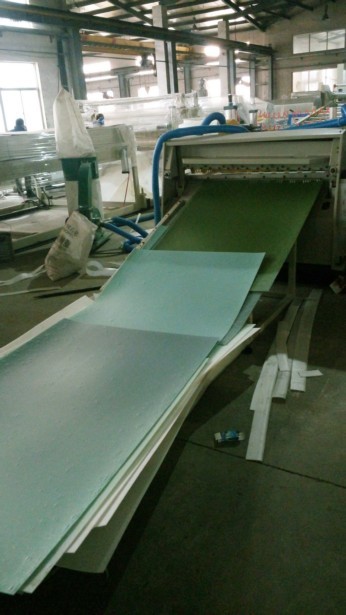

Laminated PVC Roof Membrane Sheet Extrusion Line 0.5-6mm Thickness 0
