| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJ-150/36 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | plywood pallet and transparent film package |
| Delivery Time: | 95 Workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 Sets / Year |
| Name: | Geotexile Laminated Geomembrane Waterproof Sheet Extrusion Line PLC Controlled | Material: | PE PVC TPO |
|---|---|---|---|
| Width: | 1m-3m-5mm-6mm-8mm | Thickness: | 0.5-3mm |
| Sheet Density: | 0.939g/cm3 | Max. Capacity: | 500kg/h |
| High Light: | pvc sheet extruder,pe extrusion line,pe extrusion machine |
||
Geotexile Laminated Geomembrane Waterproof Sheet Extrusion Line PLC Controlled
SUMMARY INTRODUCTION
The PE PVC waterproof geotexile sheet line is speically designed for aquaculture , pond , etc . Final sheet color can be white , black ,
and customised .The whole geotexile line capacity can get to 1000kg/h , and thickness range is 0.5-3mm .
The whole geotexile line adopt PLC automatic control system and world famouse electrical components , so the production process can keep a good steadibility production condition , and improve the production efficiency as well as final prodct quality .
LINE CONSISTS OF:
| 1 | Automatic vacuum feeding machine | 1 set | ||

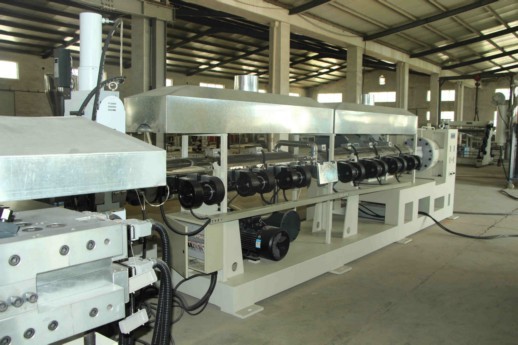

| 2 | High efficiency single screw extruder (150/36) | 1 set | ||
| 3 | Hydraulic exchanging unit +melting gear pump | 1 set | ||
| 4 | T-type /hanger type die head (JC-Times brand) | 1 set | ||

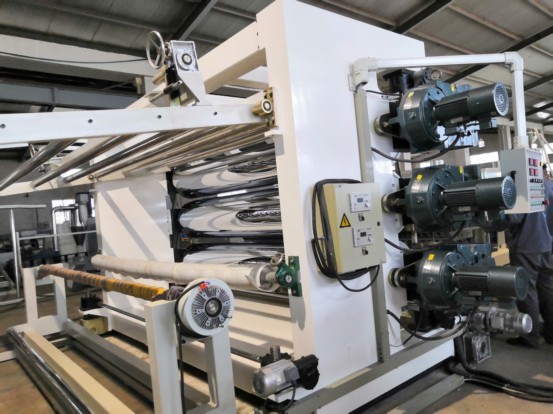

| 5 | Three Roller Calendars (alloy steel material ) | 1 set | ||
| 6 | Rollers thermoforming machine | 1 set | ||
| 7 | Cooling frame and edge cutting unit | 1 set | ||
| 8 | Haul off machine | 1 set | ||
| 9 | Plastic cutting machine-guillotine | 1 set | ||
| 10 | Twin position sheet winder | 1 set | ||
| 11 | Stacker | 1 set | ||
| 12 | Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc) | |||
| 13 | Spare parts | 1 set | ||
FINAL SHEET SPECIFICATIONS:
| Material | PE | PE |
| Sheet thickness | 0.5-3mm | 0.5-3mm |
| Sheet width | 1000-4000mm | 5000-8000mm |
| No. | Item | Value | ||||||
| 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | ||
| 1 | Density (g/cm3) |
0.939 | ||||||
| 2 | Tensile properties | |||||||
| Yield strength (N/mm) |
11 | 15 | 18 | 22 | 29 | 37 | 44 | |
| Break strength (N/mm) |
20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| Yield elongation/% | 12 | |||||||
| Break elongation/% | ≥450 | |||||||
| 3 | Tear resistance/N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| 4 | Puncture resistance/N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| 5 | Stress crack resistance/h | ≥1500 |
||||||
