| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | LMSB-120/33 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | plywood pallet and transparent film package |
| Delivery Time: | 75 Workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 18 Sets / Year |
| Name: | PET Plastic Sheet Extrusion Equipment 0.2 - 2mm Thickness 500kg/H Max Capacity | Material: | PET |
|---|---|---|---|
| Extruder Type: | Single Screw Extruder | Thickness: | 2-10mm |
| Width: | 1000mm -2300mm | Max Capacity: | 500kg/h |
| Origin: | Qingdao Of China | HS Code: | 8401200000 |
| High Light: | pet extruder machine,pet sheet making machine,pet extrusion machine |
||

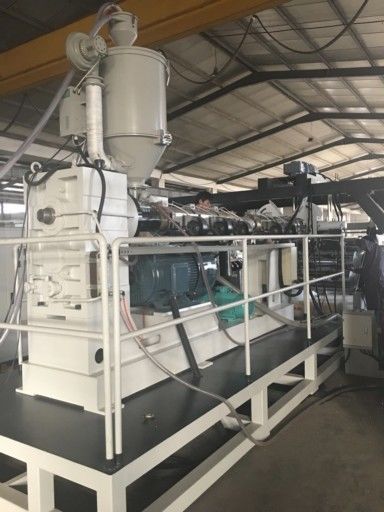

PET Monolayer/Multilayer PET Sheet Manufacturing Machine 0.2-2mm Thickness
PET Plastic Sheet Extrusion Equipment 0.2 - 2mm Thickness 500kg/H Max Capacity
1. Summary Introduction :

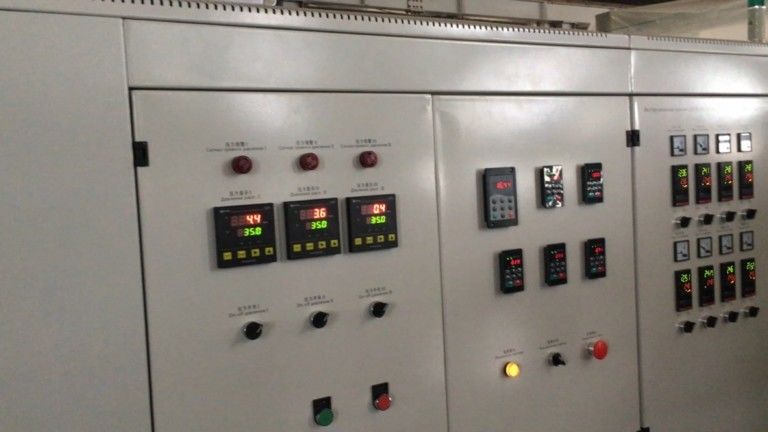

This PET sheet extrusion line is customized and equipped with different center control machines and moulds ,
The PET Sheet Extrusion Line is designed for PET mono/multi layer sheet for packing indusry . The technolosy of single
screw extruding with low dew=-point dehumidifying system for high quality products in high transparency wthout buddle ,
which will be very important for thermoforming .
2. Raw Material for PET Sheet Making Machine :
2.1 can be virgin plastic PET material
2.2 can be recyclable material, like PET bottle Flakes .
3. Technical Parameters :
| Extruder Model | LMSB-90/35 | LMSB-100/35 | LMSB-120/35 | LMS-100/65 | LMSB-120/65 |
| Sheet Width | 300-610mm | 500-950mm | 1000-1500mm | 500-950mm | 1000-1500mm |
| Sheet Thickness | 0.15-1.4mm | 0.15-1.4mm | 0.15-2mm | 0.25-1.4mm | 0.25-1.4mm |
| Driving Motor | 75KW | 90KW | 132KW | 90KW,75KW | 132KW, 65KW |
| Line Speed | 25m/min | 25m/min | 28m/min | 28m/min | 28m/min |
| Capacity | 180kg/h | 300kg/h | 550kg/h | 450kg/h | 650kg/h |
