High Hardness PVC Celuka Foam Board Machine 400kg/H Capacity 180kw

Basic Information
Place of Origin: Qingdao of China
Brand Name: Leader
Certification: ISO CE SGS GOST
Model Number: PVC
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wooden Cases and Wooden Pallet
Delivery Time: 60-80days
Payment Terms: T/T
Supply Ability: 18sets/year
Extruder Model: Conical Twin Screw Extruder- 80/156 Condition: New
Board Width: 1220mm Board Thickness: 5-25mm
Board Application: Cabinet, Furniture, Construction Etc Max Capacity: 400kg/H
Installed Power: 180kw Die Head: T-Type, Hongda Brand
Calibrating Method: Calibrating Boards 4 Groups Main Eletrical Parts: ABB, Omoron, Siemens, Schnider, Delix, Rkcetc
Transport Package: Wooden Cases With Vacuum Film HS Code: 8777209000
High Light:

pvc foam board manufacturing machine

,

pvc foam board production line

PVC WPC Celuka/Crust Foamed Board Production Line

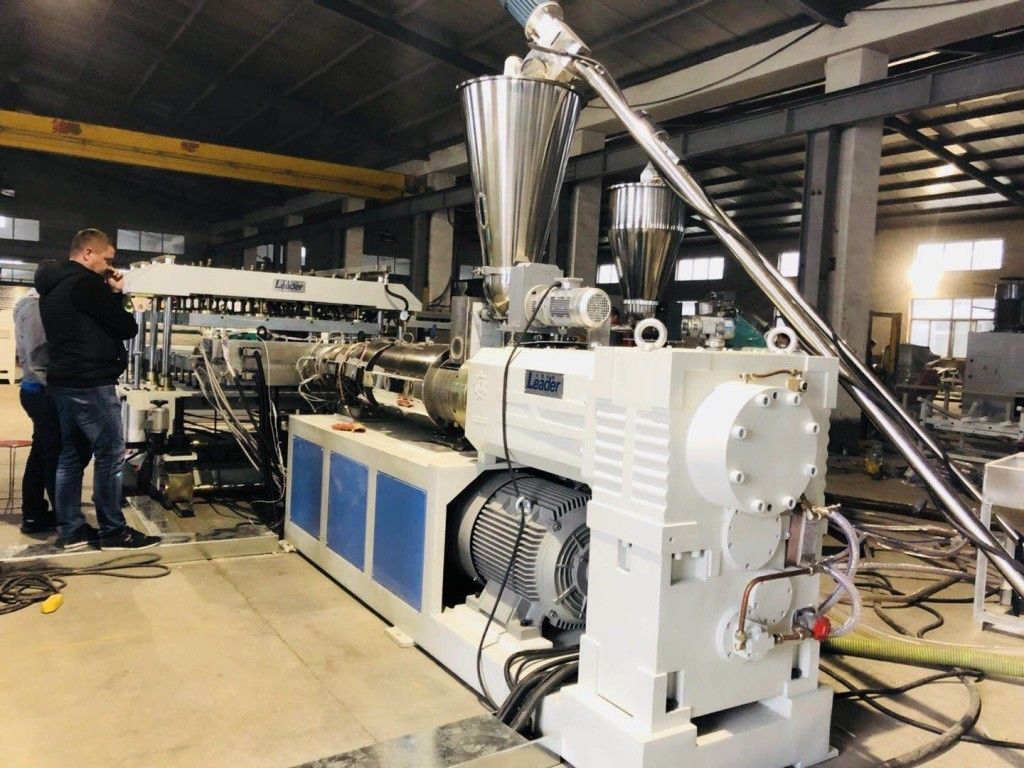

This series Celuka WPC PVC foam board extrusion line mainly consists of conical twin screw extruder, the T-type die head and the auxiliary machine parts. Adopting the latest technology, we can also produce pvc co-extrusion crust foam boards. The color and hardness of the boards surafce can be adjusted according to the customers' requirements, the middle layer can be all recycle material for saving much cost.

THE APPLICATIONS OF THE BOARDS

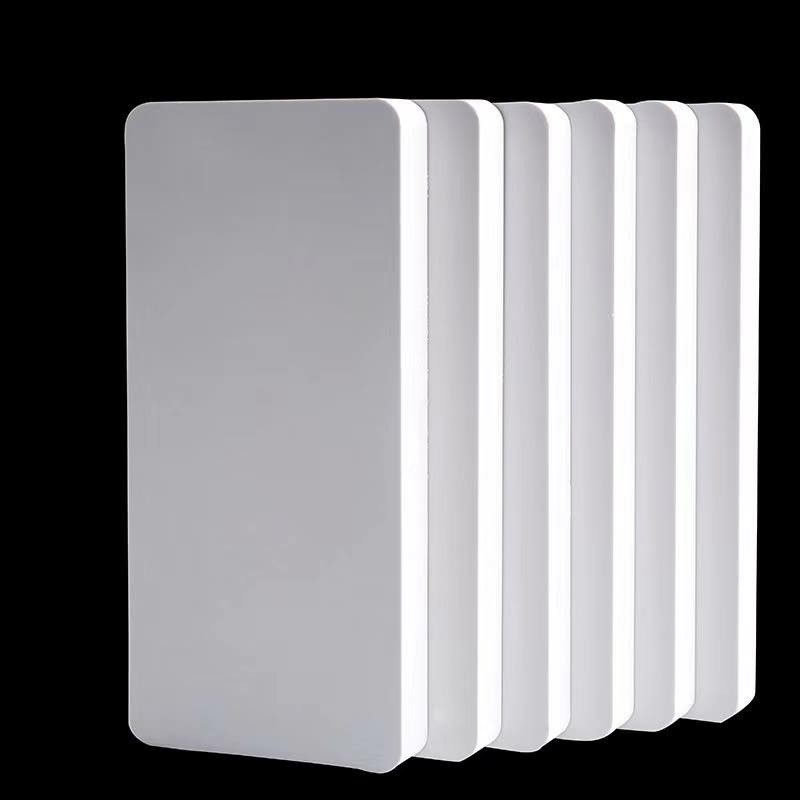

PVC crust foam board surface is smooth and the hardness is very high. It is difficult to be scratched, widely used in office furniture, kitchen cabinets, bathroom cabinets, and condole roof decoration, building templates etc, which is the good replacement of wood, Aluminum board, composite board, MDF board, polywood board etc,

MACHINES CONFIGURATIONS:

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)
1 SJF-700 Spring Feeding Machine 1 set
2 SJ-80/156 Conical Twin Screw Extruder 1 set
3 T-type die head with mold temperature controller 1 set
4 Vacuum calibrating table 1 set
5 Cooling frame + edge trimming units 1 set
6 Embossing rollers 1 set
7 Haul off machine 1 set
8 Two edge saw cutting unit 1 set
9 Cross saw cutting machine 1 set
10 SFL1250 Stacker 1 set

PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
11 High speed hot and cold mixer 1 set
12 Plastic crusher 1 set
13 Plastic pulverizer 1 set
14 Air compressor 1 set
15 Industrial water chiller 1 set

PART 3 SHEET SPECIFICATIONS
1 Sheet width 1220
2 Sheet thickness 3-20mm
3 Type Rigid pvc, wood powder

PART 4 SHEET APPLICATIONS
1 Furniture boards, cabinet boards, construction board/templetes, clapped boards, decoration boards etc.

PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES
1 Payment terms 40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2 Delivery time 60 days after receipt of prepayment
3 Packing method Wooden cases/pallets with stretching films
4 Guaranteed time 18 months for mechanical parts, 12 months for electrical parts
5 After sale service Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
6 Contact sales@extruder-cn.com
