Name: | Polycarbonate PC PMMA Optic Sheet Extrusion Line 1220mm With 120mm Screw Diameter Extruder | Material: | PC PMMA |
---|---|---|---|
Width: | 1220mm-2100mm | Usage: | Automative Industry , Film Switch Of Electronics |
Extruder Type: | Single Screw Extruder | Screw Diameter: | 120mm |
High Light: | polycarbonate sheet manufacturing machine,plastic sheet making machine |

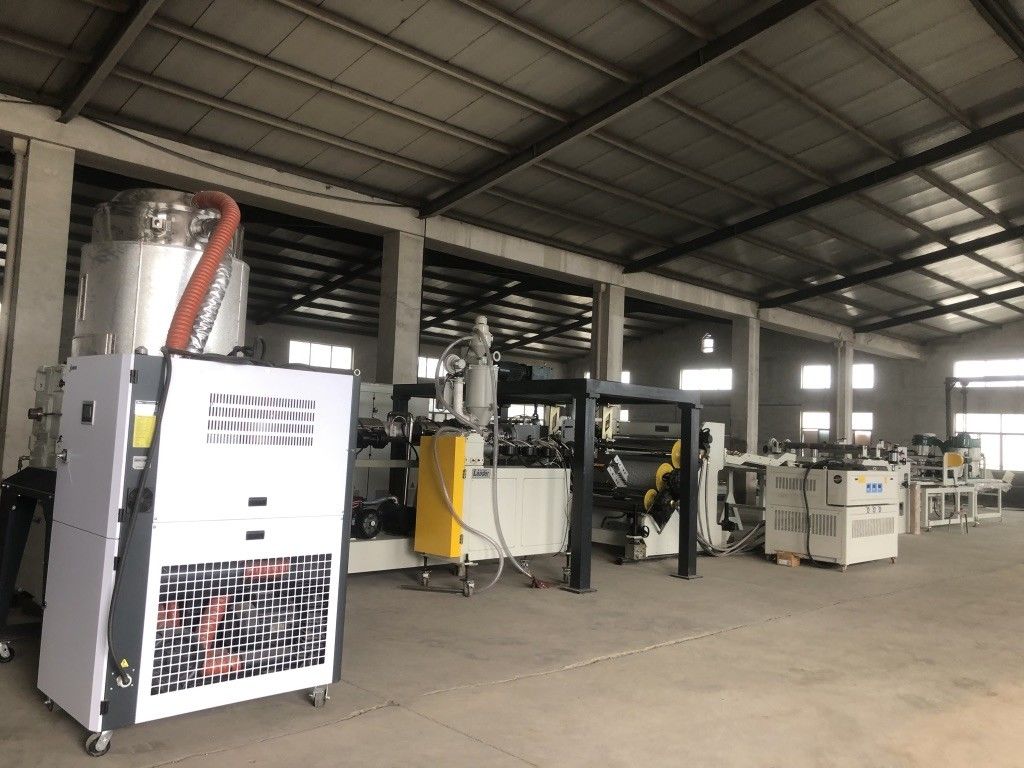

Polycarbonate PC PMMA Optic Sheet Extrusion Line 1220mm With 120mm Screw Diameter Extruder
Technical Parameter:
Main extruder Dia. | 120mm | 130mm |
Main screw L/D ratio | 35:1 | 38:1 |
Main extruder drive | 185kw | 250kw |
Co-extruder Dia. | 45mm | 45mm |
Co-extruder L/D ratio | 30:1 | 30:1 |
Co-extruder drive | 22kw | 22kw |
Thickness of sheet | 0.8-8mm | 1.5-10mm |
Width of sheet | 1000-1560mm | 1220-2100mm |
Output | ≥420kg/h | ≥600kg/h |
Power installed |
Description:
PMMA plate production line is widely used in both transparent and the Advertising building materials :
Garden, the recreation place, decoration and the corridor pavilion; Internal and external ornaments in
the commercial building, curtain wall of the modern urban building; transparent container of aviation,
the windscreen in front of the motorcycle, the plane, the train, the steamer, the submarine, army and
polices shield, the telephone booth, advertising signpost, the advertisement of the lamp houses, the
expressway and overhead way of the city partition protective screen.
