|Name:||250 - 450kw PMMA HIPS ABS Sheet Extrusion Line For Bathtub Sanitary Tubes||Material:||ABS HIPS PMMA|
|Product Width:||1200-2200mm||Product Thickness:||1-6mm , 2-8mm|
|Extruder:||Single Screw EXtruder||Max. Capacity:||600kg/h|
abs maker machine,
abs extrusion machine
250 - 450kw PMMA HIPS ABS Sheet Extrusion Line For Bathtub Sanitary Tubes
Width of 2100mm ABS HIPS PMMA Refrigerator Plate , Sanitaryware Plate Extrusion Line
Production Line Compotents:
This line is specially designed to produce ABS/PMMA co-extruded sheets/boards, which posses the features of not only the strongly impact resistance of ABS, but also the high gloss and rigidity of PMMA; has good molding vacuum, high temperature and low temperature resistant, wear resistance, corrosion resistance and good mechanical processing of performance;
Widely used for bathtub, sanitary board, shower room, wash basin, steam room, etc.
Double layers refrigerator sheet: LMSB-120/65, (ABS+PMMA)
Trilayers refrigerator sheet: LMSB-120/65/45,(ABS+PS+HIPS).

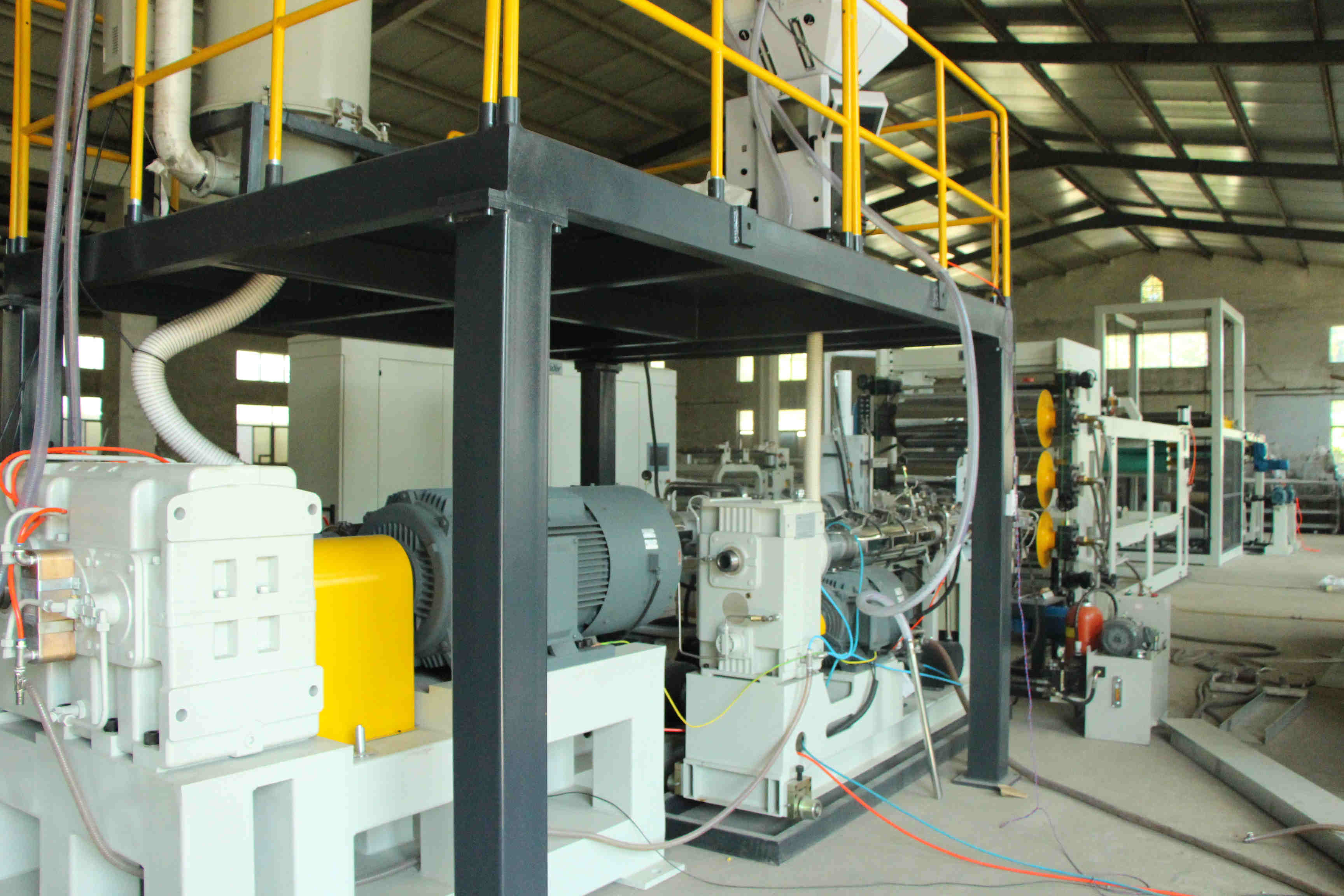

This line consists of : single screw extruders, co-extruder, hydraulic exchaning units,

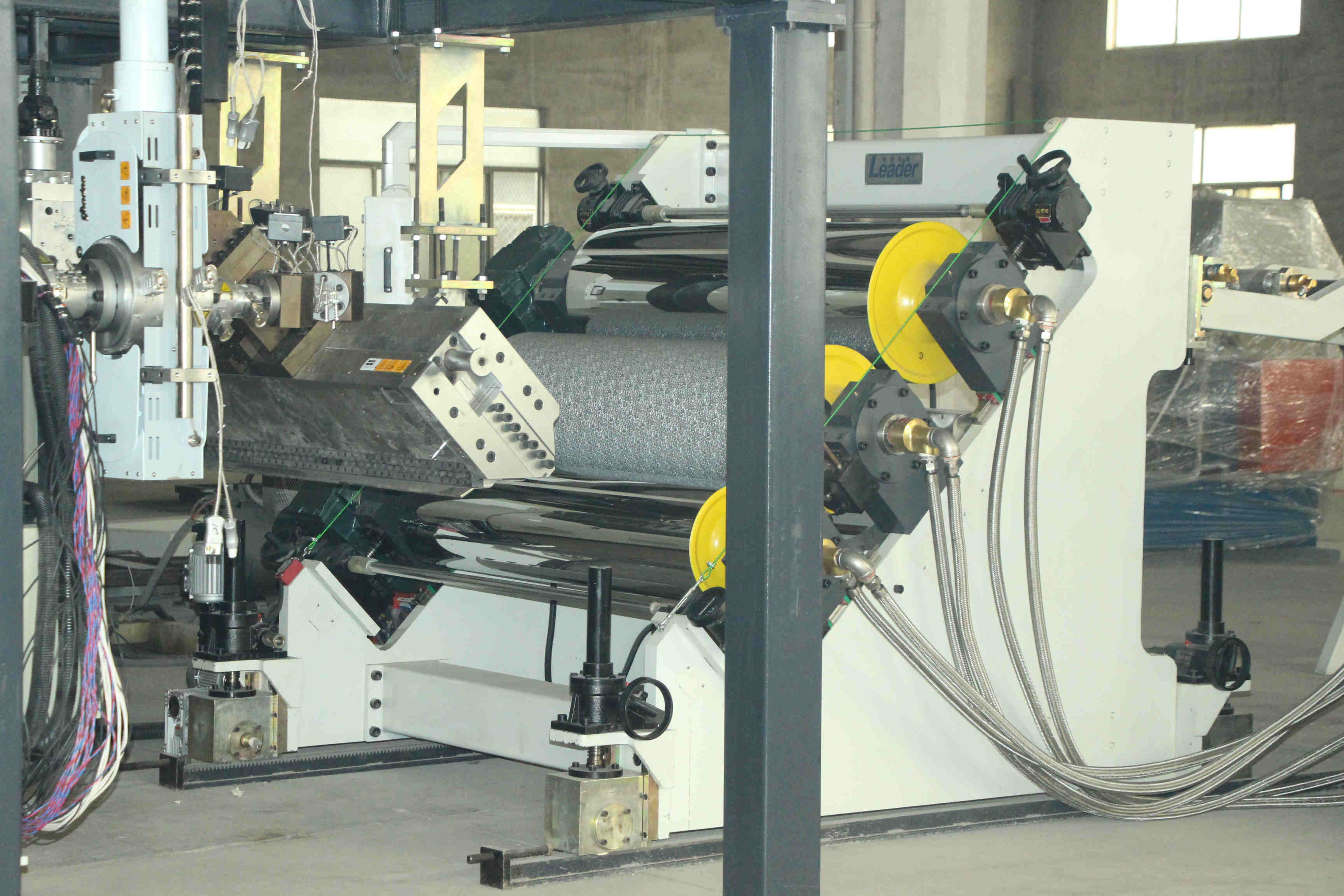

T-type die head, three roller calendars, cooling frame and edge cutting units, haul off machine,
cutter or winder, stacker etc.
|Extruder Model||LSJ-120/36, 65/33||LSJ-130/36, 75/33|
|Suitable material||ABS, PMMA||ABS, PMMA|
|Co-extrusion layer structure||A/B/C, A/B/A, A/B||A/B/A|
