| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader Machinery |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJ150/36-2 |
| Minimum Order Quantity: | 1 set |
| Price: | 800000USD |
| Packaging Details: | plywood pallet |
| Delivery Time: | 150 Working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 Sets / Year |
| Name: | HDPE LLDPE Geomembrane Waterproof Liner Extrusion Line High Efficiency High Speed | Material: | HDPE LLDPE |
|---|---|---|---|
| Width: | 2000-8000mm | Thickness: | 0.5-4mm |
| Max. Capacity: | 1000-1500kg/h | ||
| High Light: | pvc sheet extruder,pe extrusion line,pe extrusion machine |
||
6000mm Width HDPE Material Geomembrance Waterproof Sheet Extrusion Line
HDPE LLDPE Geomembrane Waterproof Liner Extrusion Line High Efficiency High Speed
LINE CONSISTS OF:

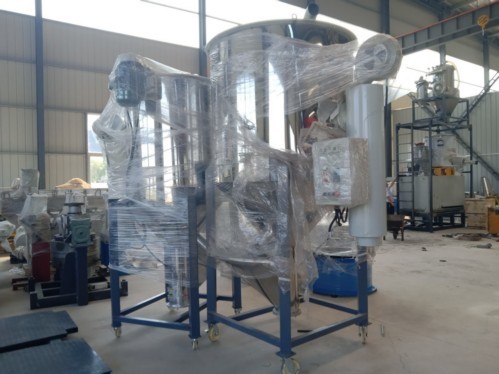

1) XAL-8002G Vacuum Feeding Machine 1 set
2) Dryer Hopper 500kg capacity 1 set
3) SJ-120/33 High efficiency single screw extruder with DC motor 160kw, 1 set
4) Hydraulic Exchaning unit 1 set
5) T-type die head, JC-times brand 1 set
6) Three Roller calendar with diameter 450mm 1 set
7) Temperature controller for calendaring system 1 set
8) Cooling frame and edge trimming unit 1 set
9) Haul off machine 1 set
10) Plastic cutting machine -guillotine 1 set
11) Pneumatic stacker 1 set
12) spare parts: 1set
HDPE Geocell is a new type of high-strength geosynthetics , which is popular in domestic and abroad . It is a kind of three-dimension network structure shapped by high-strength HDPE sheets through ultrasonic welding of high strength . Currently , it is being widely used in construction , such as highway , railway , bridge , dyke , etc .
SHEET SPECIFICATIONS:
| Material | PE | PE |
| Sheet thickness | 0.5-3mm | 0.5-3mm |
| Sheet width | 1000-4000mm | 5000-8000mm |
| No. | Item | Value | ||||||
| 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | ||
| 1 | Density (g/cm3) |
0.939 | ||||||
| 2 | Tensile properties | |||||||
| Yield strength (N/mm) |
11 | 15 | 18 | 22 | 29 | 37 | 44 | |
| Break strength (N/mm) |
20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| Yield elongation/% | 12 | |||||||
| Break elongation/% | ≥450 | |||||||
| 3 | Tear resistance/N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| 4 | Puncture resistance/N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| 5 | Stress crack resistance/h | ≥1500 |
||||||
