| Place of Origin: | Qingdao China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJ-150/35 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | plywood pallet |
| Delivery Time: | 100 Workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 Sets / Year |
| Name: | PP PE ABS Thick Plate Extrusion Line 2000*30mm | Material: | PE PP PVC ABS PVDF |
|---|---|---|---|
| EXtruder Type: | Single Extruder | Product Width: | 2000mm |
| Product Thickness: | 3-30mm | Max. Capacity: | 500kg/h |
| Application: | Plate | Condition: | New |
| Highlight: | sheet extruder machine,polyethylene extrusion machine |
||
PP PE ABS Thick Plate Extrusion Line 2000*30mm
PP PE PVC Thick Plate / Board Extrusion Line Making Machine Width of 2000mm
COMPONENTS OF THIS COMPLETE PLANT
| Item | Description | Data |
| 1 | Raw material vacuum feeding machine | 1 set |

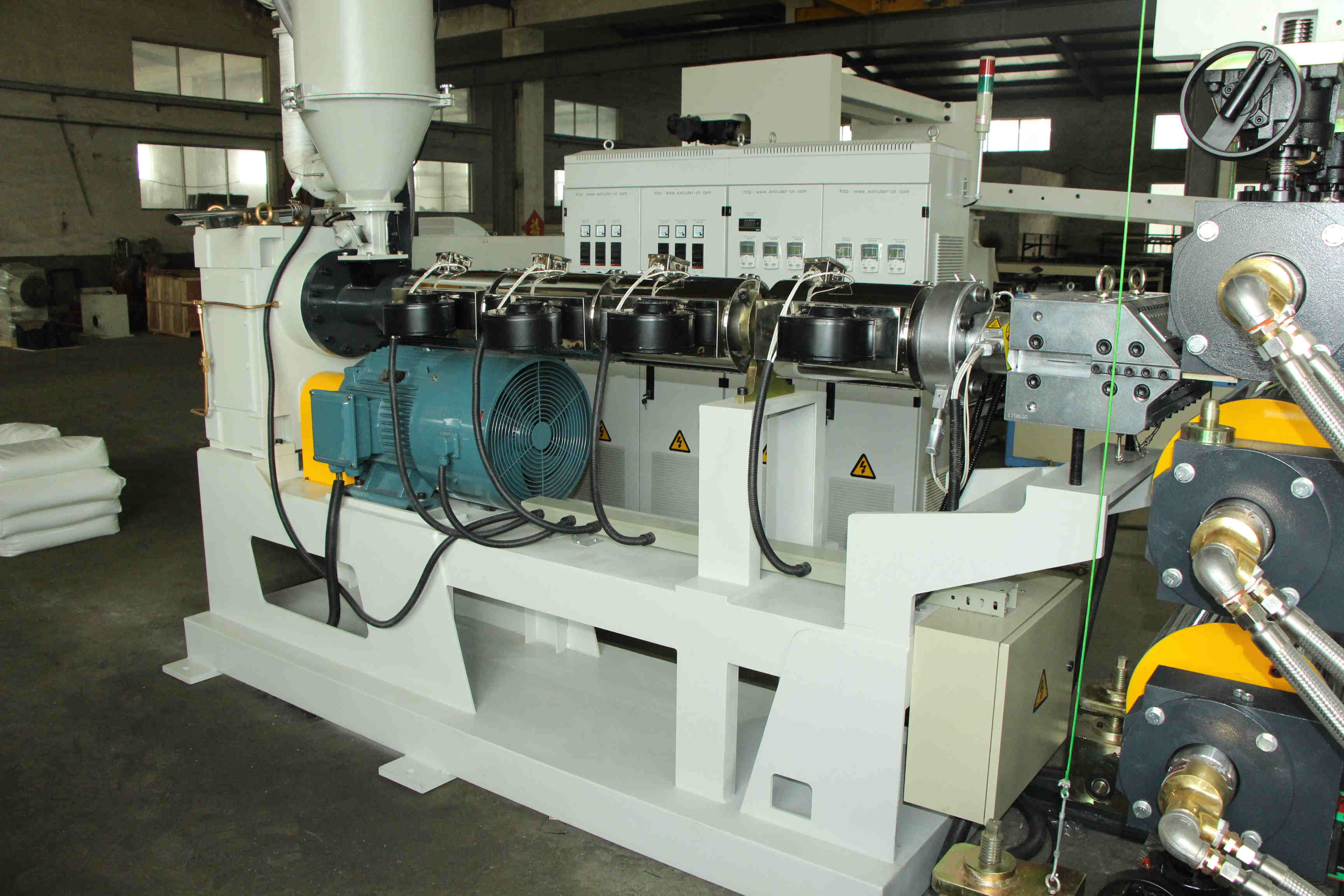

| 2. | High efficiency single screw extruder 150/33 with PLC control | 1 set |
| 3 | Hydraulic exchanging unit | 1 set |
| 4 | T-type die head-JC-times brand | 1 set |
| 5 | Three roller calendar-vertical type, alloy steel material | 1 set |
| 6 | Rollers theromocontrolling machine-oil circulation cooling | 1 set |

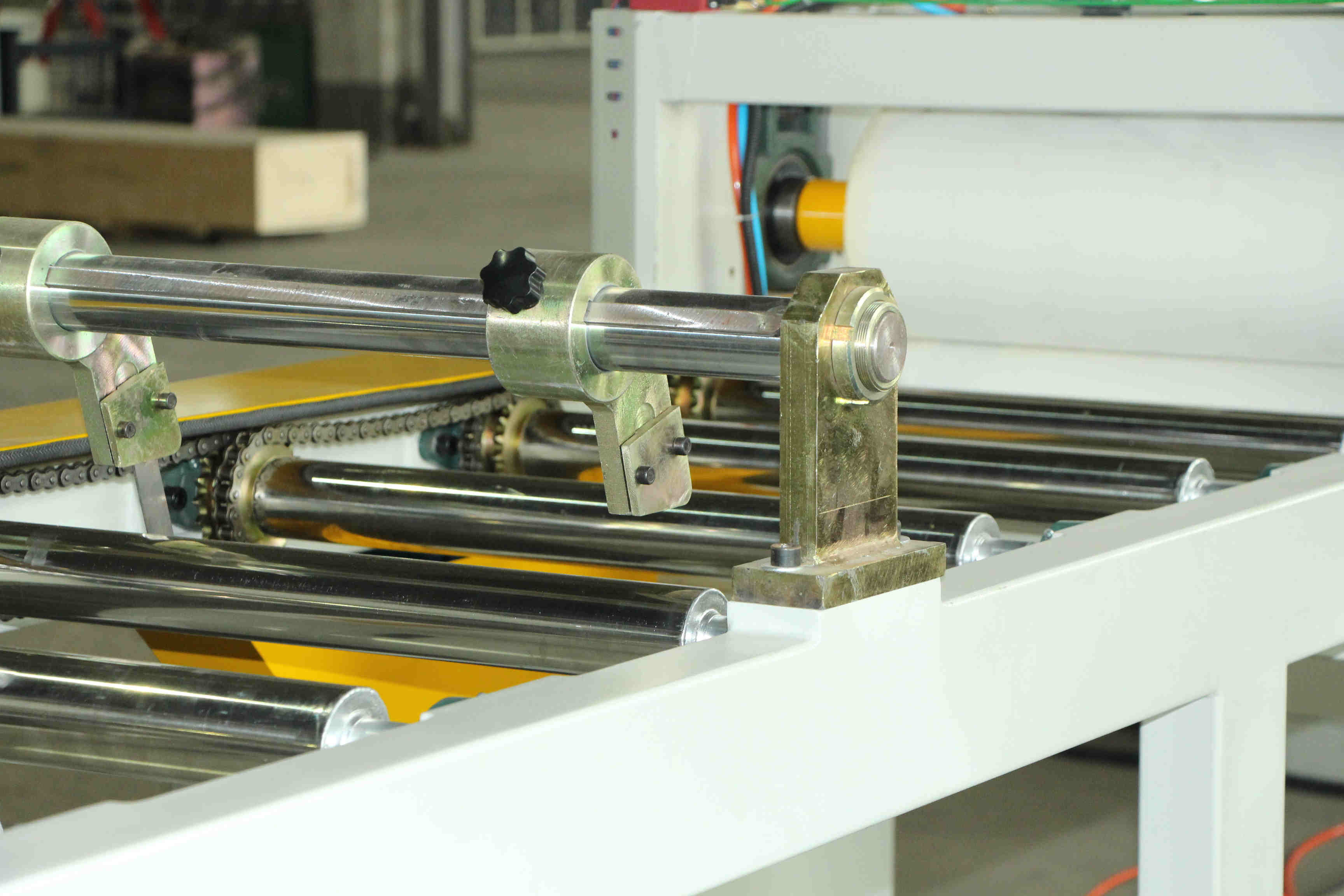

| 7 | Cooling frame/rollers conveyor | 1 set |
| 8 | Trimming units-cross saw cutting units | 1 set |
| 9 | Haul off machine-2 pieces of NBR rubber rollers | 1 set |
| 10 | Plastic cutting machine-guillotine and saw cutting machine | 1 set |
| 11 | Stacker | 1 set |
| 12 | Water chiller | 1 set |
| 13 | Electrical cabinet | 1 set |
APPLICATIONS:
The boards can be widely used in chemical industry (chemical containers), food industry(food containers),
construction industry (architecture boards), transportation industry, used as fishing tank, swimming pools
and can replace stainless steel and other material.
