| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJ65/33 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | plywood pallet |
| Delivery Time: | 75-90 Workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 15 Sets / Year |
| Name: | 1500mm ABS HIPS Refrigerator Plate ABS PMMA Sanitaryware Plate Extrusion Line | Material: | ABS HIPS PMMA |
|---|---|---|---|
| Product Width: | 1500mm | Product Thickness: | 1-8mm |
| Extruder: | Single Screw EXtruder | Max. Capacity: | 600kg/h |
| High Light: | abs maker machine,abs extrusion machine |
||
1500mm ABS HIPS Refrigerator Plate ABS PMMA Sanitaryware Plate Extrusion Line
SHEET SPCIFICATIONS:
1. Usual sheet width: 500, 600, 700, 900, 1020, 1200, 1300, 1400, 1500,
1700, 1800, 2100, 2200mm.
2. Usual sheet thickness: 0.2-2.0mm, 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm.
Production Line Compotents:
Double layers refrigerator sheet: LMSB-120/65, (ABS+PMMA)
Trilayers refrigerator sheet: LMSB-120/65/45,(ABS+PS+HIPS).

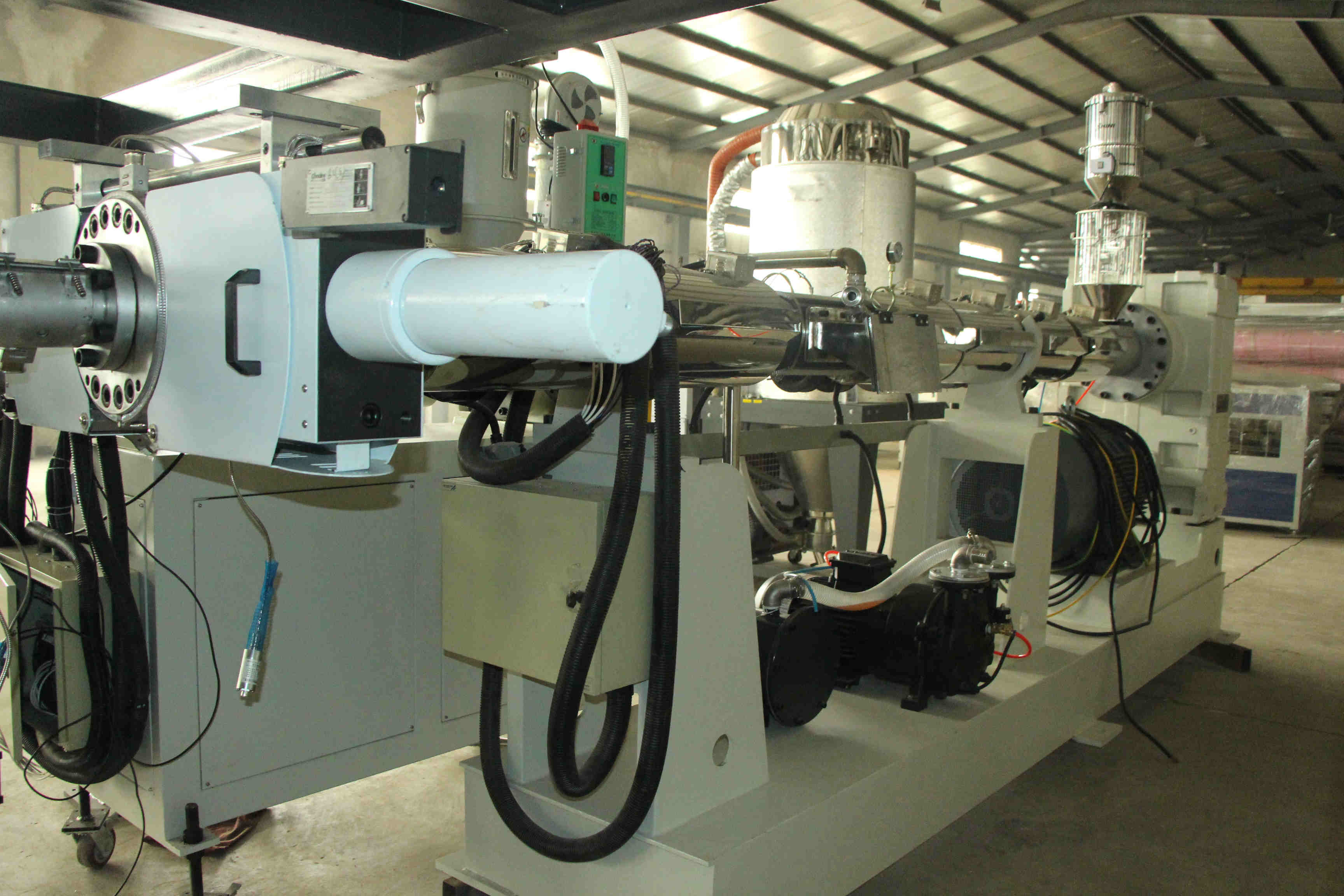

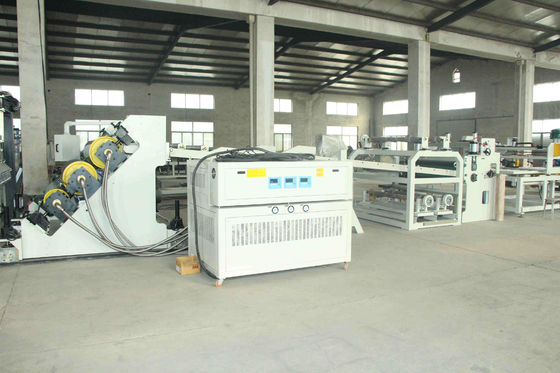

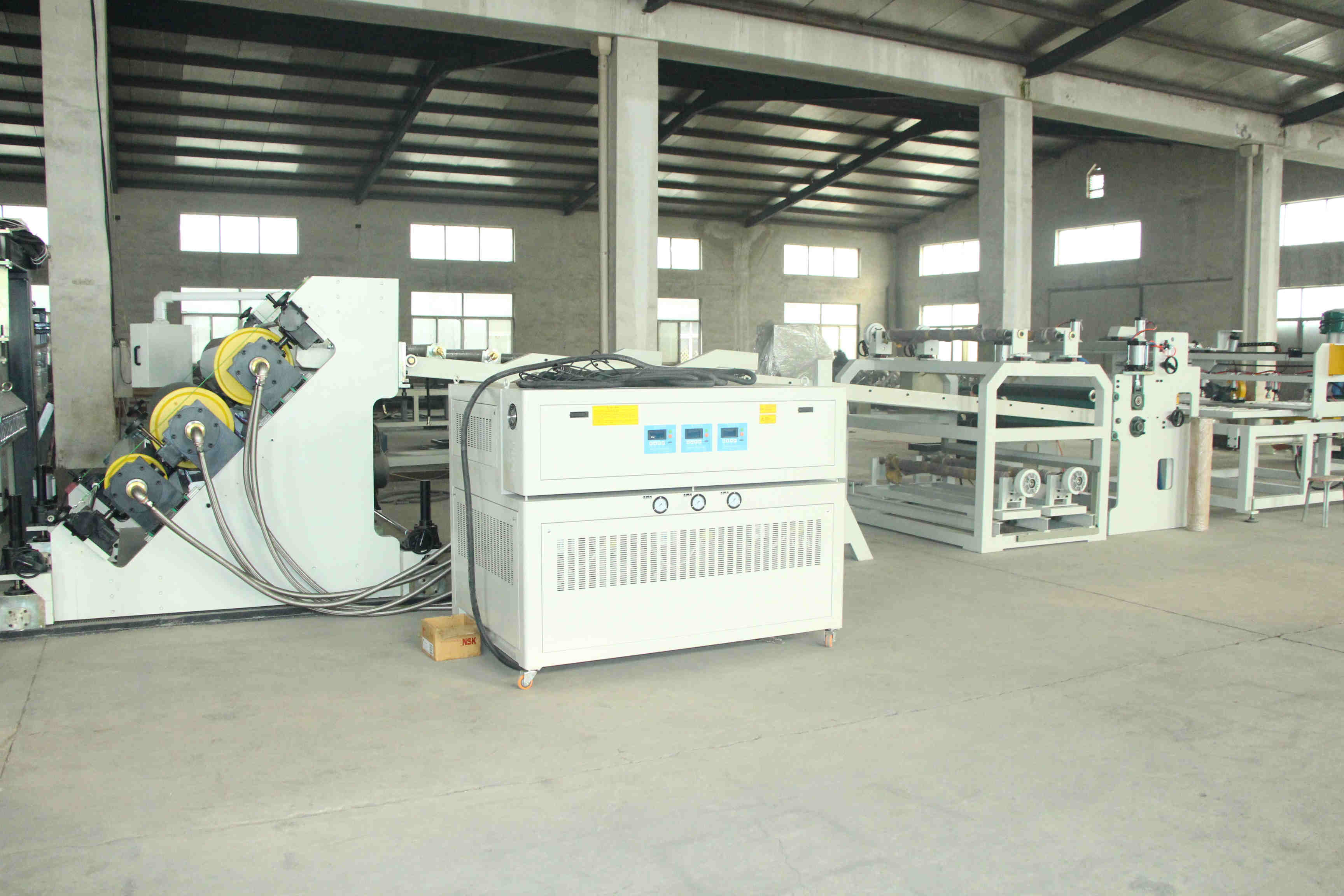

This line consists of : single screw extruders, co-extruder, hydraulic exchaning units,
T-type die head, three roller calendars, cooling frame and edge cutting units, haul off machine,
cutter or winder, stacker etc.
Technical Parameter:
| screw diameter | 90-180mm |
| screw L/D ratio | 35:1, 38:1 |
| Main extruder driving motor | 90-355kw |
| sheet width | 1220-2100mm |
| sheet thickness | 1-8mm |
| Max. capacity | 200-1100kg/h |
| Power installed | 250-450kw |
| Applicable material | ABS, HIPS |
