| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJ150 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | plywood pallet |
| Delivery Time: | 90-105 Workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 15 Sets / Year |
| Name: | HDPE Geomembrane Waterproof Sheet Extrusion Line Full Automatic Control System | Material: | PE PVC TPO |
|---|---|---|---|
| Width: | 6000mm | Thickness: | 0.5-3mm |
| Sheet Density: | 0.939g/cm3 | Max. Capacity: | 500-1000kg/h |
| High Light: | pvc sheet extruder,pe extrusion line |
||

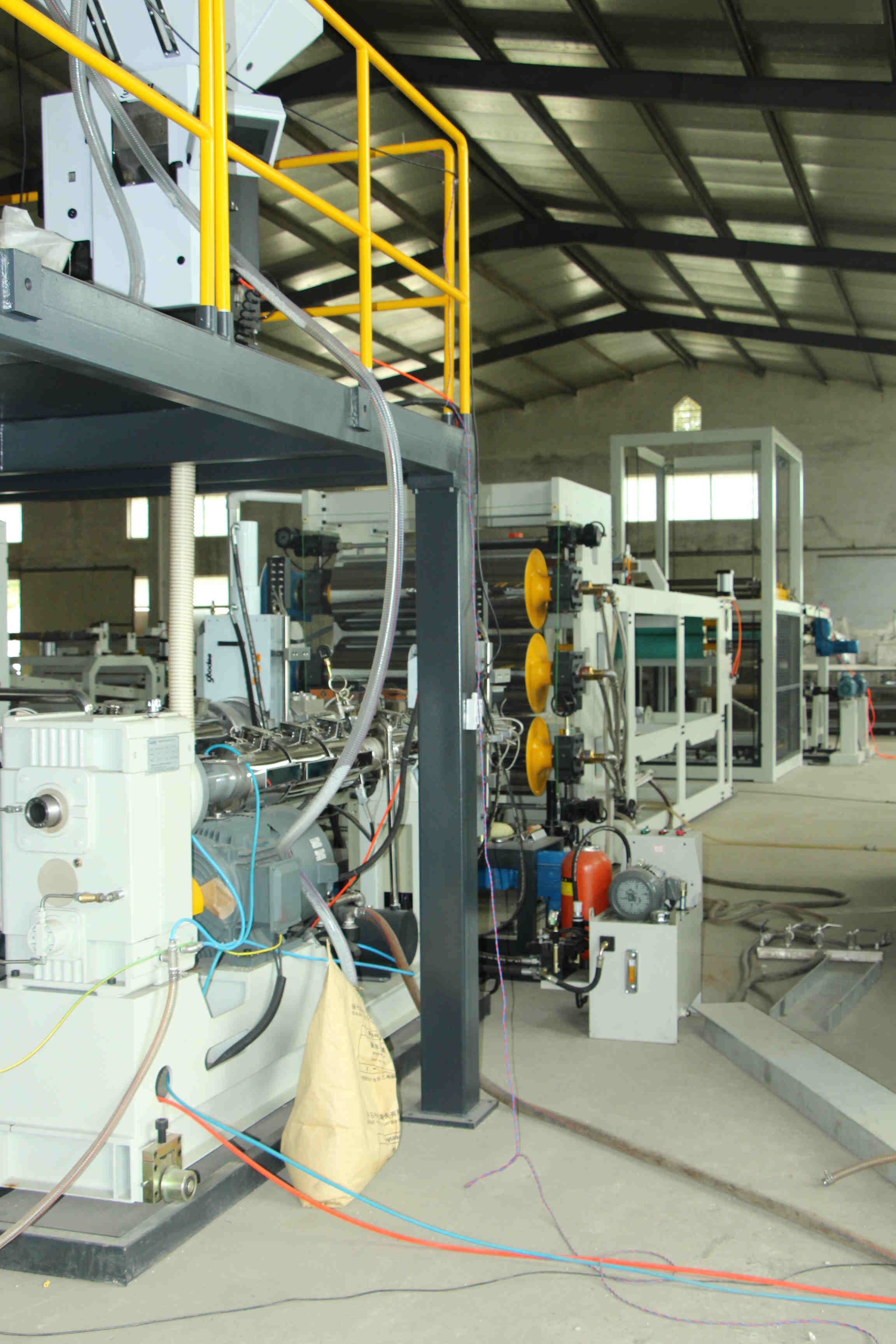

HDPE Geomembrane Waterproof Sheet Extrusion Line Full Automatic Control System
5000mm Width HDPE Material Geomembrance Waterproof Sheet Extrusion Line
HDPE/LLDPE Geomembrane Extrusion Line (2000-8000mm width )
PE waterproof sheet is also known as polyethylene polypropylene composite sheets.
It is a new type of composite waterproof sheet which is extruded and laminated in
one process by sheet extrusion line added with anti-aging agent, stabilizer, binder,
and together with high strength non-woven fabric etc.
SHEET SPECIFICATIONS:
| Material | PE | PE |
| Sheet thickness | 0.5-3mm | 0.5-3mm |
| Sheet width | 1000-4000mm | 5000-8000mm |
| No. | Item | Value | ||||||
| 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | ||
| 1 | Density (g/cm3) |
0.939 | ||||||
| 2 | Tensile properties | |||||||
| Yield strength (N/mm) |
11 | 15 | 18 | 22 | 29 | 37 | 44 | |
| Break strength (N/mm) |
20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| Yield elongation/% | 12 | |||||||
| Break elongation/% | ≥450 | |||||||
| 3 | Tear resistance/N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| 4 | Puncture resistance/N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| 5 | Stress crack resistance/h | ≥1500 |
||||||
