| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJ-120 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | plywood pallet |
| Delivery Time: | 90 Workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 Sets / Year |
| Name: | PMMA GPPS PETG Light Guide Light Diffusion Sheet Extrusion Line 1220*1-4mm | Material: | PETG PMMA GPPS |
|---|---|---|---|
| Extruder: | Single Screw Extruder | Product Width: | 1220mm |
| Product Thickness: | 1-4mm | Max. Capacity: | 400kg/h |
| Color: | Blue-Green | ||
| High Light: | pet sheet production line,pet extrusion line |
||

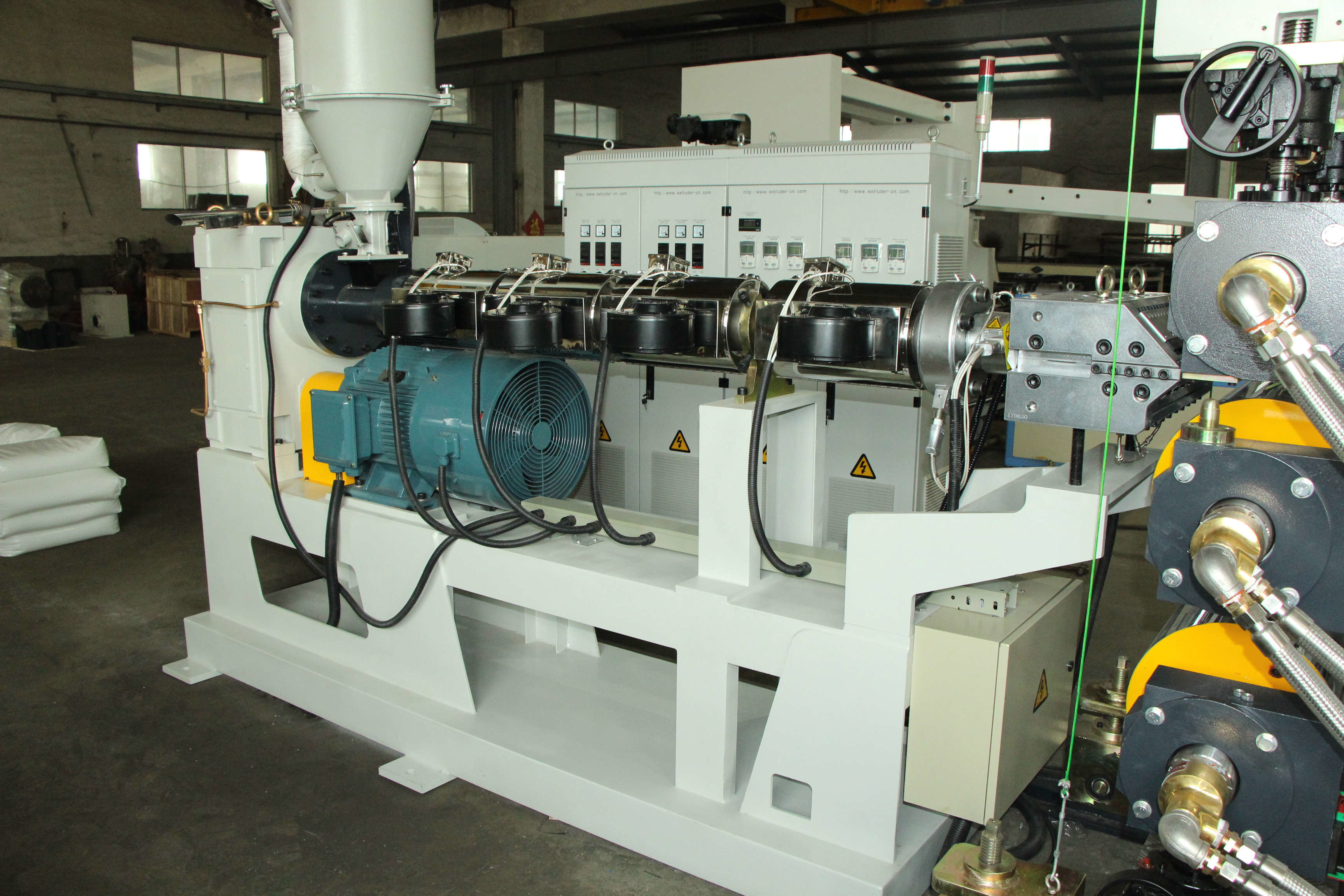

PMMA GPPS PETG Light Guide Light Diffusion Sheet Extrusion Line 1220*1-4mm
Sheet Specifications:
Thickness: 1mm-4mm
Width range: 1220mm
Length: Any dimension.
Color: Clear, blue, green, opal, brown, blue green etc.
Sheet structure: single layer or co-extrusion layers ABA type with UV coating on both sides.
Main Technical Parameters:
| Main extruder Dia. | 120mm | 130mm |
| Main screw L/D ratio | 36:1 | 38:1 |
| Main extruder drive | 185kw | 250kw |
| Co-extruder Dia. | 45mm | 45mm |
| Co-extruder L/D ratio | 30:1 | 30:1 |
| Co-extruder drive | 22kw | 22kw |
| Thickness of sheet | 0.8-8mm | 1.5-10mm |
| Width of sheet | 1000-1560mm | 1220-2100mm |
| Output | ≥420kg/h | ≥600kg/h |
| Power installed | 380kw | 520kw |
